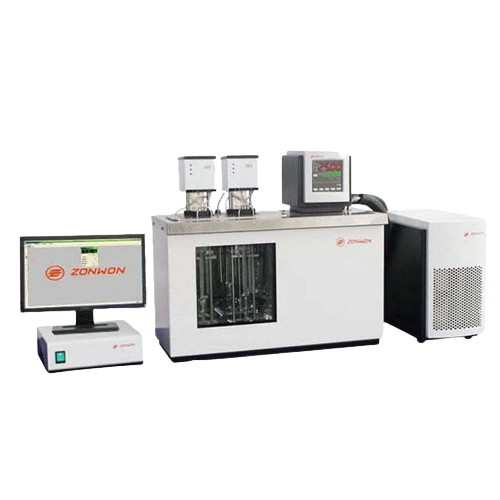

This advanced viscometer is tailored for the manufacturing industry, offering precise viscosity measurement capabilities with a range from 0.3 to 100,000 mm²/s (MPa·s). Designed for robust performance, it features a temperature accuracy better than ±0.01℃, ensuring reliable results. Certified with ISO9001, SGS, CTI, and ROHS, it adheres to the highest quality standards.

Specifications:

• Model: Stainless steel construction
• Measurement Unit: 2 pieces
• Bath Volume: 12L
• Temperature Range: 5-95℃
• Temperature Fluctuation & Uniformity: ±0.01℃
• Heating Power: 1 kW, 220V
• Applicable Materials: PET, PS, SAN, PBT, PMMA, PCT, PA, PIB, TPU, PAM, PSU, PEN, PC, PLA, CA, PVC, SB, Chitin, PAN, TP, etc.

Key Features:

1. Intuitive Display: The system displays the running status of each measurement unit and can control up to 6 units simultaneously.
2. Automated Operation: Once started, the system performs continuous automated testing until completion, eliminating the need for constant supervision.
3. Intelligent Diagnostics: The system intelligently diagnoses data for enhanced accuracy.
4. Multi-Concentration Functionality: The viscometer supports multi-concentration serial extrapolation methods.
5. Secure Data Management: Operate according to different authority levels, with original data encryption to comply with experimental data management regulations.

Measurement Methods:

• One Point/Single Concentration Method: Quickly determine intrinsic viscosity using a single concentration, compatible with the IVS300 series system.
• Malone, Martin, Bill Moyer, Schulz-Blaschke, Solomon-Ciuta Methods
• Multi-Concentration Linear Extrapolation Method

Product Highlights:

• Complies with ISO, ASTM, DIN, and GB standards, making it ideal for automatic Ubbelohde viscometer measurements.
• The system calculates a wide range of viscosity metrics, including kinematic, dynamic, relative viscosity, viscosity ratio, degree of polymerization, and viscosity-average molecular weight.
• Equipped with patented technology for automatic sample introduction, measurement, and online cleaning, this viscometer ensures data accuracy, improves testing efficiency, and enhances operator safety.

Advanced Functions:

1. Automatic Cleaning: Eliminates the need for manual cleaning, ensuring operator safety by preventing exposure to chemical reagents.
2. Damage Prevention: No disassembly required, reducing the risk of damage to the Ubbelohde viscometer.
3. Comprehensive Calculations: Automatically computes essential viscosity metrics, with all necessary design formulas pre-installed.
4. Data Analysis: Includes a data statistics function to analyze sample variation trends, providing essential data for product quality control.
5. Trend Extrapolation: Easily perform serial trend-extrapolation to enhance analysis.

• Warranty : 5 years
• Model Number : IVS300-2
• Power : Electronic
• Certificate : ISO CE SGS
• Standard : GB/DIN/ISO/ASTM
• Power supply : 1 KW,220V
• Measuring range : 0.3...50000 mm2/s(MPa.s)
• Temp Accuracy : Better than ±0.01℃
• Temperature range : 15-40℃
• Temperature fluctuation and uniformity : ±0.01℃
• Keywords : viscometer price
• Function : PET viscosity tester
