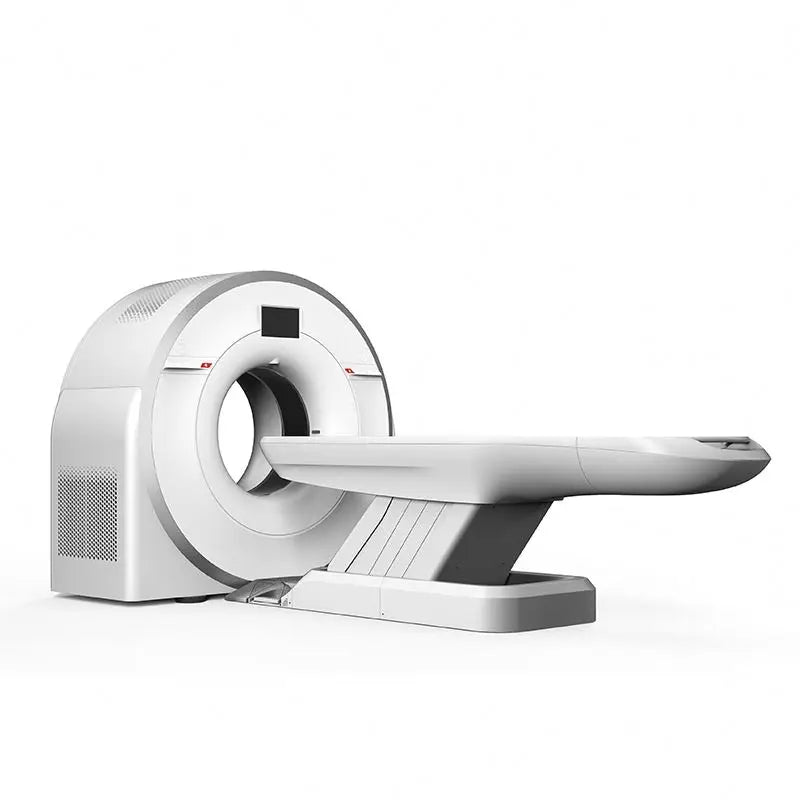

32 Slice CT Scanner – Advanced Medical Computed Tomography Machine

This high-performance CT Scanner delivers precise imaging with customizable data acquisition and low-dose usage. Designed for efficiency and accuracy, it offers both scout and axial scan modes, enabling technicians to pinpoint the target area while optimizing dose modulation.

Specifications:

• Data Acquisition & Scan Modes:

  • Scout Scan: Assists with accurate targeting of examination regions, minimizing radiation dose through Adose modulation
  • Axial Scan: Adjustable 360° rotation times of 0.75, 0.9, 1.0, 1.5, 2.0, and 3.0 seconds
  • Acquisition Mode: 8x0.55, 16x0.55, and 16x0.55 + 8x1.1 for flexible data collection
  • Reconstruction Slice Thickness: Options include 0.55mm, 1.1mm, 2.2mm, 4.4mm, and 8.8mm for detailed imaging

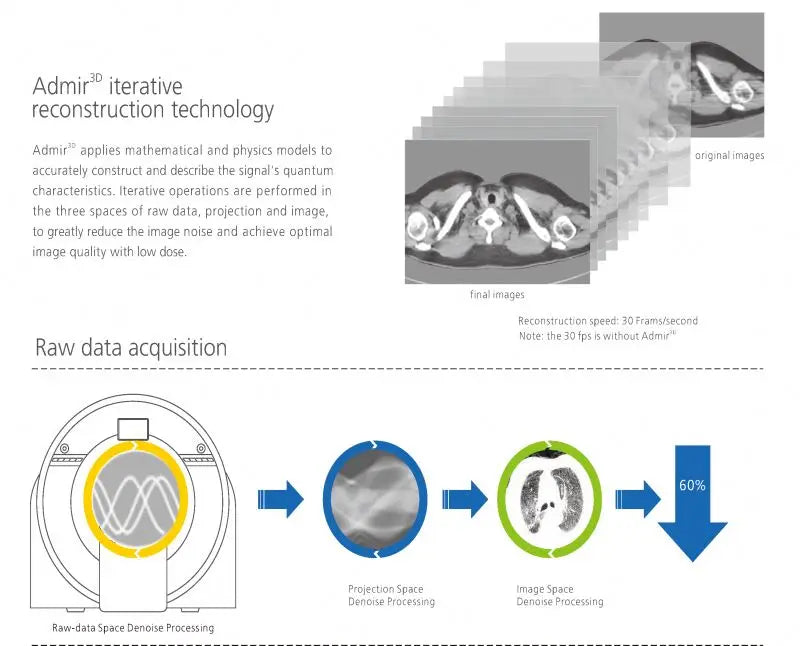

• Image Reconstruction:

  • Reconstruction Field of View (FOV): 10 – 500 mm for various body regions
  • Reconstruction Speed: 30 images per second for fast results
  • Matrix Options: 512x512, 768x768, and 1024x1024 for detailed image clarity
  • Display Matrix: 1024x1024 resolution for high-quality visual output
  • CT Value Range: -32,767 to 32,768 for versatile imaging needs

This CT scanner combines precision, speed, and safety, making it ideal for medical imaging in hospitals and diagnostic centers.
