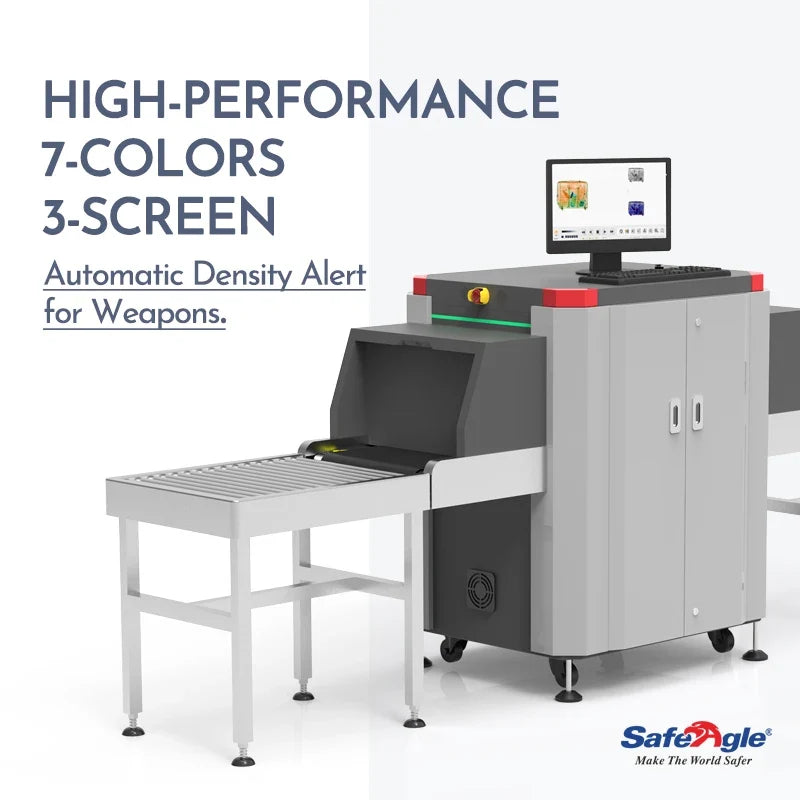

7-Color X-Ray Baggage Scanner for Luggage and Parcel Inspection

Ensure top-level security with the 7-Color X-Ray Baggage Scanner, designed to detect explosives, narcotics, and other dangerous materials in real-time. The advanced Z-scan technology highlights potential threats on the X-ray image, making it easier for operators to identify and respond quickly.

Key Features:

• 7-Color Display & Z-Scan: Enhances threat detection by marking hazardous materials in different colors.
• Radiation Safety: The system is engineered to limit radiation leakage to 1.0 μSv/hr or lower, ensuring operator safety with robust shielding and precise control.
• High-Resolution Display: Equipped with a 21.5" LCD monitor, offering a display resolution of 1280 x 1024 with 24-bit color for clear image analysis.
• Durable and Reliable: Built with a leaded rigid-steel tunnel and double-layer leaded curtains, ensuring maximum radiation control at the source.

Specifications:

• Tunnel Size: 624(W) x 429(H) mm
• Conveyor Speed: 0.23 m/s (45 ft/min) forward
• Display Type: 21.5" LCD Color Monitor
• Conveyor Load Capacity: 150 kg (evenly distributed)
• Voltage: 140KV
• Operating Temperature: 0°C - 40°C
• Tube Current: 0.7mA
• Humidity: Up to 95% non-condensing
• Cooling System: Sealed di-electric oil bath with forced air
• Power Requirements: 220VAC±10%, 50/60Hz, 10A Max
• Beam Direction: Diagonally upward
• Storage: 1 TB SSD with 4GB RAM
• Penetration: 32mm steel guaranteed
• Weight: 4900 lbs
• Certifications: SASO, SHARBER, CE, FCC, RoHS
• Warranty: 2 years
•


Additional Capabilities:

• Explosives & Narcotics Detection: Supported
• Film Safety: ISO 1600 (33 DIN) certified
• Conveyor Max Load: 330 lbs
• Wire Resolution: 38AWG

The Safeagle® X-Ray Inspection System offers a comprehensive and secure solution for baggage and parcel inspection, combining advanced detection technologies with safety and efficiency.

• Explosives & Narcotics Detection : Supported
• Conveyor speed : 0.23m/s
• Tunnel Size : 624(W)x429(H)mm
• Net Weight : 430KG
• Penetration : 32mm Steel Guarantee
• Certificate : SASO, SHARBER, CE, FCC, RoHS
• Conveyor Max Load : 330lbs
• Wire Resolution : 38AWG
• Film Safety : Guarantee ISO 1600 (33 DIN)
• Warranty : 2 Years
