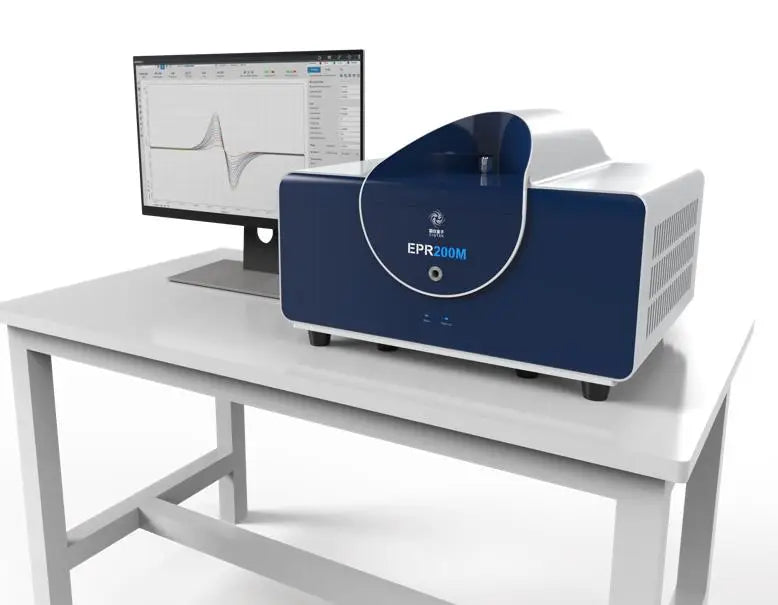

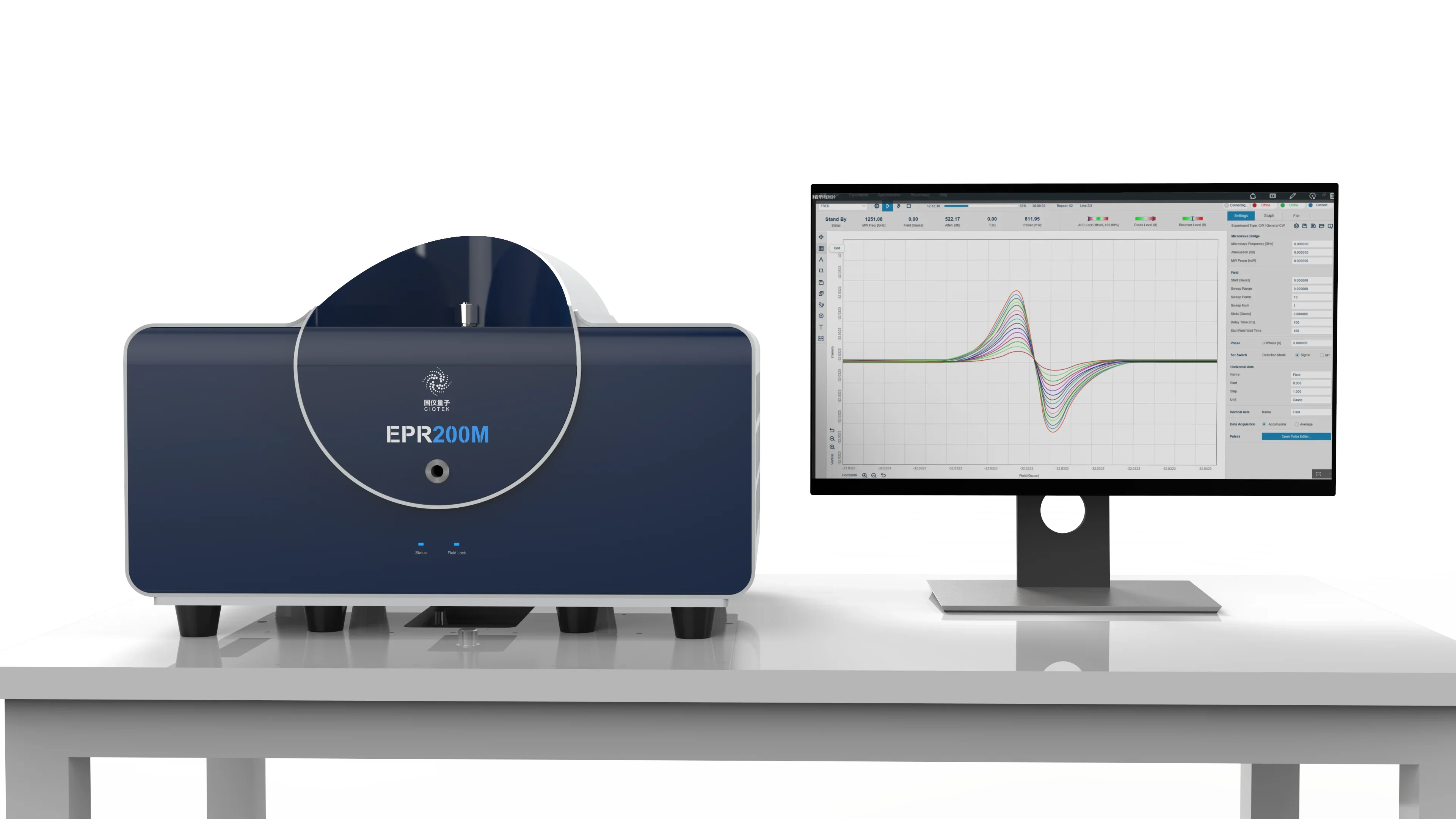

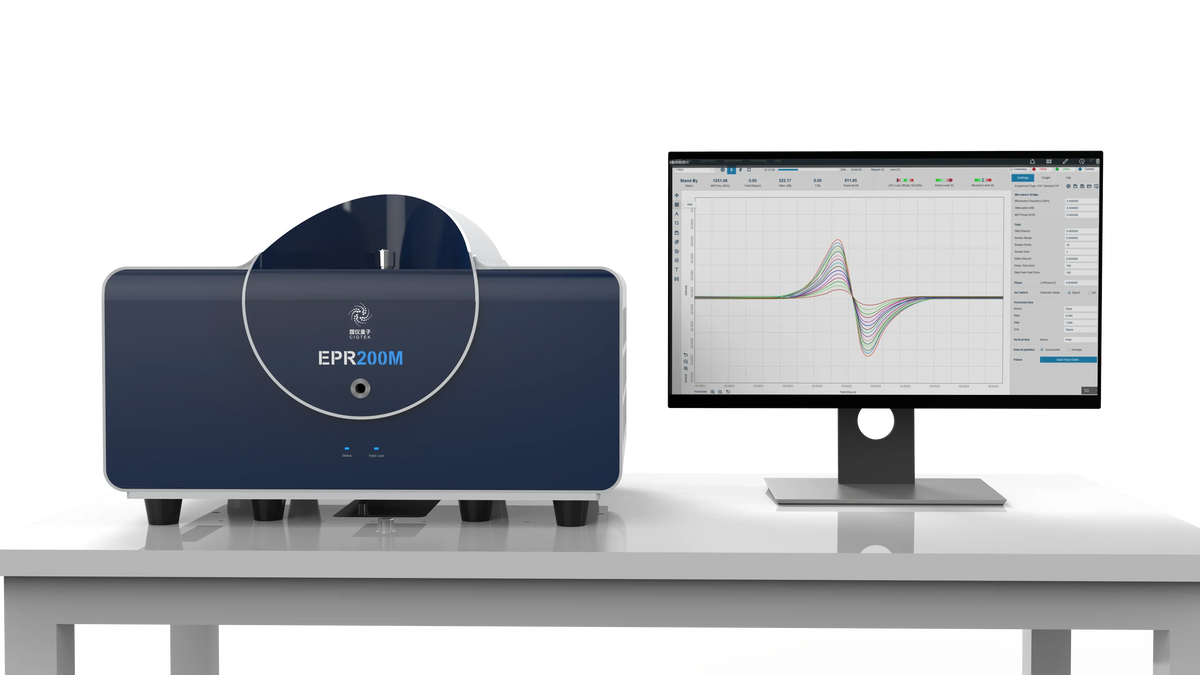

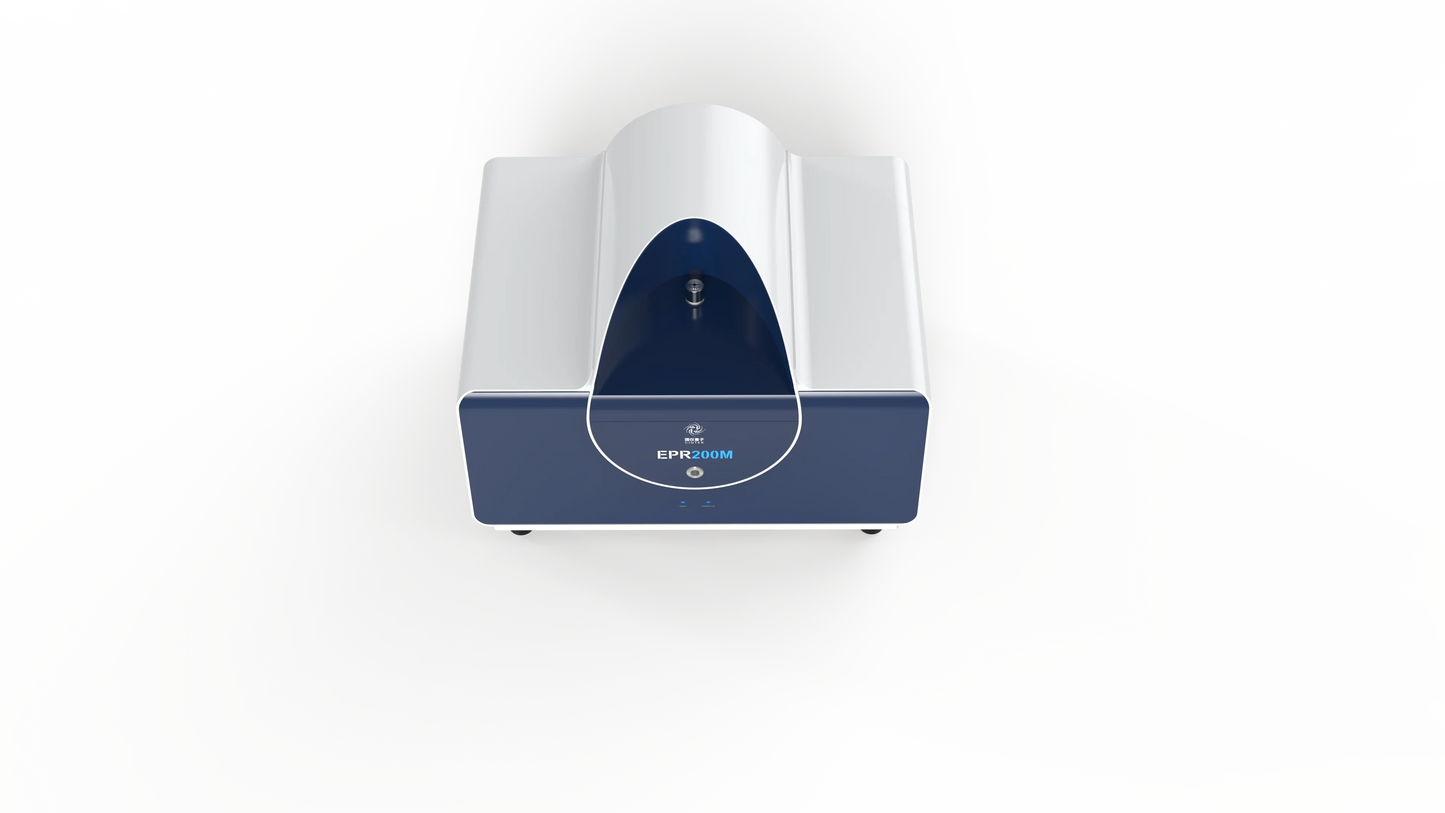

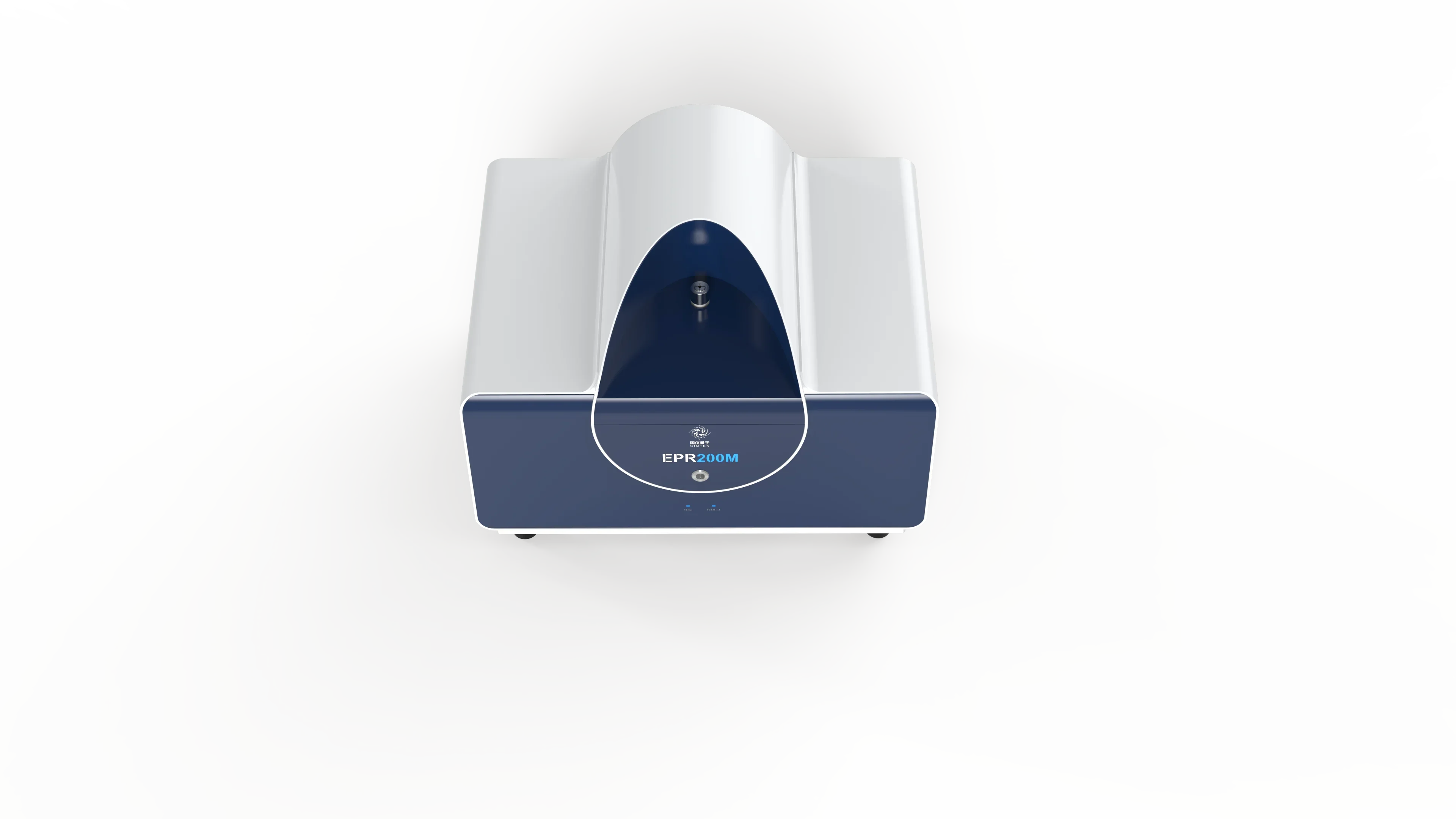

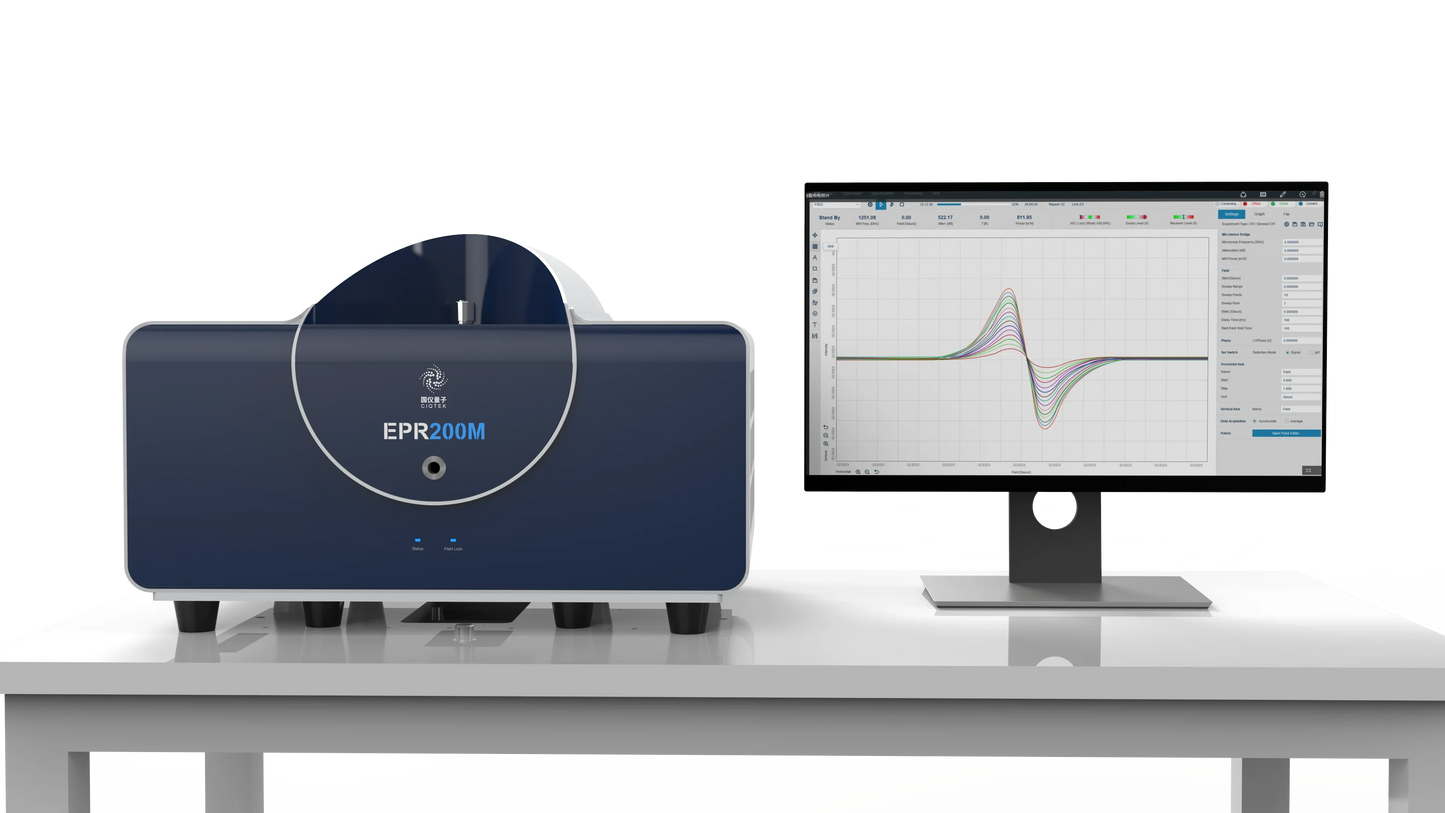

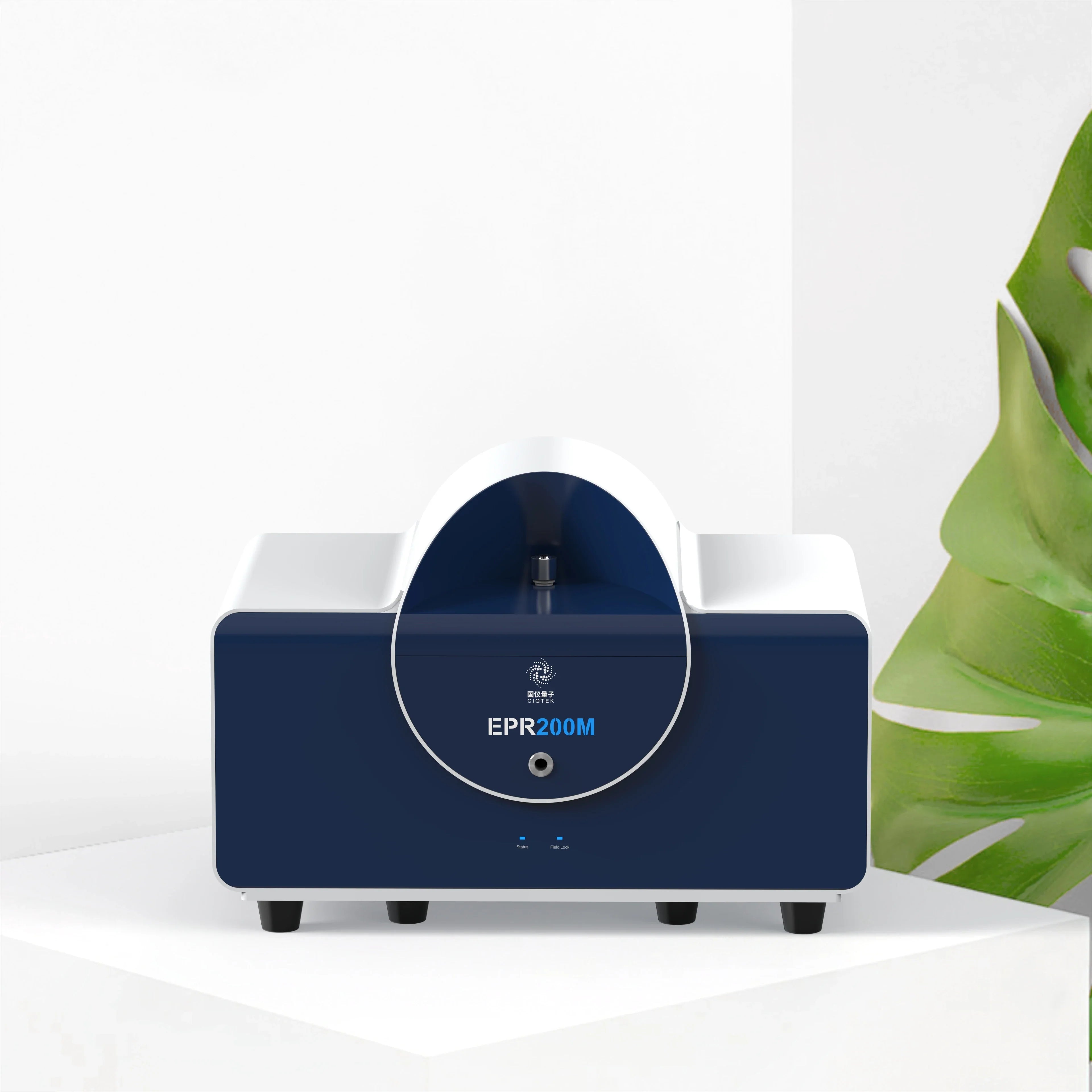

Experience precise X-band benchtop electron paramagnetic resonance (EPR or ESR) spectroscopy with our MEPR200M system. Engineered for high sensitivity and stability, it delivers an economical, low-maintenance solution ideal for both scientific researchers and industrial users alike.

Key Accessories:

• Liquid nitrogen variable temperature with cryostat
• 4 mm outer diameter sample tube
• Goniometer
• Light system
• Electrolytic cell
• Flat cell

Specifications:

• Frequency Range: 9.2-9.9 GHz
• CW Microwave Power: 1 uW~100 mW
• Absolute Spin Number Sensitivity: 5x10^9 spins/(G·√Hz)
• Modulation Field Amplitude: 10 Gauss Max
• Maximum Magnetic Field: 0.65T
• Magnetic Field Stability: Better than 10 mG/h
• Variable Temperature System: 100 K-475 K
• Light System: Supported
• Scan Speed: 10ms/P~5s/P
• g-value Standard Sample: Internal

Product Applications: Electron paramagnetic resonance is unparalleled in its ability to directly detect and study unpaired electrons. Widely applicable across various domains, it's indispensable in:

• Environmental Science: Monitoring air pollution, sewage treatment, heavy metals, and more.
• Chemistry: Researching coordination compound structures, catalytic reactions, free radicals, and chemical kinetics.
• Physics & Material Science: Investigating single crystal defects, magnetic properties, semiconductor conductors, and polymer characteristics.
• Biomedical Applications: Characterizing antioxidants, detecting nitrogen oxides, studying cancer treatment, and more.
• Industrial Usage: Assessing coating aging, cosmetic protection, diamond defects, and petrochemical control.
• Food Science: Measuring irradiation doses, preserving flavors, testing rancidity, and assessing antioxidants in food and beverages.

• Warranty :  1 Year

• Usage : Science Research
• Feature : Easy Operation
• Function : Lab Experimental Operation
• Advantage : High-resolution
