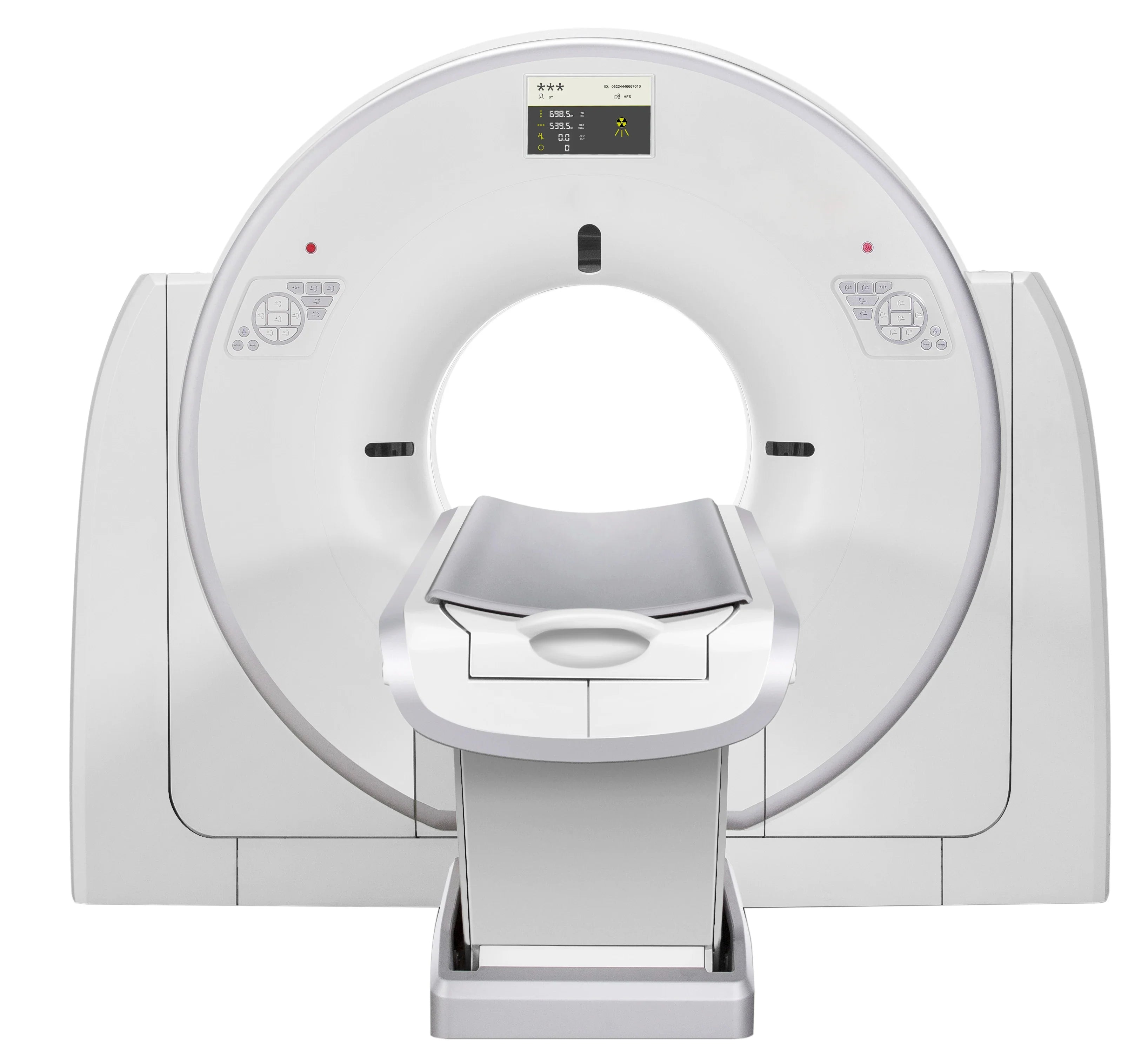

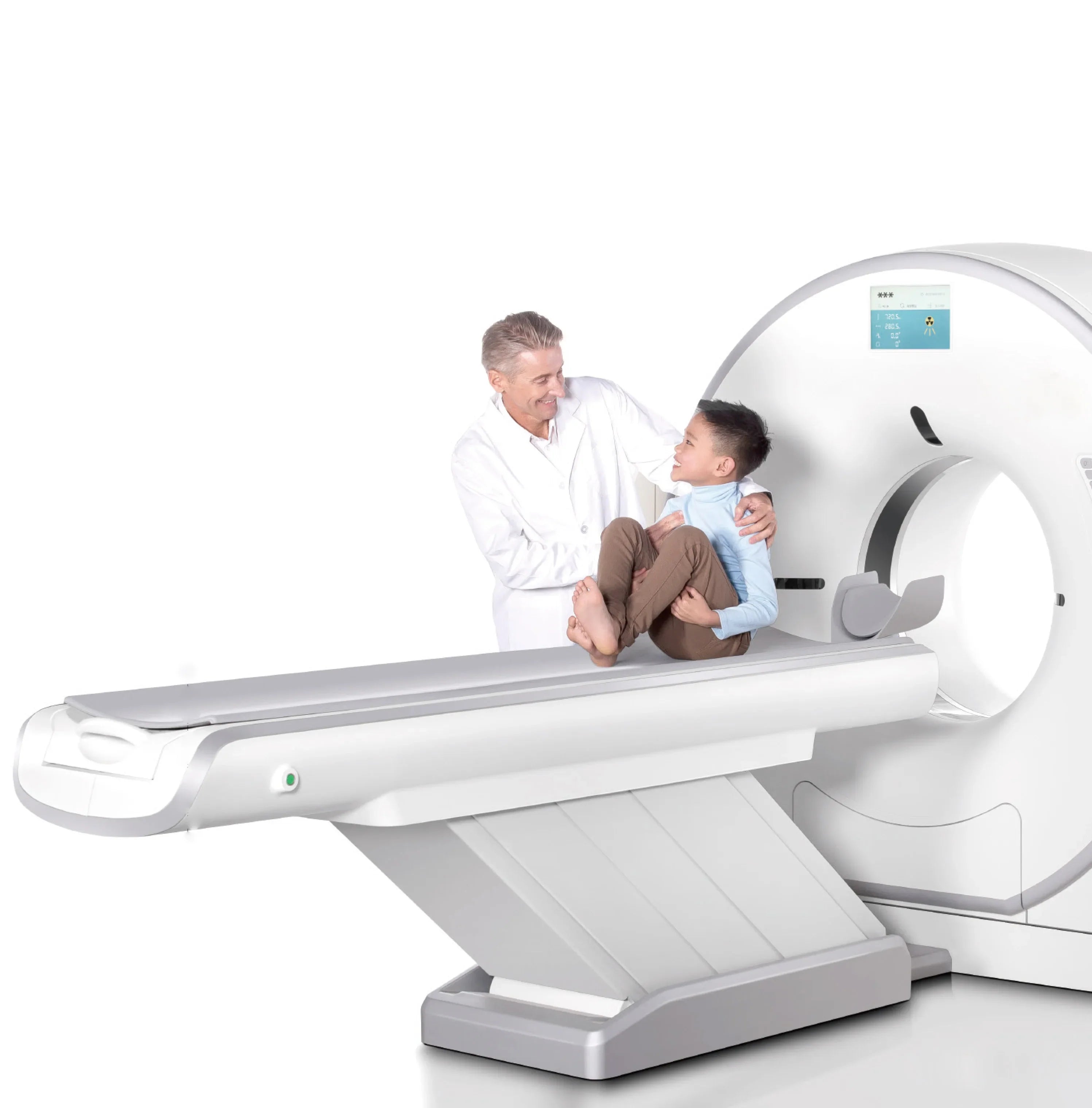

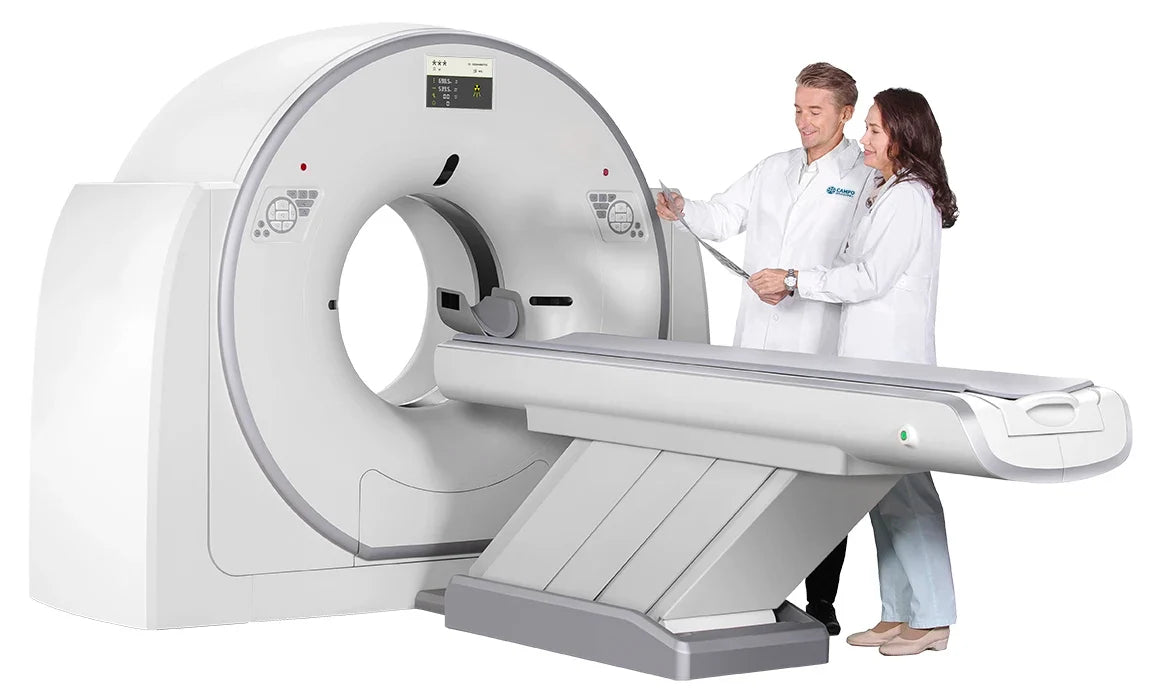

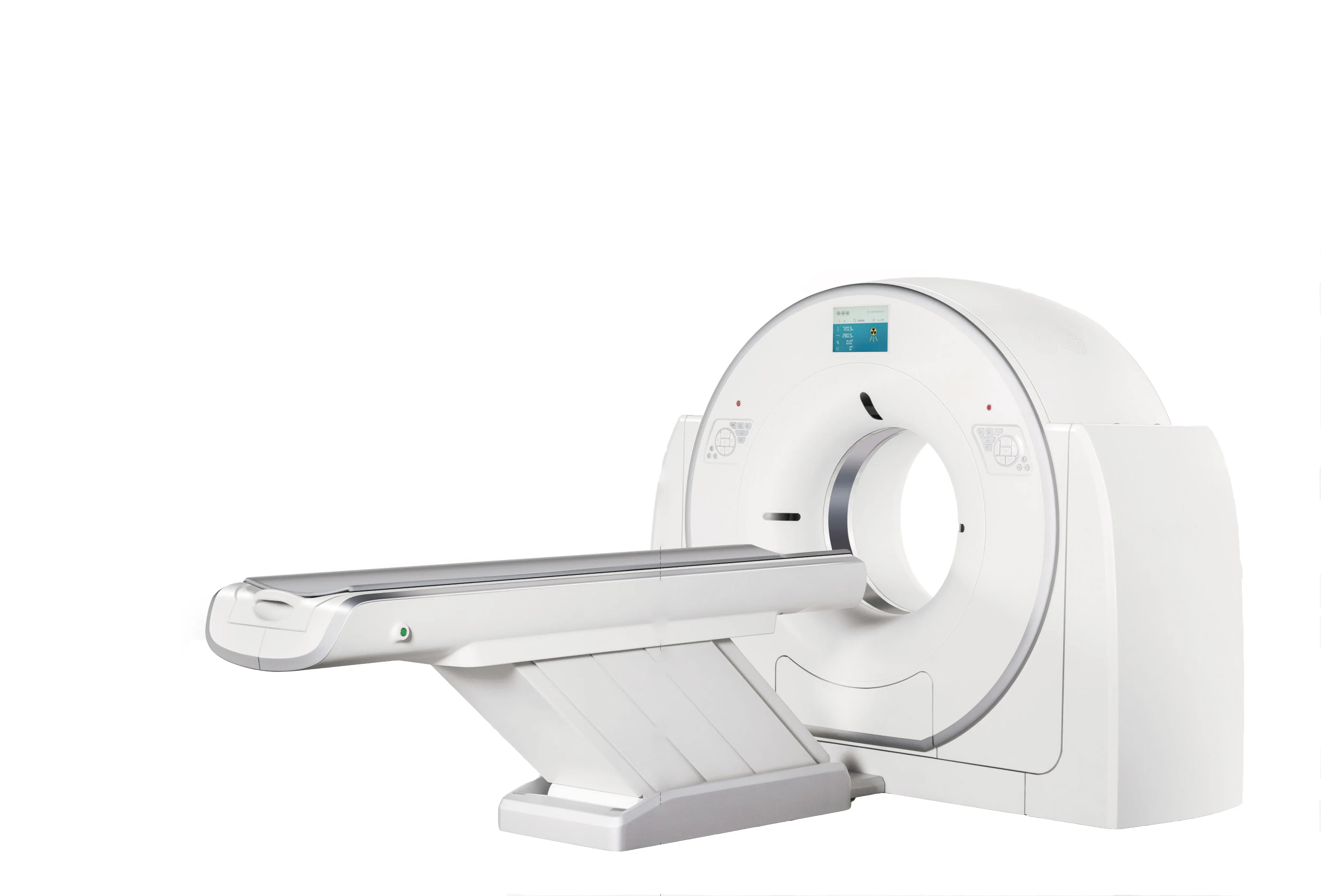

Advanced CT Scan Machine

The MSLCTX13 is an advanced medical CT scan machine designed for hospital use. With 128 slices and 64 rows, it provides high-resolution imaging for accurate diagnostics.

Below are the detailed specifications:

Gantry

• Slip Ring: Low-voltage slip ring
• Aperture Size: 715mm
• Tilt Angulation Range: ±30°
• Laser Positioning System: Includes sagittal, coronal, and cross-sectional positioning lines
• Scanning Collimation: 2x1.1mm, 8x0.55mm, 16x0.55mm, 16x1.1mm
• Sampling Rate: 1800 views/cycle
• Minimum Scan Time: 0.72s per 360°
• Maximum Field of View (FOV): 500mm
• Data Transmission Mode: Digital
• Cooling Method: Air cooling heat dissipation

Detector

• Type: GOS ceramic solid detector
• Number: 888x64
• Rows: 64
• Channels per Row: 888
• Thickness per Row: 0.55mm

X-ray System

• Focal Point: Bifocus
• Focal Spot Size: 0.7mm x 0.8mm, 1.2mm x 1.4mm
• Heat Storage Capacity: 3.5 MHu
• Max Anode Cooling Rate: 8750W (12250 HU/sec)
• Tube Life: 100,000-second exposure
• Output Voltage Range: 60kV to 140kV
• Max Output Current: 350mA
• Max Power: 42kW
• Max Continuous Exposure Time: 100s

Scanner Table

• Horizontal Movement Range: 0 ~ 1725mm
• Maximum Scan Range: 1650mm
• Maximum Horizontal Speed: 300mm/s
• Repetitive Positioning Accuracy: ±0.25mm
• Vertical Range: 450mm minimum, 470mm lift range
• Maximum Load Capacity: 205kg

Scanning and Image Reconstruction

• Scan Modes: Tomoscan, Helical Scan, Precision Tomoscan, Dual Energy Scan (optional)
• Minimum Image Thickness: 0.275mm
• Reconstruction Matrix: Up to 1024x1024
• Maximum Continuous Scan Length: 1650mm
• Field of View (FOV): Up to 500mm
• Spatial Resolution: 16.6LP/cm @ MTF10%, 21LP/cm @ MTF0%
• Low Density Resolution: 4.0mm @ 0.3%
• CT Value Display Range: ±16383
• Display Gray Scale: 256, 24-bit color
• Iterative Reconstruction: P-IR dual-domain iterative de-noising reconstruction technology provided

This comprehensive and high-performance CT scan machine ensures precise diagnostics with advanced imaging capabilities. Ideal for hospitals looking to enhance their medical imaging services.

• Power Source : Electricity
• Warranty : 10 Year
• After-sale Service : Online technical support
• Material : Metal
• Shelf Life : 12 years
• Slip Ring : Low-voltage slip ring
• Aperture Size : 715mm
• Tiltangulation Rang : ±30°
• Scanning Collimatio : 2x1. 1mm;8x0.55mm;16x0.55mm;16x1. 1m m
• Sampling Rate : 1800 view/ cycle
• Min Scan Time (s/360°) : 0.72s
• Max FOV (Field of View) : 500mm
• Detector Type : GOS ceramic solid detector
• Detector Number : 888x64
• Focal Spot Size : 0.7mmx0.8mm; 1.2mmx1.4mm
