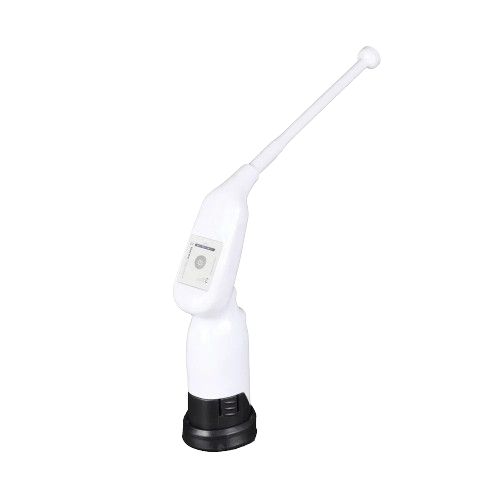

Hospital Gynecologist Coagulation Thermocoagulator

Advantages:

1. Portable and Lightweight Design: Easy to carry and maneuver.
2. Quick Heating Probes: Exchangeable probes heat up in just 8 seconds.
3. Rapid Cervical Thermal Ablation: Performs therapy in 20 seconds at a default temperature of 100°C.
4. Autoclaveable Probes: Available in 16mm flat, 19mm flat, and 19mm pointed tip.
5. Battery-Powered: Operates without tether wires or cables, enhancing mobility.
6. No External Power Supply Needed: Self-sufficient for treatment sessions.
7. Automated Procedure Timing: Equipped with visual and audible indicators, eliminating the need for a watch or clock.

Device Parameters:

• Treatment Cycle:
  • 8 seconds heat up
  • 20 seconds therapy at 100°C
  • 10 seconds cool down
• Power Supply: 11.1 VDC
• Battery Pack: Rechargeable Lithium-Ion, 3-cell 2AH, with BMS overcharge protection
• Battery Charger:
  • Input: 100 - 240 VAC, 1.0A, 50-60Hz
  • Output: 12.6VDC, 1.8 amp
  • Charge Time: 2 hours
• Full-Charge Activation: Until low-battery indicator illuminates
• Power Output: 30 Watts

Dimensions and Weight:

• Width: 1.5 inches (4 cm)
• Height: 8 inches (20 cm)
• Depth: 2 inches (5 cm)
• Weight: 11 oz (240 g)

Operating Conditions:

• Ambient Temperature: 16°C to 45°C
• Relative Humidity: 0% to 80% non-condensing

Configuration:

• Probes:
  • 19mm Flat Probe (QTY 2)
  • 19mm Nippled Probe (QTY 1)
  • 16mm Flat Probe (QTY 1)
• Batteries:
  • 12v Battery (QTY 2)
  • 12v Battery Charger (QTY 1)
• Accessories:
  • Hard Carry Case (QTY 1)
  • Instructions for Use (QTY 1)

• Warranty : 1 Year
• Nippled Probe : 19mm
• Flat Probe 2 : 16mm
• Treatment (Duty) Cycle : about 8 seconds of heat up
• Charge Time : 2 hours
• Cool down : about 10 seconds of cool down
• Full-Charge Activation : Until low-battery indicator illuminates
• Flat Probe 1 : 19mm
• Therapy : 20 seconds of therapy at 100°C
• Power Output : 30 Watts
• Battery Pack : Rechargeable Lithium-Ion
