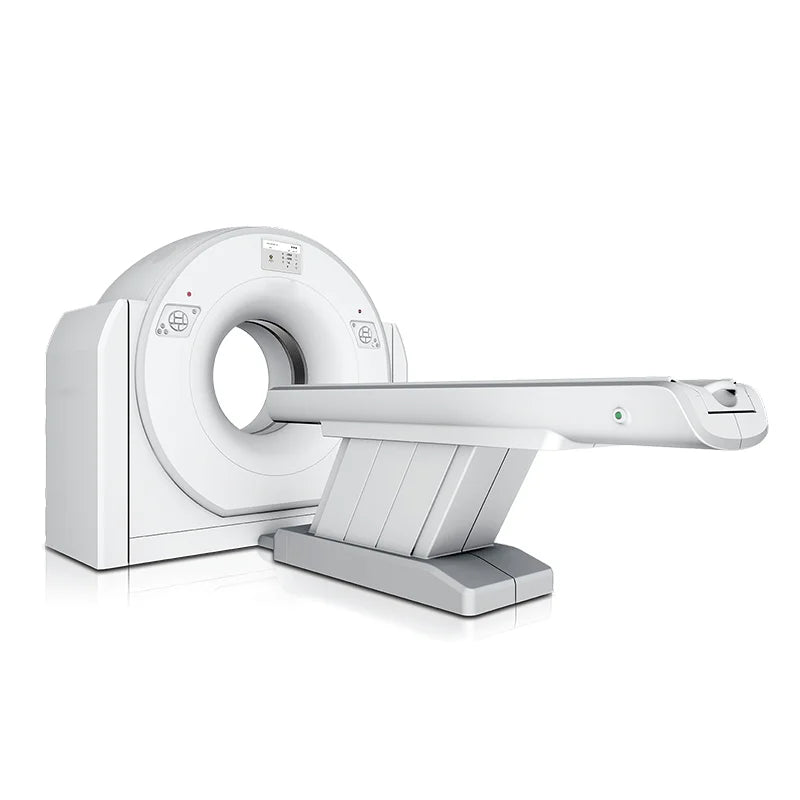

Advanced 32-Slice CT Scanner Machine

The Advanced 32-Slice CT Scanner offers state-of-the-art imaging technology to provide unparalleled diagnostic capabilities. This machine utilizes a series of X-ray images taken from multiple angles around the body and employs sophisticated computer processing to produce detailed cross-sectional images (slices) of bones, blood vessels, and soft tissues. The 32-slice CT scanner provides significantly more detailed information compared to standard X-rays, making it an indispensable tool for accurate diagnosis and patient care.

Key Features:

• 32-Slice Imaging: The 32 detector rows capture highly detailed images, enabling enhanced diagnostic accuracy across a wide range of medical applications.

• Large Patient Opening: The 800mm patient opening accommodates various patient sizes, ensuring comfort and ease during scanning procedures.

• Digital Gantry Tilt: The digital gantry tilt provides precise and flexible positioning, allowing for optimal imaging angles and reducing the need for patient repositioning.

• 3D Laser Orientation: The built-in 3D laser orientation system facilitates accurate alignment, improving the precision of scans and reducing setup time.

• User-Friendly Touch Screen: The intuitive touch screen interface offers easy access to controls and settings, streamlining operation and improving workflow efficiency.

• High-Resolution Detectors: With 32 detector rows and 25,088 detector columns, the machine provides superior image quality and resolution, capturing even the smallest anatomical details.

• Advanced Z-Axle Detector: The 20mm width of the Z-axle detector enhances image acquisition, ensuring fast and comprehensive scans with minimal artifacts.

• Accurate Focus-ISO-Center and Focus-Detector Distance: With precise measurements of 570±0.5mm for the focus-ISO-center and 1021±0.5mm for the focus-detector distance, the scanner delivers exceptional imaging accuracy and reliability.

The Advanced 32-Slice CT Scanner is engineered to deliver high-quality imaging and exceptional patient care, making it an ideal choice for healthcare facilities seeking to enhance their diagnostic capabilities.

• Properties : Diagnosis & Injection
• Slip Ring : Low-voltage slip ring
• Bore Size : 715mm
• Collimation : 2x1.1mm;8x0.55mm;16x0.55mm;16x1.1m m
• Sampling Rate : 1800 view/cycle
• Min Scan Time (s/360°) : 0.72s
• Max FOV (Field of View) : 500mm
• Detector Type : GOS ceramic solid detector
• Detector Number : 816x24
• Detector Row : 24
