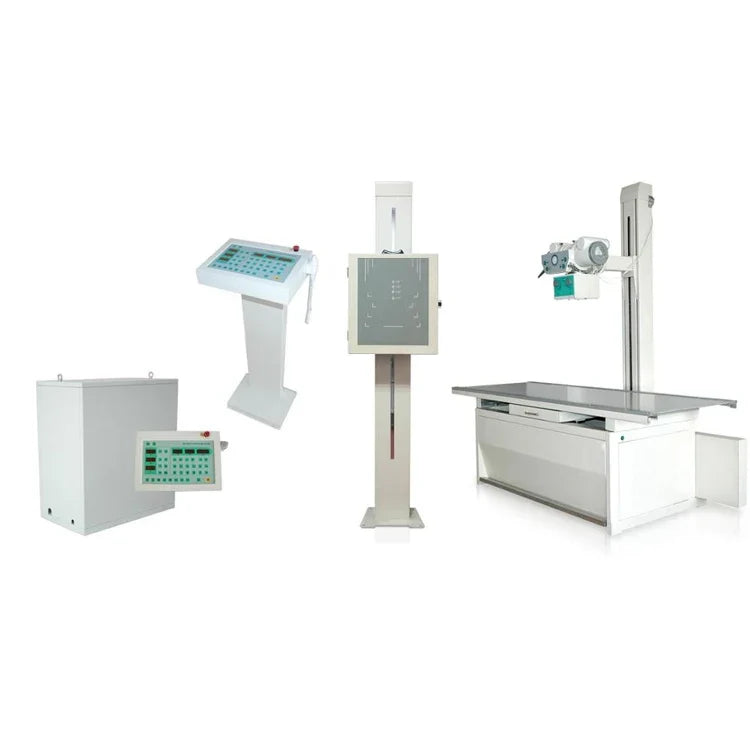

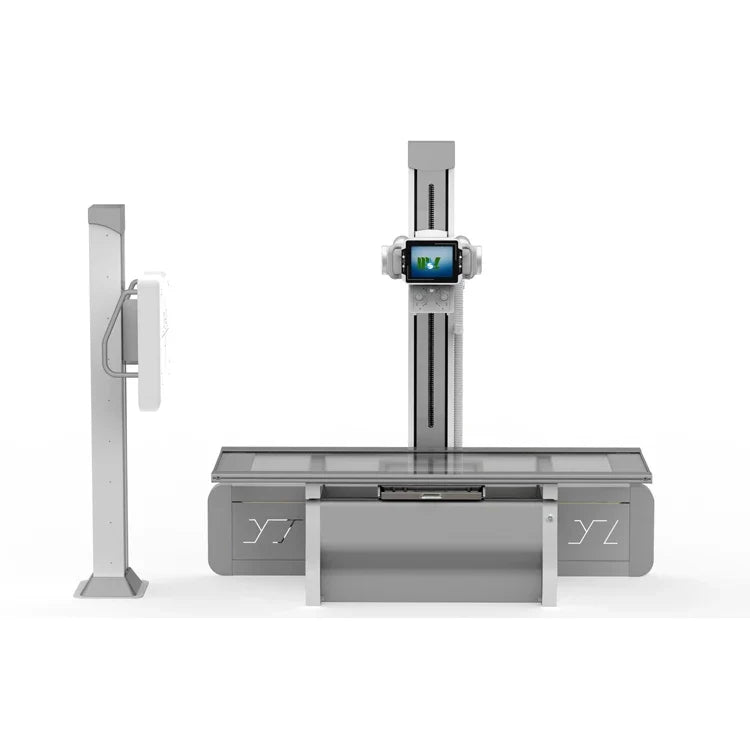

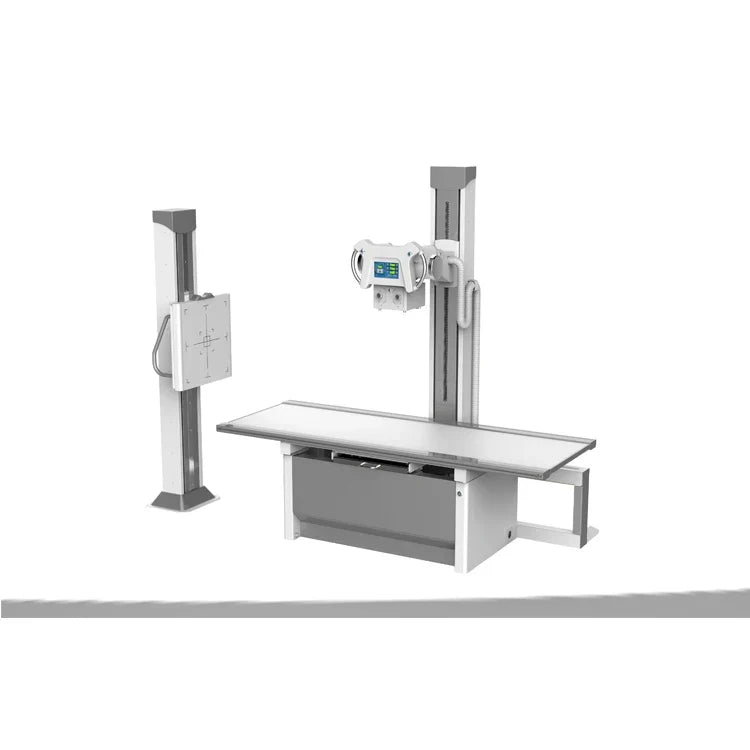

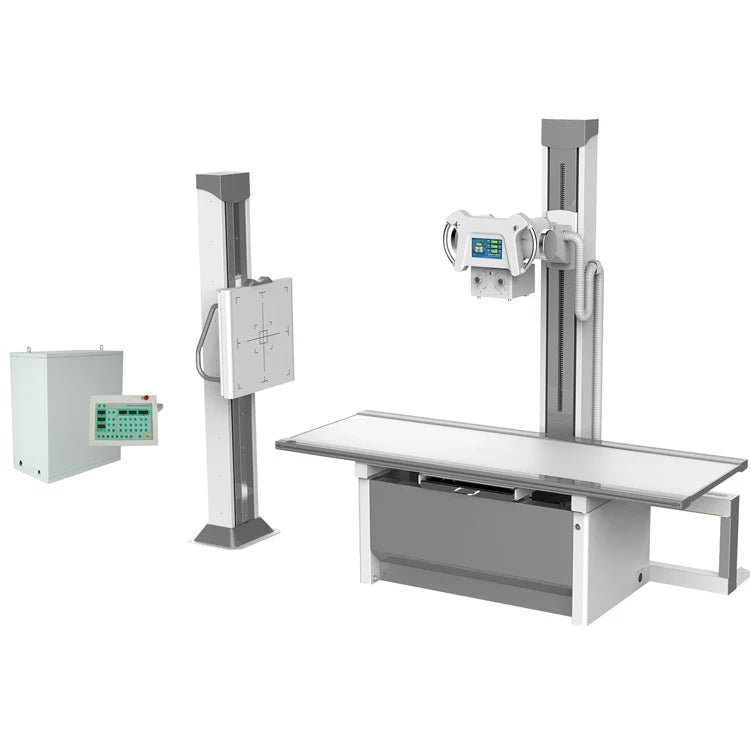

Introducing our Digital X-Ray Radiography System, available in 20KW, 32KW, and 50KW variants, equipped with a Flat Panel Detector DR System for precise imaging.

 Features:

a) Simulation and digital double-loop accuracy control method: Ensures stable x-ray output with high accuracy, even during power fluctuations, utilizing high-frequency inverter circuit and microprocessor technology.

b) High precision radiography time control: Offers rapid exposure times as short as 0.002 seconds, enabling fast imaging regardless of power phase, while minimizing patient radiation exposure.

c) High precision tube current control: Utilizes two-grade high-frequency converters for precise tube current control, managed in real-time by a microprocessor, optimizing radiography conditions efficiently.

d) Versatile setting modes: Allows for easy configuration of radiography conditions such as kV, mA, and mAs, simplifying operations with quick anatomy programming radiography (APR) and capacity protection settings.

e) Default self-protection and self-diagnosis: Automatically safeguards against malfunctions with generator chain protection, alarm systems, and fault code diagnosis for convenient maintenance.

f) Compact design: Features a small footprint and lightweight construction, minimizing installation space requirements.

Specifications:

Working Conditions:

• Ambient Temperature: +10°C to +40°C
• Relative Humidity: 30% to 75%
• Atmospheric Pressure: 70Kpa to 106Kpa

Transportation and Storage Conditions:

• Ambient Temperature: -20°C to +70°C
• Relative Humidity: 10% to 100% (including condensation)
• Atmospheric Pressure: 50Kpa to 106Kpa

Main Technical Parameters:

• Function: Radiography
• X-Ray Machine Maximum Output Power:
  • Intermittent Mode: 100Kv, 200mA, 20KW
• Tube Current Adjustment Range: 16mA to 200mA
• Tube Voltage Adjustment Range: 40kV to 125kV
• Exposure Time: 0.0025s to 6.4s
• Nominal Working Frequency: ≥30kHz
• Power Supply: Three-phase five wires 380V ±38V

Main Configuration:

• High-Frequency High Voltage Generator (Including Control Console)

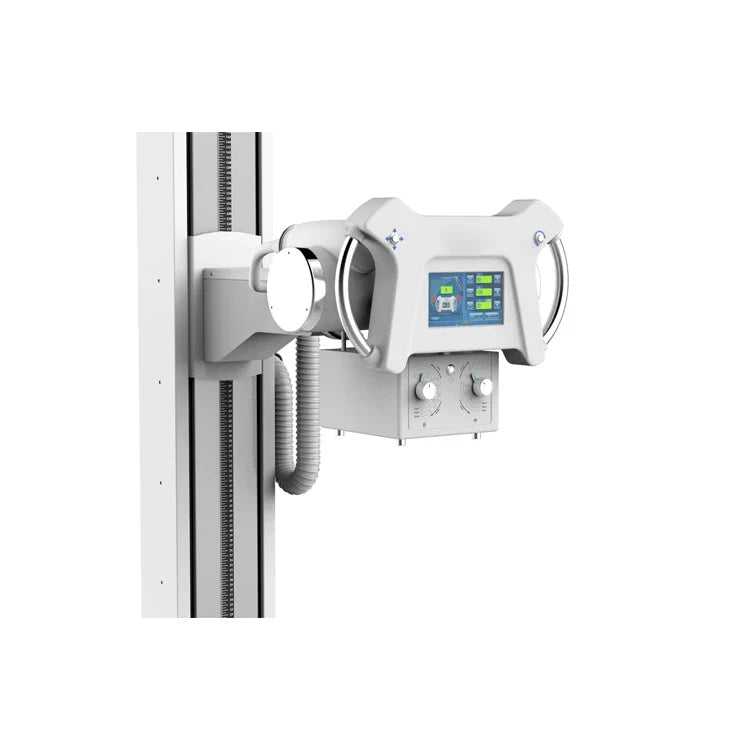

• X-Ray Tube:
  • Focus: Small (1.0mm), Large (2.0mm)
  • Anode Speed: 2800r/min
  • Anode Thermal Capacity: 140khu
• Collimator Power Supply: AC24V

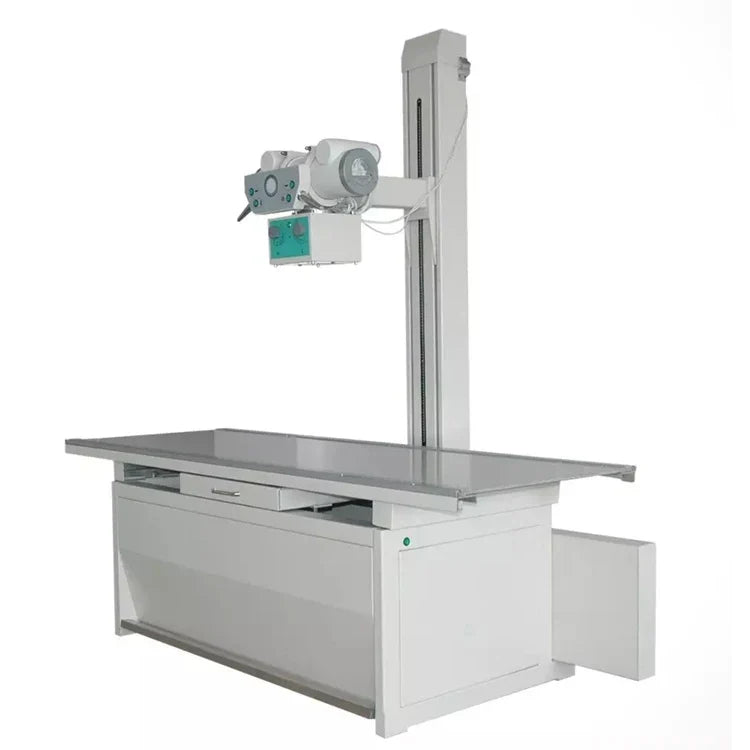

• Radiography Bed:
  • Single Phase 220V ±22V, 50Hz ±1Hz
  • Braking Mode: Electromagnetic Brake
  • Bed Size: L2000mm * W760mm * H685mm
  • Vertical Moving Range: ≥825mm
  • Horizontal Moving Range: ≥250mm
