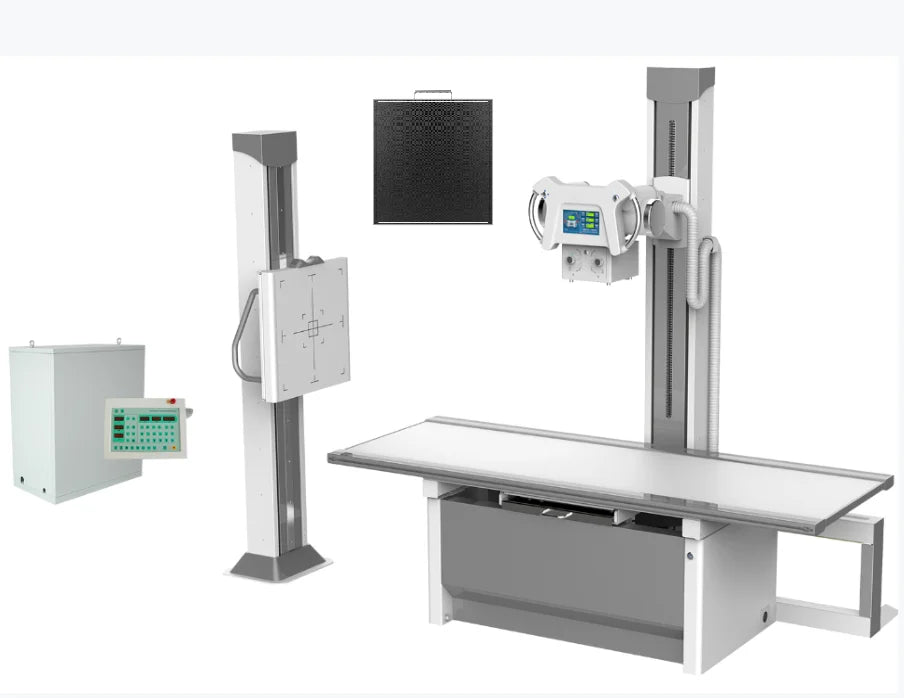

Introducing our High Frequency X-ray Machine, engineered to deliver superior performance and precision in medical imaging:
Parameters:
- Power Options: Choose between 20kW (200mA) or 50kW (500mA) configurations.
- Intermittent Mode: Supports 100kV, 200mA, 20kW or 100kV, 500mA, 50kW settings.
- Power Voltage: Operates on a three-phase five wires system with 380V±38V voltage.
- Tube Current: Offers a wide range from 16mA to 200mA (or 630mA) for versatile imaging needs.
- Output Voltage: Adjustable output voltage for radiography ranging from 40kV to 125kV.
- Output Power: Available in 20kW or 50kW options, ensuring efficient performance.
- Exposure Time: Radiography exposure time adjustable from 0.0025s to 6.4s for precise imaging.
- Nominal Frequency: Ensures high-frequency operation with a frequency of ≥30kHz.
- Anode Speed: High-speed anode rotation at 2800 revolutions per minute for rapid imaging.
Our High Frequency X-ray Machine offers advanced features and flexible configurations to meet the diverse imaging requirements of medical professionals, ensuring reliable and accurate results.
Specification
|
Product name
|
High Frequency x-ray machine
|
|
Parameter
|
20kw 200mA 50kw 500mA
|
|
Intermittent mode
|
100kV ,200mA,20kW 100kV ,500mA,50kW
|
|
Power Voltage
|
Three-phase five wires 380V±38V
|
|
tube current
|
Radiography16mA~200mA Radiography16mA~630mA
|
|
Output Voltage
|
Radiography 40-125KVstep 1kV
|
|
Output power
|
20kW 50kW
|
|
Exposure Time Radiography
|
0.0025s~6.4s adjustable
|
|
Nominal Frequency
|
≥30kHz
|
|
Anode speed
|
2800r/min
|
