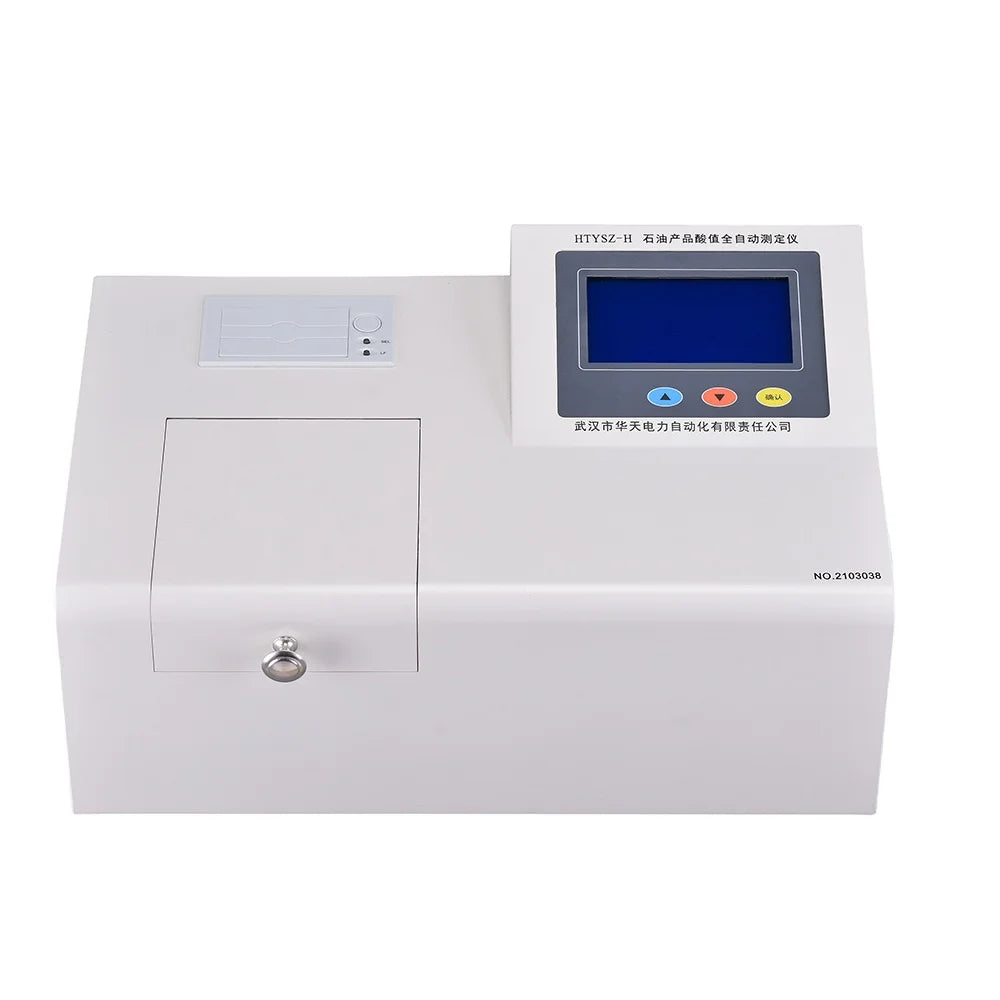

Experience the advanced capabilities of the Fully Automatic Insulation Oil Acidity Analysis Machine, designed for precise acid value testing of insulation oils.

Features:

1. Robust Electromagnetic Compatibility (EMC): Built to withstand power grid fluctuations and environmental electromagnetic interference, meeting the IEC801 standard for reliable performance.
2. User-Friendly Operation: Features a humanized touch screen interface for intuitive and convenient operation, ensuring ease of use for operators.
3. Safety and Reliability: Utilizes specially designed reagent packaging to prevent contact with air during use, minimizing the impact of neutralization solution reactions with carbon dioxide. This design also eliminates the need for users to handle reagents directly, reducing exposure to harmful organic solvents and chemicals.

Ensure the safety and integrity of your insulation oil analysis with this state-of-the-art automatic tester.

Specifications:

• Measuring Range: 0.001~0.999 mgKOH/g
• Accuracy: ±0.005 mgKOH/g (0.001~0.100 mgKOH/g)
• Resolution: 0.001 mgKOH/g
• Power Supply: AC220V±20%, 50Hz±10% (110V, 60Hz)
• Display: LCD (240*128)
• Test Method: Neutralization Method
• Capacity: 60W
• Dimension (LBH): 440280200mm, Weight: 10kg
• Mains Input: AC 110V 220V ±10% 50HZ
• Range of Acid Values: 0.0001~10.000 mgKOH/g
• Minimum Distinguishability: 0.0001 mgKOH/g
• Accuracy of Measurement:
  • Acid value within 0.001~0.1000 mgKOH/g, allowable error range: 0.01 mgKOH/g
  • Acid value within 0.1000~0.5000 mgKOH/g, allowable error range: 0.03 mgKOH/g
• Boundary Dimension: L×B×H 440×280×200 (mm)
• Operating Environment Temperature: 5℃～50℃
• Relative Humidity: ≤75%
• Weight: 24 lbs

• Warranty : 1 years
• Brand Name : UHV
• Model Number : HTYSZ-H
• Power : Electronic
• Measuring range: : 0.001~0.999mgKOH/g
• Accuracy: : ±0.005mgKOH/g (0.001~0.100mgKOH/g)
• Resolution: : 0.001mgKOH/g
• Power supply: : AC220V±20%,50Hz±10%(110V ,60Hz)
• Display: : LCD(240*128)
• Test method : Neutralization method
• Capacity : 60W
• Dimension : (L*B*H) 440*280*200mm,
• NW: 24lbs
