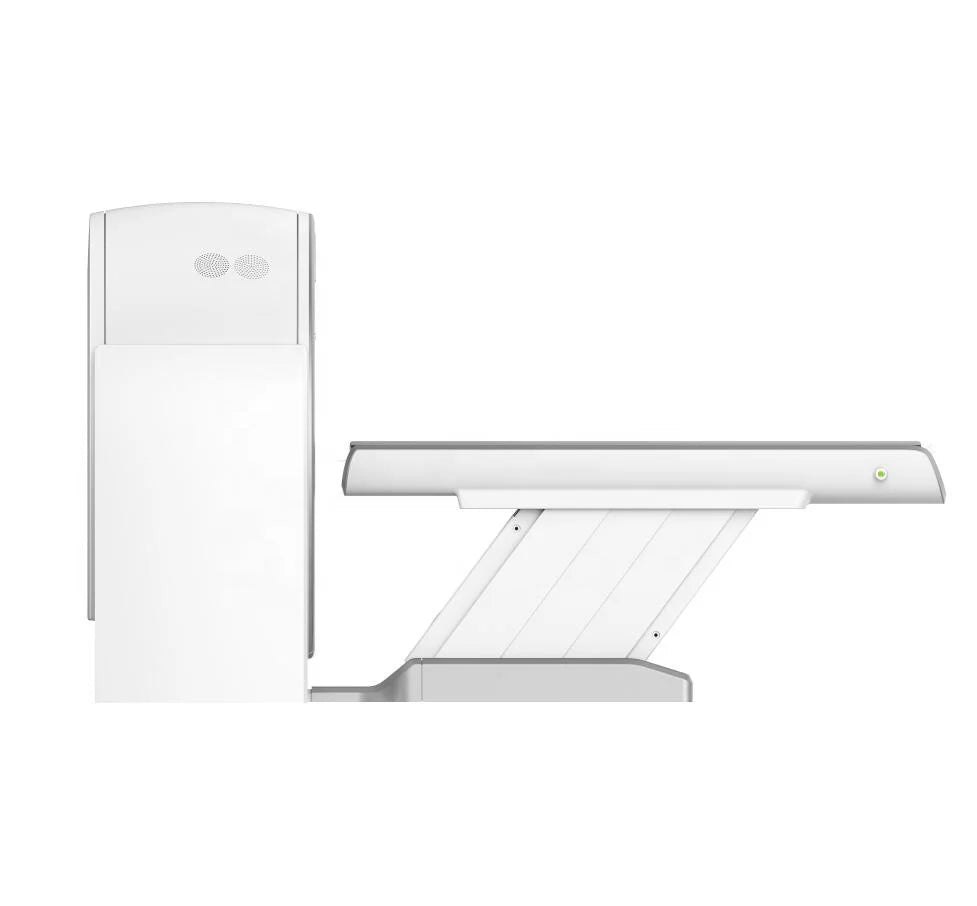

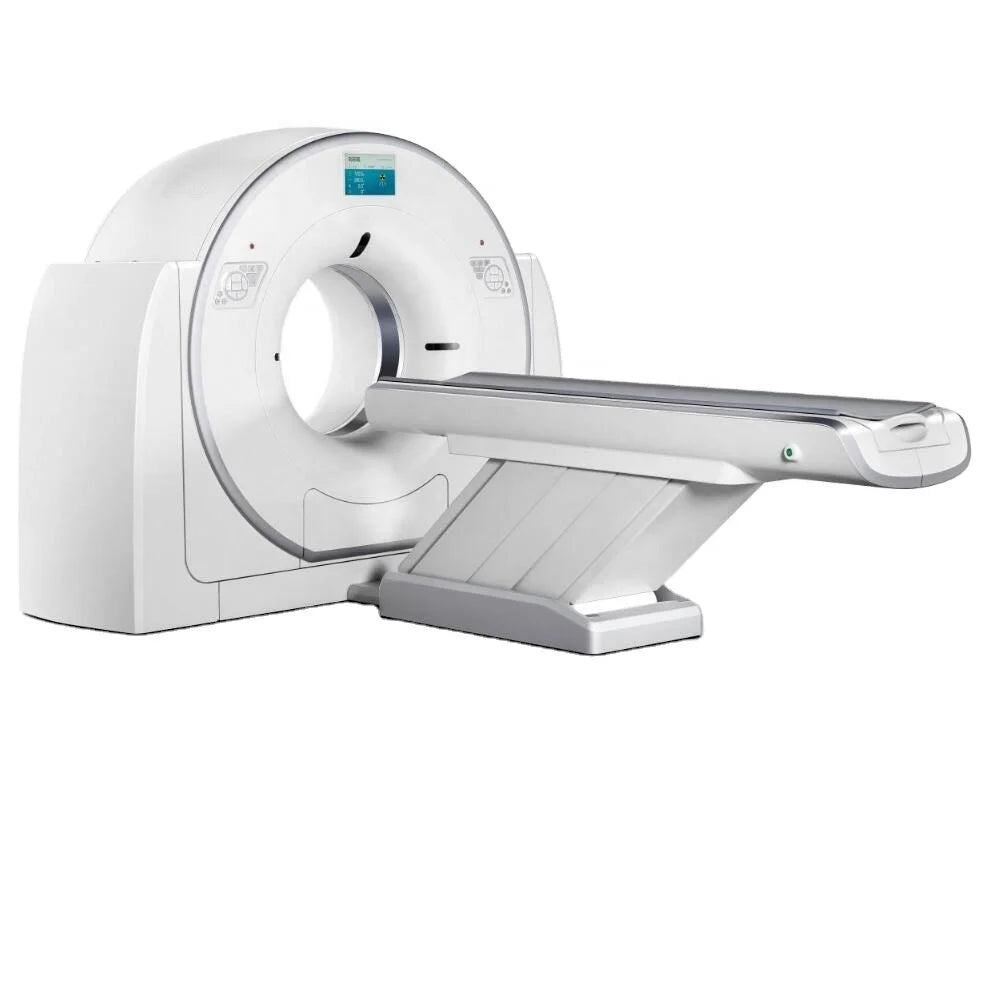

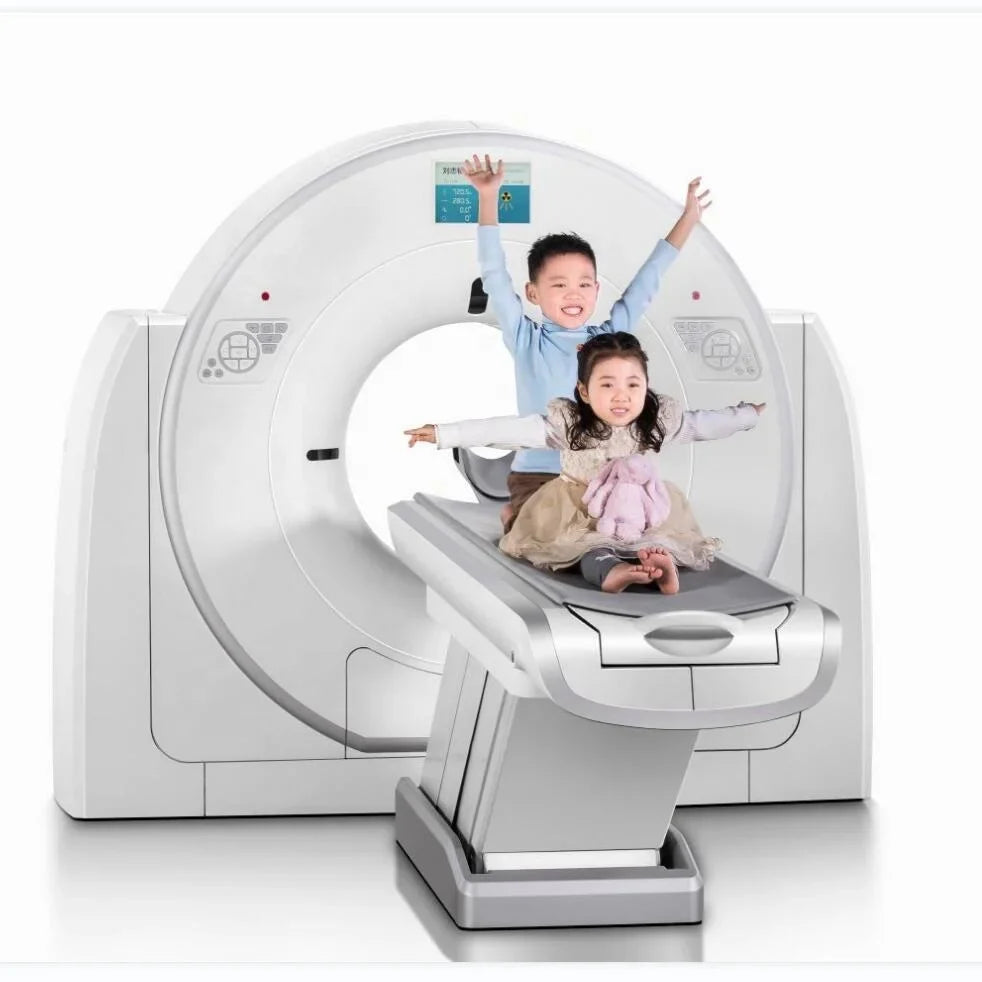

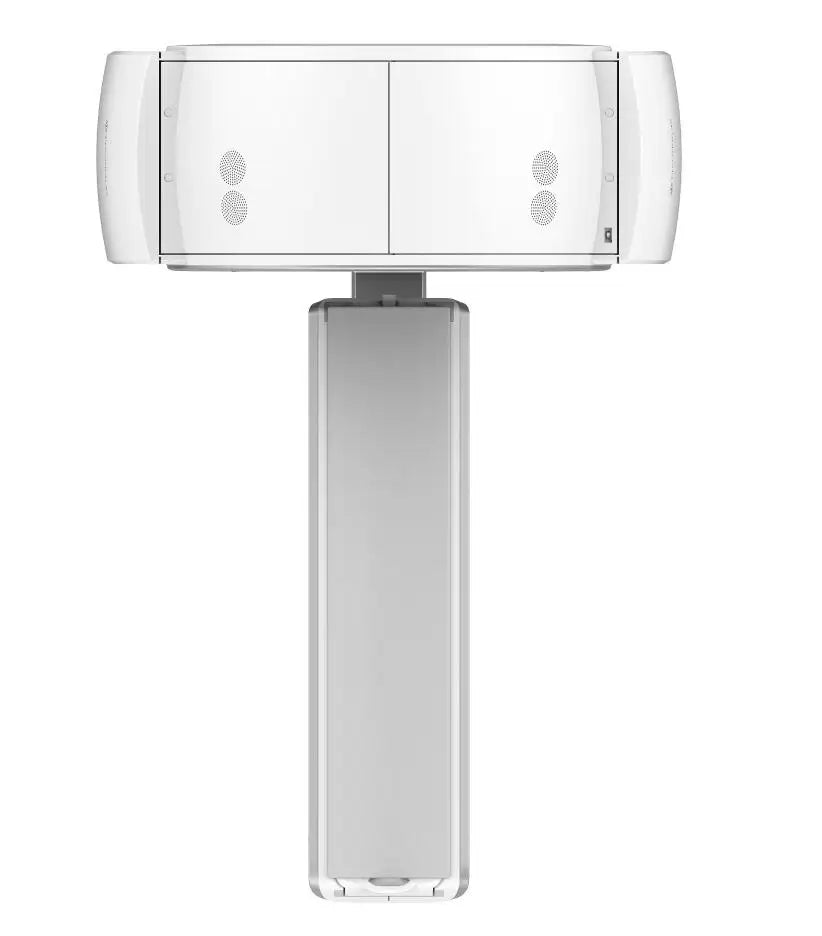

Campo Imaging CT Scanner - Radiology Diagnostic CT Scan Machine

Introduction: The Campo Imaging CT Scanner captures exceptionally thin images at 0.275mm, making it ideal for inner ear imaging and pulmonary nodule detection. Its 32-slice dual-energy imaging extends CT applications, offering high-quality images and stable performance. This machine helps hospitals achieve comprehensive and accurate diagnoses, redefining the standards of 32-slice CT imaging.

Specifications:

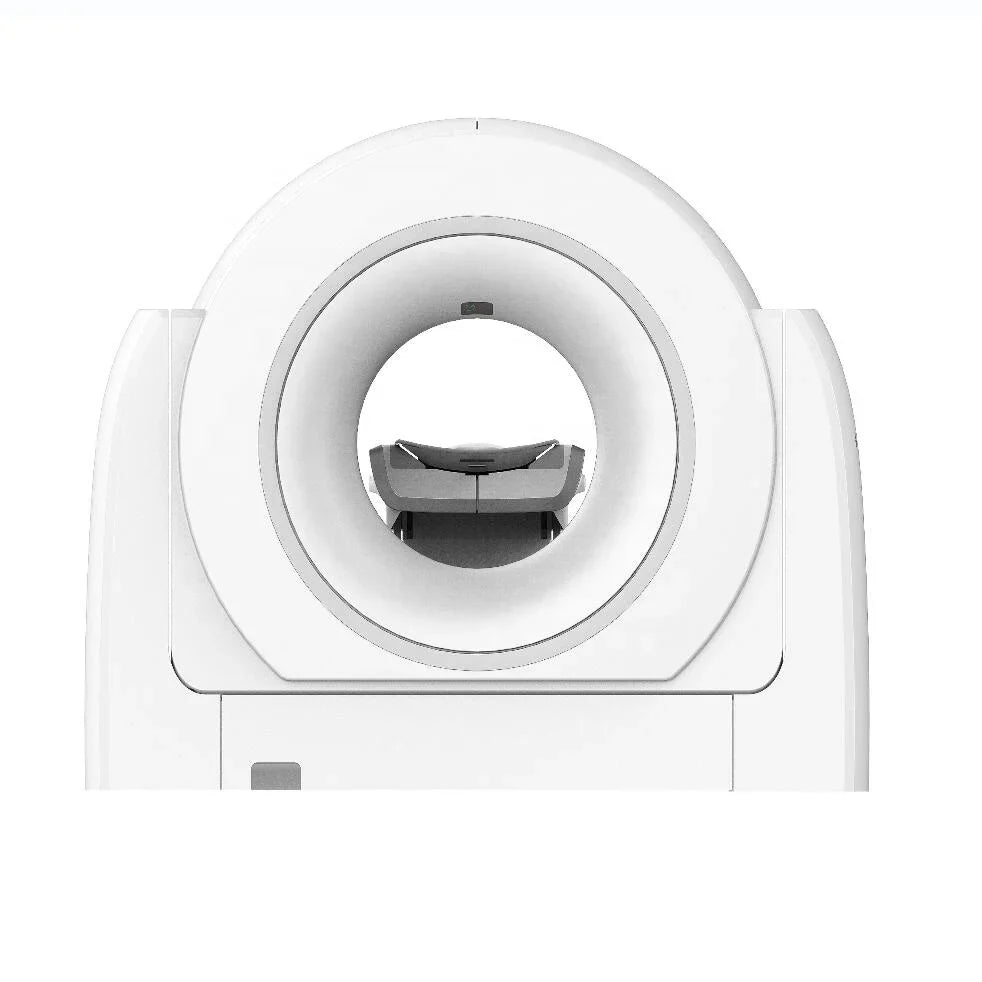

Gantry:

• Slip Ring: Low-voltage slip ring
• Aperture Size: 715mm
• Tilt Angulation Range: ±30°
• Laser Positioning System: Provides sagittal, coronal, and cross-sectional positioning lines
• Scanning Collimation: 2x1.1mm; 8x0.55mm; 16x0.55mm; 16x1.1mm
• Sampling Rate: 1800 views/cycle
• Minimum Scan Time (s/360°): 0.72s
• Maximum FOV (Field of View): 500mm
• Data Transmission Mode: Digital transmission

Detector:

• Type: GOS ceramic solid detector
• Rows: 24
• Channels per Row: 888
• Thickness per Row: 0.55mm

X-ray System:

• Focal Point: Bifocus
• Focal Spot Size: 0.7mm x 0.8mm; 1.2mm x 1.4mm
• Tube Life: 100,000 second exposure
• Output Voltage: 60kV, 70kV, 80kV, 100kV, 120kV, 140kV
• Maximum Continuous Exposure Time: 100s

Scanner Table:

• Horizontal Movement Range: 0~1725mm
• Maximum Scan Range: 1650mm
• Maximum Horizontal Speed Range: 300mm/s
• Vertical Lift Range: 470mm
• Maximum Load Capacity: 205kg

Scanning and Image Reconstruction System:

• Scan Mode: Tomoscan, Helical Scan, Precision Tomoscan, Dual Energy Scan (Optional)
• Display Gray Scale: 256, 24-bit color

• Power Source : Electric
• Warranty : 2 years
• After-sale Service : Online technical support
• Material : Metal
• Shelf Life : 20 years
• Voltage : 380VAC±10%;50Hz±1Hz
• Slice : 32
• Scanning Collimation : 2x1.1mm;8x0.55mm;16x0.55mm;16x1.1mm
• Sampling Rate : 1800view/cycle
• Min Scan Time(s/360°) : 0.72s
• Data Transmission Mode : Digital transmission
• Cooling-down Method : Air cooling heat dissipation
• Max FOV(Field of View) : 500mm
• Tube Life : 100000 second exposure
• Application : Hospital ICU
