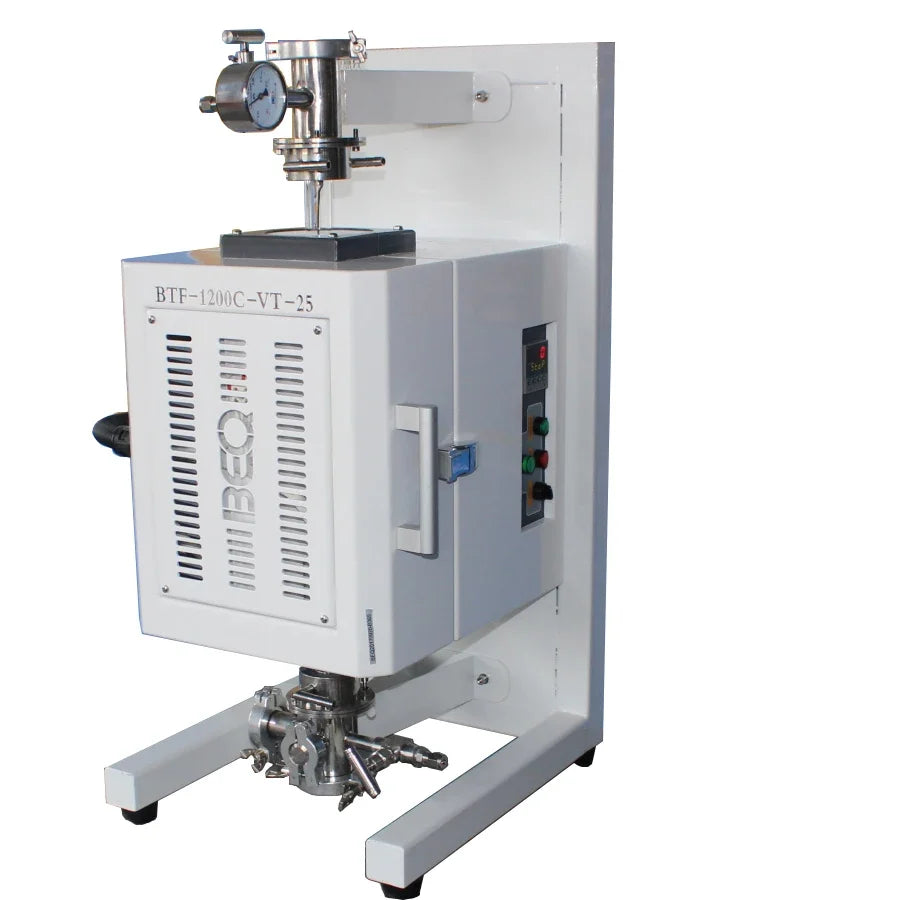

This vertical tube furnace features a single heating zone with a tube diameter of either 25mm or 50mm, ideal for sample treatments such as sintering and quenching under both vacuum and atmospheric conditions.

Specifications:

• Power: 2 kW
• Voltage: 220V, 50/60Hz
• Maximum Temperature: 1200°C
• Working Temperature: 1100°C
• Suggested Heating Rate: ≤20°C/min
• Tube: Quartz tube, OD 50mm x 600mm
• Heating Zone Length: 230mm
• Constant Heating Zone Length: 100mm
• Temperature Control: PID control with self-tuning, 30-segment programmable
• Accuracy: ±1°C

Temperature Controller Features:

• PID automatic control with auto-tune function
• 30 programmable segments for precise thermal processing
• Built-in protection against overheating and broken thermocouples
• Temperature Accuracy: ±1°C
• K-type thermocouple

Heating Elements:

• Made of Fe-Cr-Al alloy doped with Mo for enhanced durability

• Condition : New
• Type : Resistance Furnace
• Use : Heat Treatment Furnace, Heat Treatment Furnace
• Warranty of core components : 1 Year
• Core Components : PLC, Pressure vessel, Pump
• Brand Name : BEQ
• Voltage : 110V
• Dimension(L*W*H) : 340X300X360mm
• Weight (T) : 0.04 T
• Power (kW) : 2
• Warranty : 1 Year
• Key Selling Points : Accurate temperature control
• Applicable Industries : Other
• Recommended heating rate : 20℃/min
• Application : Quenching
• Max temperature : 1200C
• After-sales Service Provided : Video technical support
• After Warranty Service : Online support
• Certification : CE
• Rated power : 2KW
• Heating element : Resistance wire
