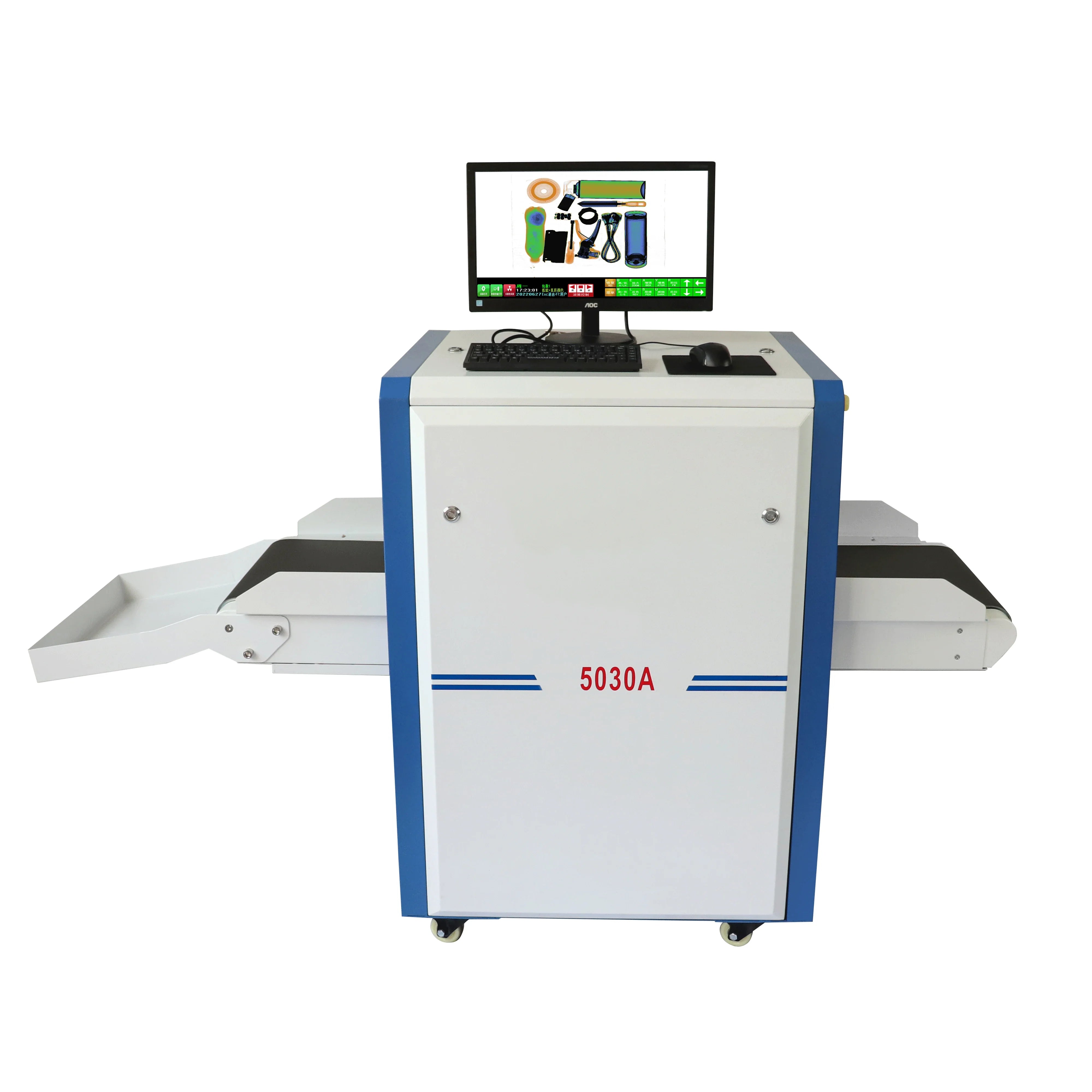

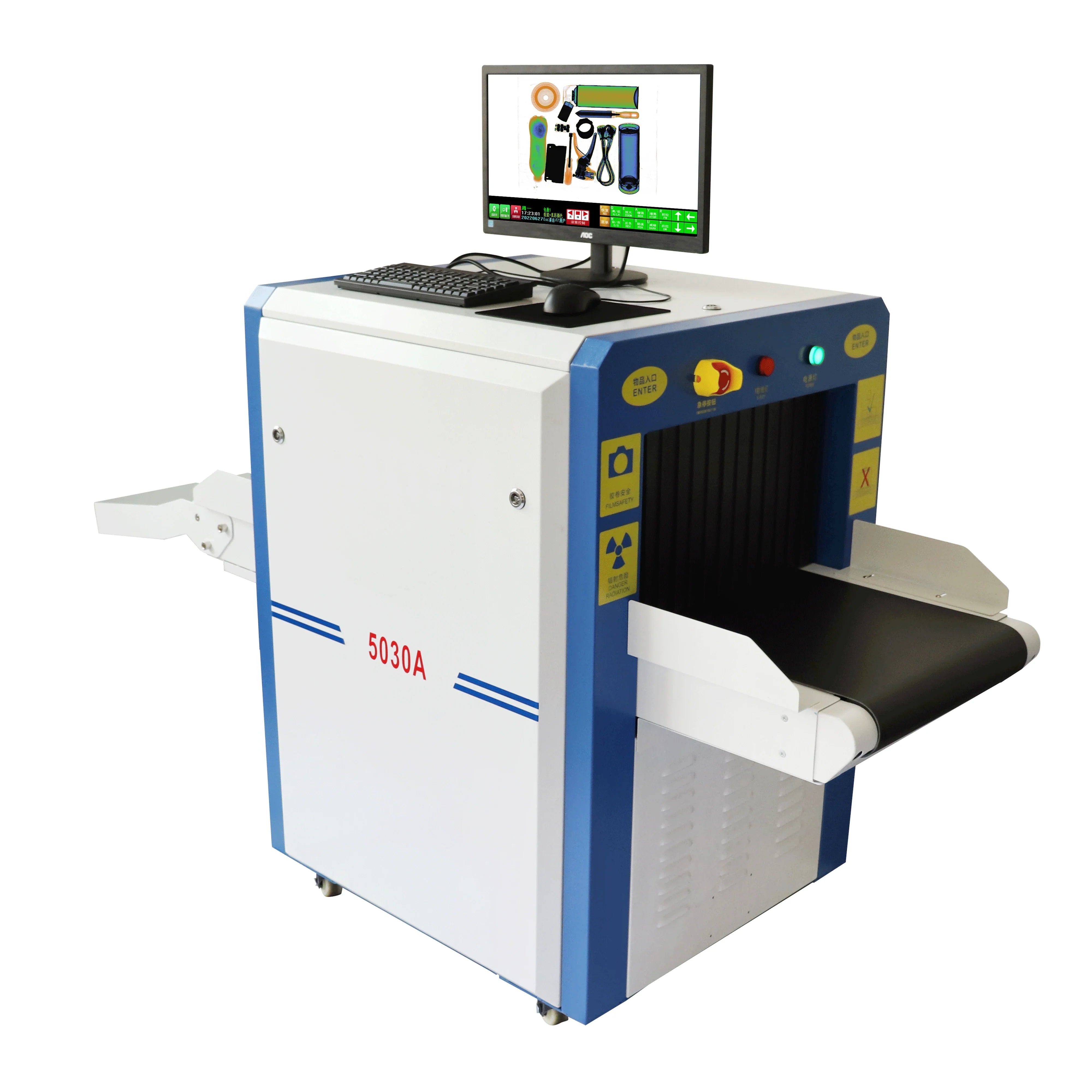

Compact X-Ray Baggage & Cargo Scanner for Hotels & Malls

This small-size X-ray baggage scanner is ideal for security screening in hotels, shopping malls, and similar venues. With advanced features and user-friendly operation, this scanner ensures reliable detection and streamlined monitoring.

Key Features:

1. Audio & Visual Alarms: Provides alerts with sounds and lights when a suspicious item is detected.
2. Network Compatibility: Connects to local area networks for multi-terminal baggage checks simultaneously.
3. Automatic Radiation Control: Ensures safe X-ray transmission under automatic control to minimize risks.
4. Adjustable Monitor Display: Foldable and rotatable monitor allows operators to set viewing positions for maximum comfort.
5. Space-Saving Operation: Simple mouse controls eliminate the need for a keyboard and workstation.
6. One-Step Shutdown: Power down the machine with a single key turn for a secure and easy shutdown.
7. Eagle-Eye Feature: Allows for quick zoom-in on specific areas for detailed examination.
8. Self-Diagnostic System: Automatically detects malfunctions and provides alerts for easier maintenance.

Technical Specifications:

• Tunnel Size: 500(W) x 300(H) mm
• Conveyor Speed: 0.22 m/s
• Max Load: 100 kg
• Single Inspection Dosage: <1.5 Gy
• Resolution: 0.1 mm metal line
• Steel Penetration: 8 mm
• Film Safety: Complies with ISO 1600
• Max Radiation Leakage: <0.3 Gy/h

X-Ray Generator:

• Orientation: Vertical
• Tube Current: Adjustable 0.4~0.5 mA
• Anode Voltage: Adjustable 80 kV
• Angle: 60°
• Cooling: Sealed oil bath with forced air, 100% duty cycle

Storage Temperature: -20°C to 60°C

• Warranty : 2year
• detection mode : x-ray bottom shine detecting
• tunnel size : 500(W)*300(H)mm
• conveyor speed : 0.2m/s
• steel penetration : 8mm metal line
• Maximum leakage radiation : <0.05uGy/h
• System Power : 220AVC/50Hz
• Power wastage : 1.0KW(Max)
• Noise : <65 dB
• Conveyor Max Load : 220lbs
