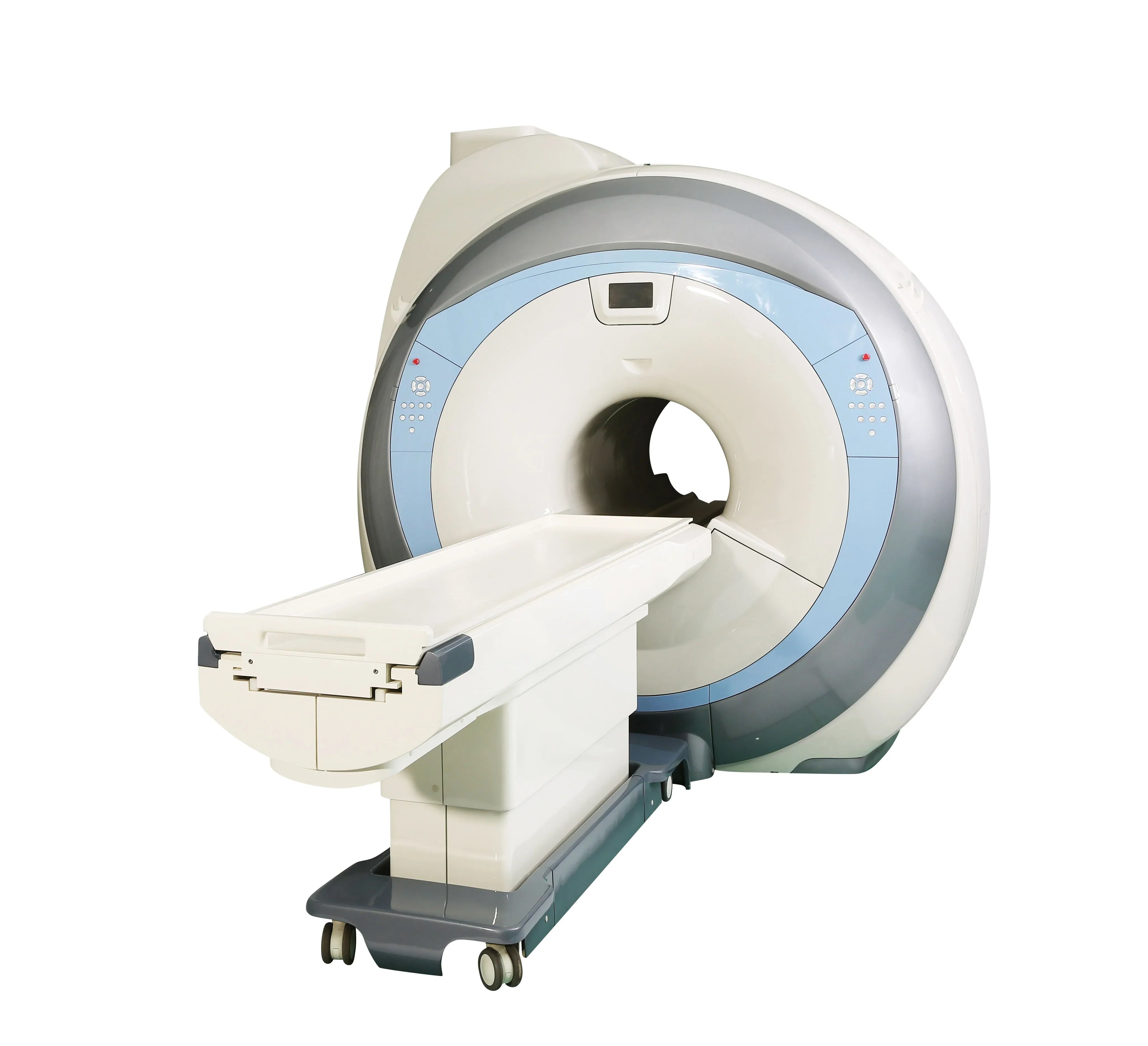

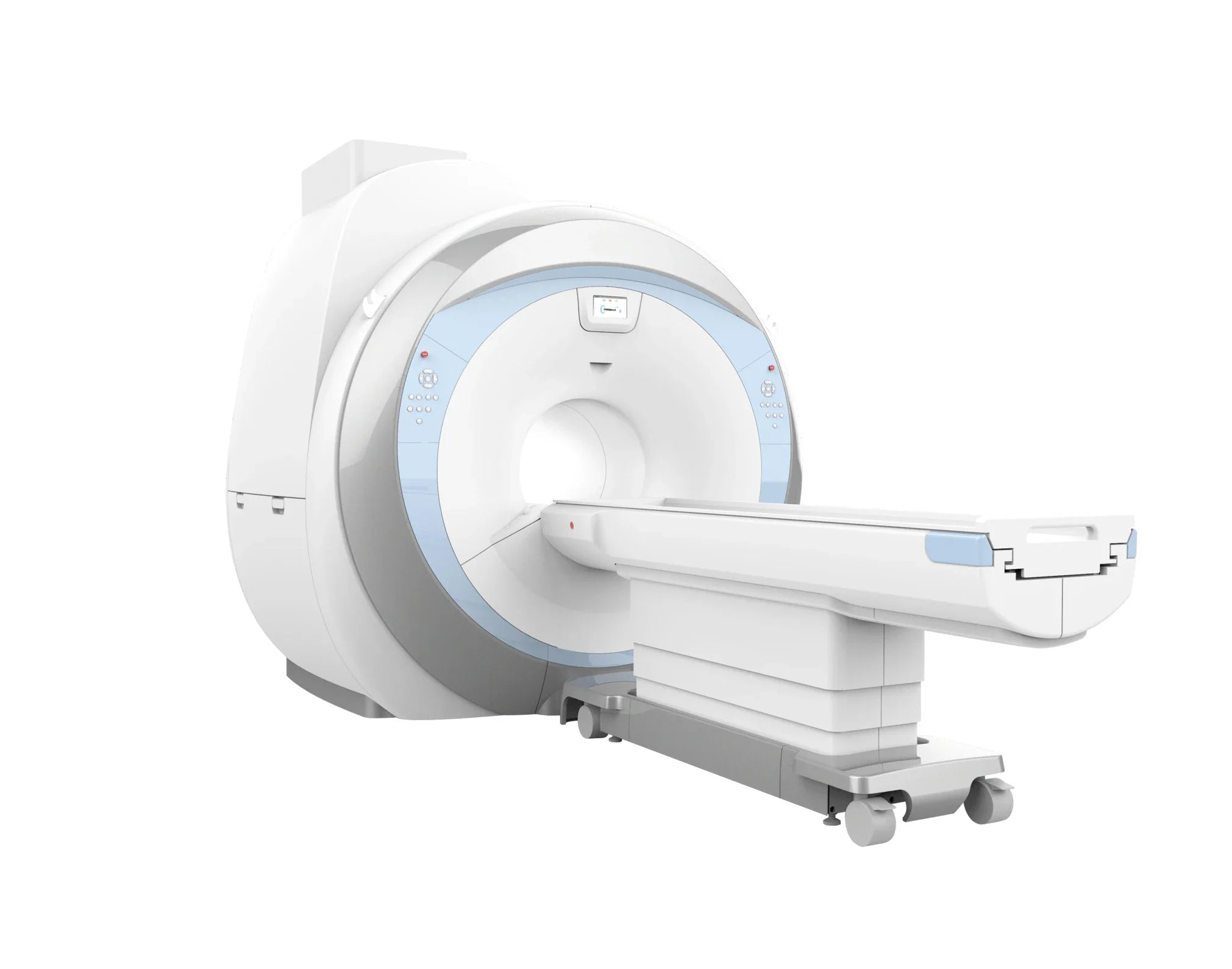

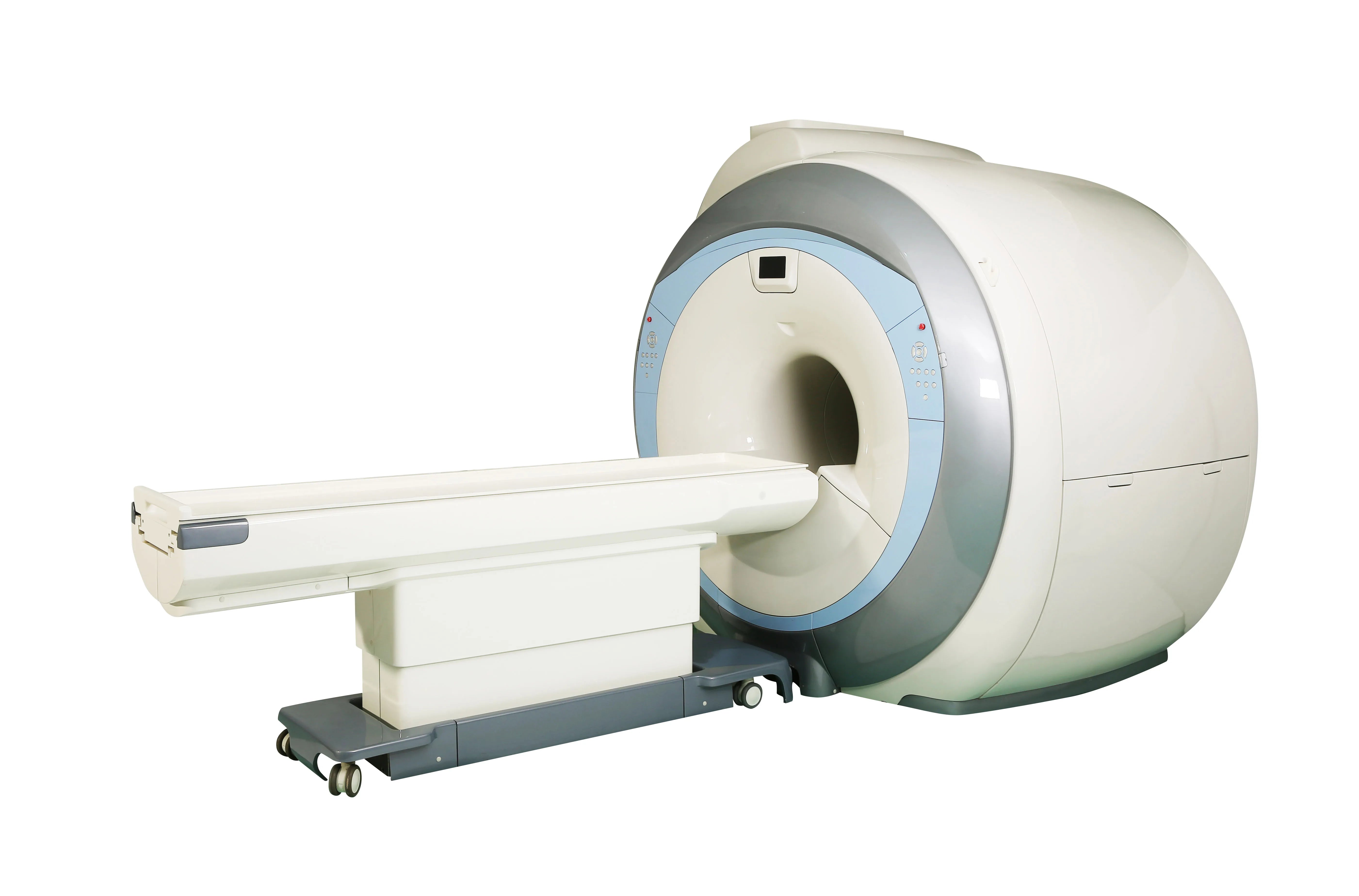

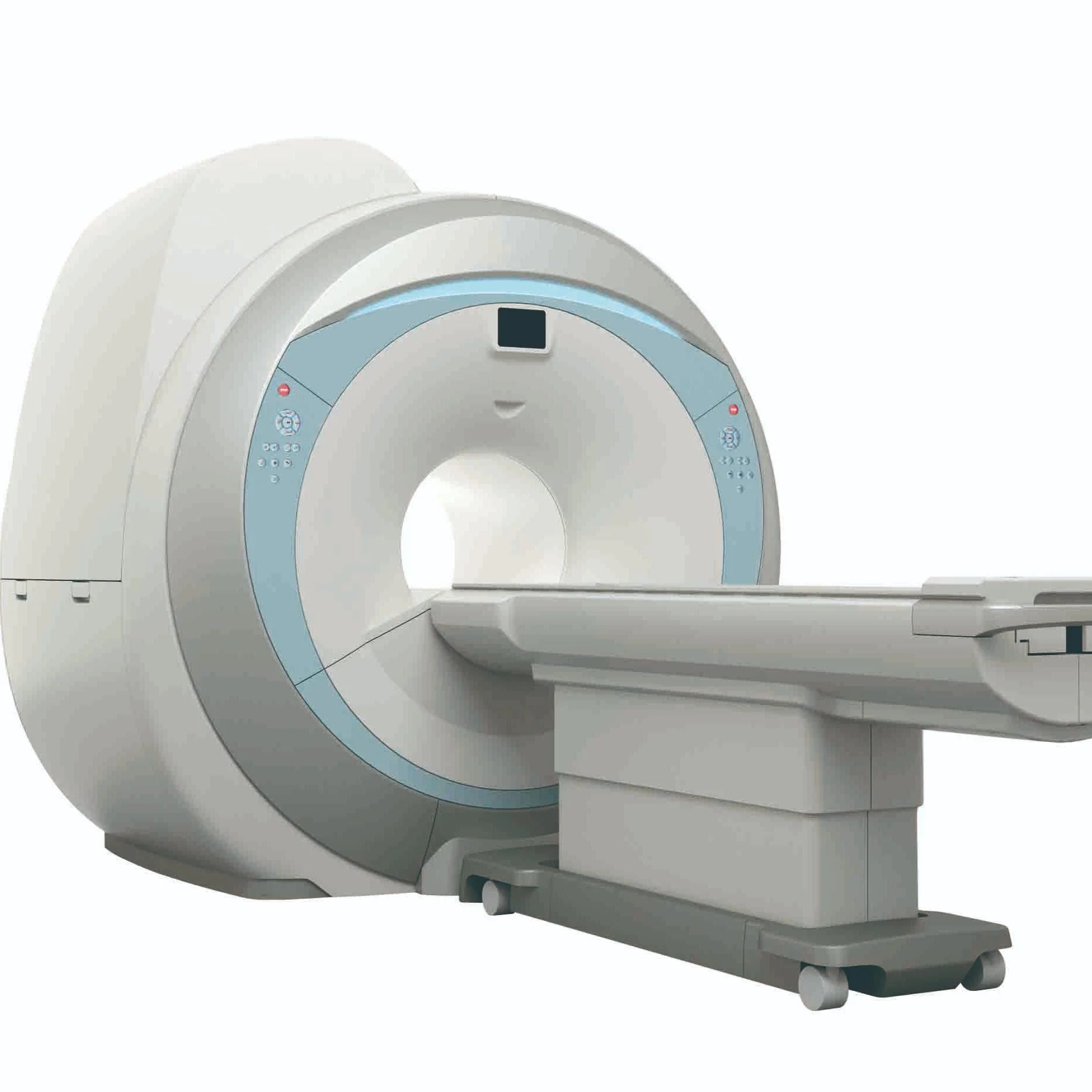

Experience Advanced Hospital MRI Technology: 1.5T Scanner Machine

Unveiling our state-of-the-art 1.5T MRI scanner machine, meticulously designed to meet the rigorous demands of hospital imaging. Dive into the technical specifications:

Magnet Parameters:

• Magnet Type: Permanent
• Magnetic Field Strength: 1.5T ± 5%
• Magnet Appearance: C-shape
• Weight: 12.8T ± 1.5%
• Horizontal Opening Angle: 320°
• 5 Gaussian Fringe Field: X, Y, Z directions ≤ 2.5m

Shimming:

• Shimming Methods: Passive Shimming + Active Shimming
• Magnetic Field Homogeneity (VRMS Measurement Method, 24 points 24 sides):
  • 40cm DSV (VRMS): ≤ 2.0ppm

General Features:

• Gradient Type: Ultrafast solid-state technology
• Gradient Amplifier Cooling Type: Air cooling
• Gradient Coil Cooling Type: Air cooling

Gradient Performance:

• Max. Amplitude (Single Axis): 28mT/m
• Max. Slew Rate (Single Axis): 93T/m/s
• Min. Rise Time: 0.3ms

Resolution Parameters:

• Max. FOV: 400mm
• Min. FOV: 10mm
• Min. 2D Thickness: 1.0mm
• Min. 3D Thickness: 0.1mm
• Max. Acquisition Matrix: 1024×1024
• Min. TE (Spin Echo): 5ms
• Min. TR (Spin Echo): 11ms
• Min. TE (Gradient Echo): 2ms
• Min. TR (Gradient Echo): 5ms
• Max. b-value of DWI: 1000

RF Parameters:

• Type of RF System: Full digital transmitting and receiving
• RF Amplifier Maximum Power: 6 kW
• Receiving Channel Number: 4 channels
• Receiving Bandwidth: 1.25 MHz

Standard PA (Phased Array) Coils:

• Head Coil: 4 channels, suitable for head imaging, head MR angiography, TMJ imaging.
• Neck Coil: 2 channels, suitable for neck imaging, cervical spine imaging, neck MR angiography.
• Body Coil - 20” (Large): 4 channels, suitable for thorax region imaging, spine imaging, abdomen imaging, pelvis imaging, hip imaging.

Elevate your hospital's imaging capabilities with our cutting-edge 1.5T MRI scanner machine, delivering unparalleled performance and precision in diagnostic imaging.
