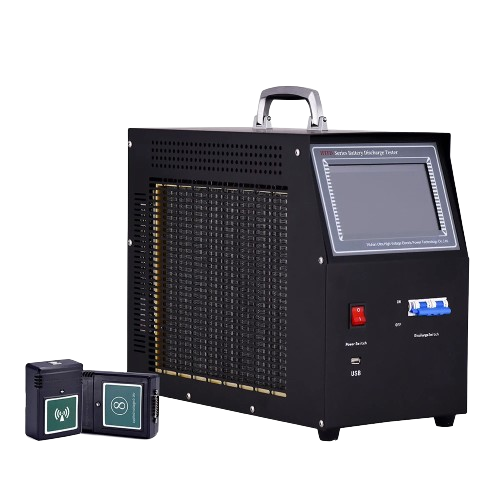

Discover the Digital DC Power Load Capacity Test Set, your ultimate solution for battery discharge testing.

 Features:

1. Constant current discharge function allows for continuous adjustable current, ensuring accurate measurement of battery capacity.
2. Wireless monitoring function enables real-time monitoring of monomer voltage, with each module capable of monitoring up to 12 monomers simultaneously.
3. Comes with Chinese background analysis software, featuring remote control discharge functionality.
4. Equipped with a host boasting a USB interface and a generous 2G super capacity internal data storage space.
5. Dual CPUs work in tandem to guarantee safety, reliability, and precision during testing.
6. Discharge can be suspended, and parameters can be modified without terminating the discharge test.

Specifications:

• Working Mode: Can be used alone, simultaneously, or for remote control and status monitoring.
• Applicable Battery: 48V, 110V, 220V, 380V
• Charging Voltage: 40～60V, 95～150V, 190～300V, 350～450V
• Charging Current: 10～150A, 1～80A, 1～40A, 1～20A
• Discharge Voltage: 10～60V, 80～135V, 80～270V, 300～460V
• Discharge Current: 0～150A, 0～200A, 0～100A, 0～60A
• Accuracy of Current: 1%
• Voltage Accuracy: 0.5%
• Monomer Voltage Accuracy: 0.2%
• Monomer Voltage: 0.500V～16.00V (resolution 1mv)
• Charge/Discharge Time: 0 ~ 99 hours and 59 minutes
• Power Supply: AC: 220V/380V
• Cooling Method: Forced air cooling
• Handling Method: Industrial universal wheel
• Temperature: Working range: -5 ~ 50℃, storage temperature: -40 ~ 70℃
• Humidity: Relative humidity 0 ~ 90% (40±2℃)
• Altitude: Rated altitude: 4000 m
• Noise: <60dB
• Voltage: Single-phase three-wire system: 220V AC (-20% ~ +30%), frequency: 45 ~ 65Hz
• Withstand Voltage Test:
  • Input - Housing: 2200V DC 1min
  • Input-Output: 2200V DC 1min
  • Output - Housing: 700V DC 1min
• Security: Meets EN610950
• AC Input: GB socket, suitable for 1 ~ 1.5mm2 cable
• DC Output: Instrument 25 mm2 cable quick connect plug (red positive, black negative)
