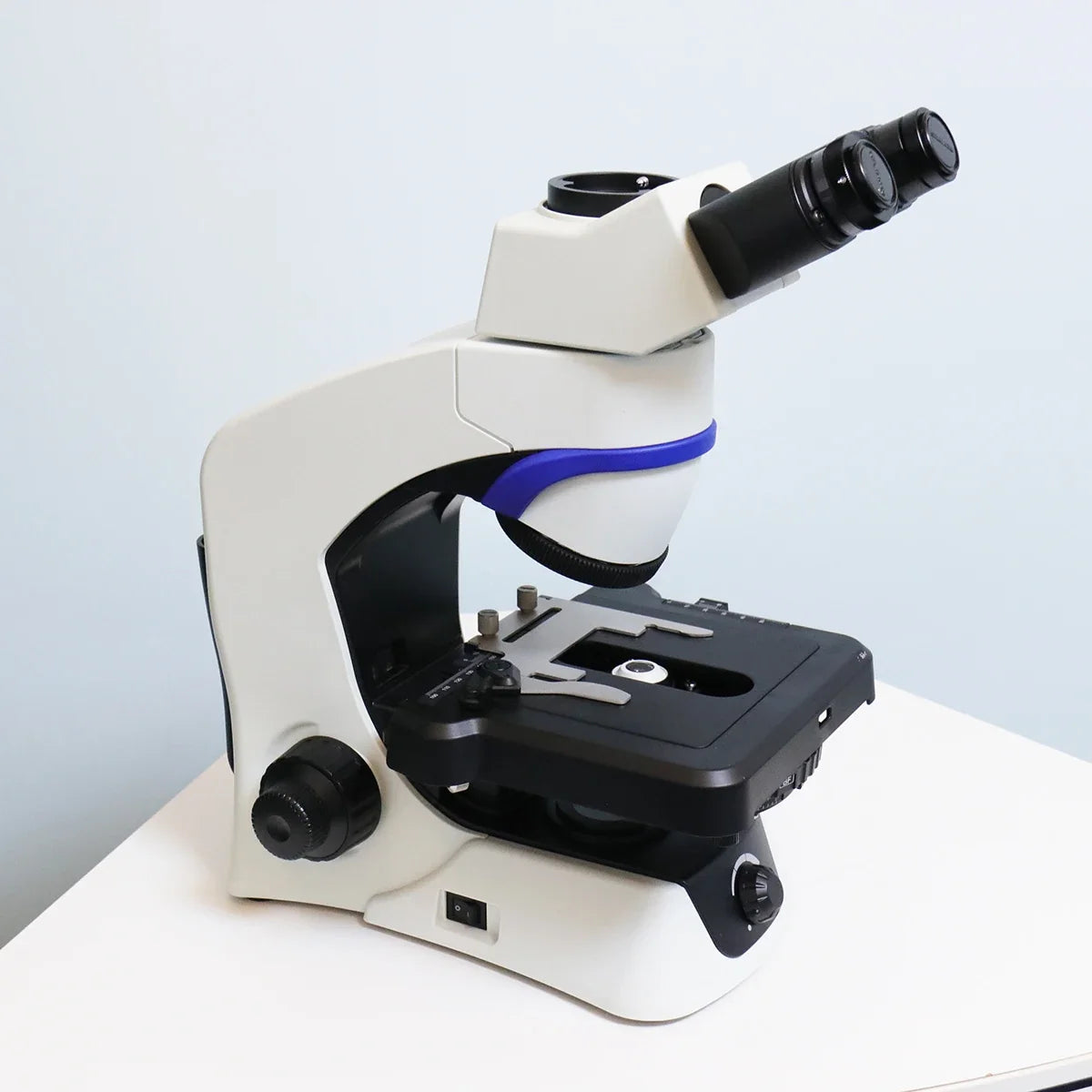

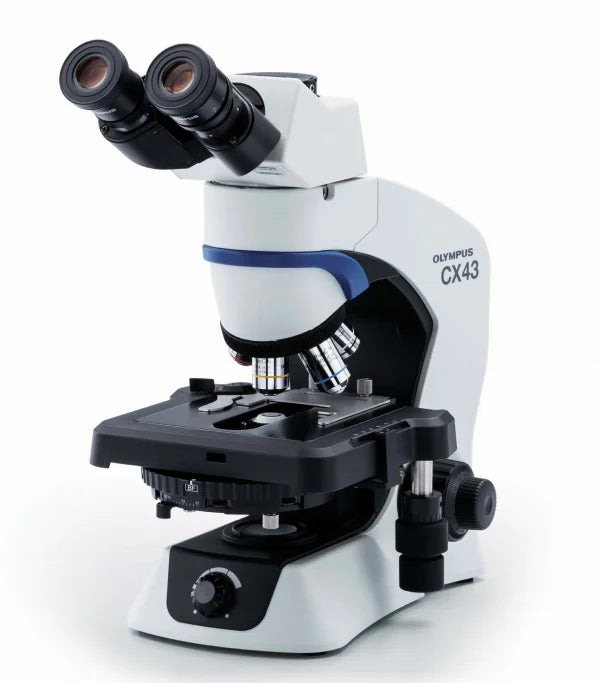

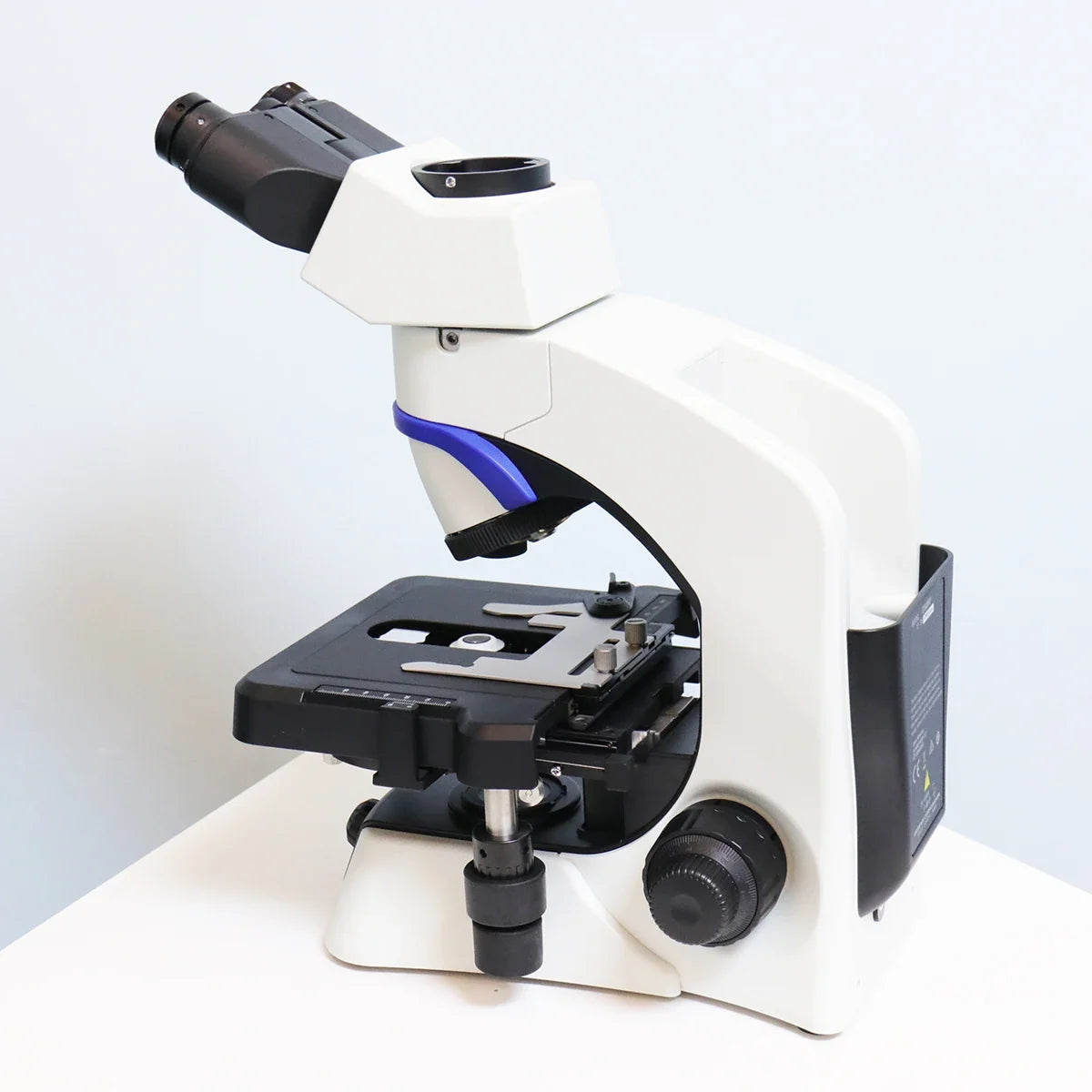

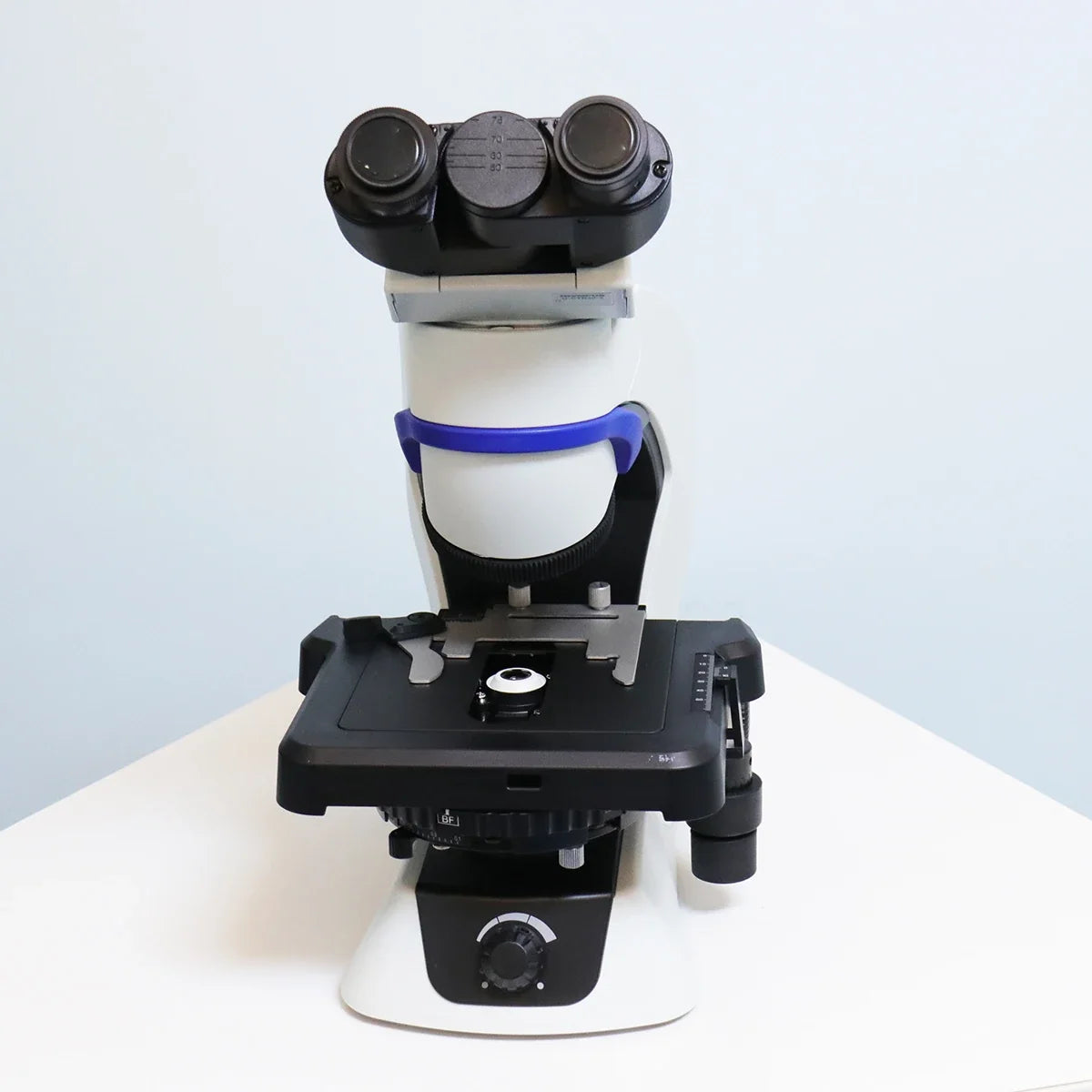

Trinocular Stereo Microscope with LED Illumination and Multiple Observation Modes

This Trinocular Stereo Microscope is ideal for diverse laboratory applications, featuring a built-in transmitted LED illumination system with a power-efficient 2.4W light source, pre-centered for consistent brightness. Its fixed quintuple nosepiece, set at an inward tilt, allows for smooth and easy switching between objectives. The spacious 211 mm x 154 mm stage provides a stable platform for detailed observations.

Key Features:

• Observation Modes: Supports bright field, simple polarization, and fluorescence for versatile imaging
• Illumination Flexibility: LED fluorescence illuminator can be added as needed
• Condenser: Abbe condenser with NA 1.25, designed for high-resolution imaging with oil immersion
• Voltage Requirements: AC 100-240V, 50/60 Hz, 0.4A for universal compatibility
• Compact Weight: 14 lbs, making it easy to integrate into lab setups

This microscope combines reliability and versatility, making it a valuable tool for laboratories requiring precise and adaptable imaging.

• Warranty :  1 year
• Model Number : MCX43
• Theory : Biological Microscope
• Drawtube : Trinocular
• Illumination System : Built in transmited illumination system
• LED power consumption : 2.4 W (nominal value), precentered
• Revolving Nosepiece : Fixed quintuple nosepiece with inward tilt

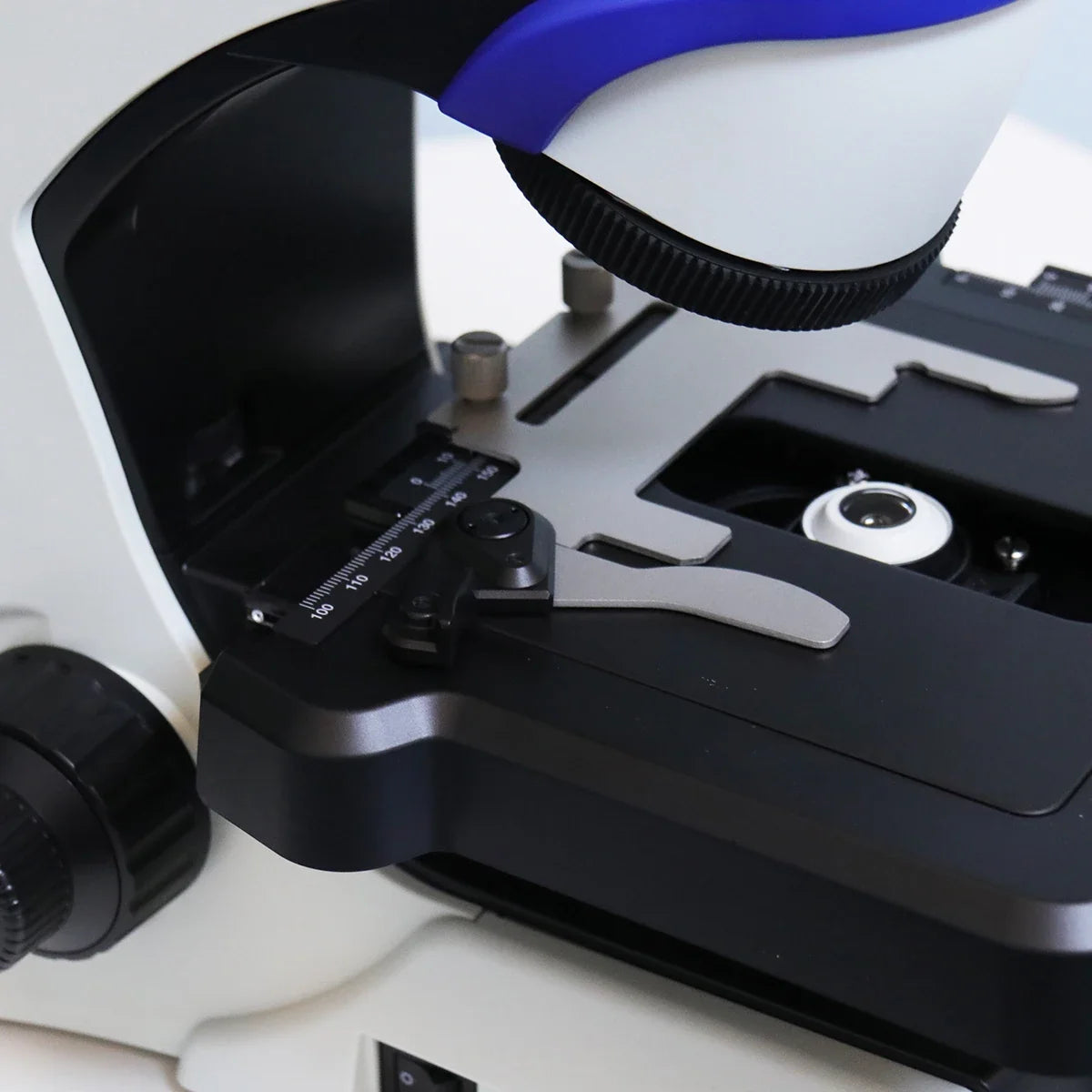

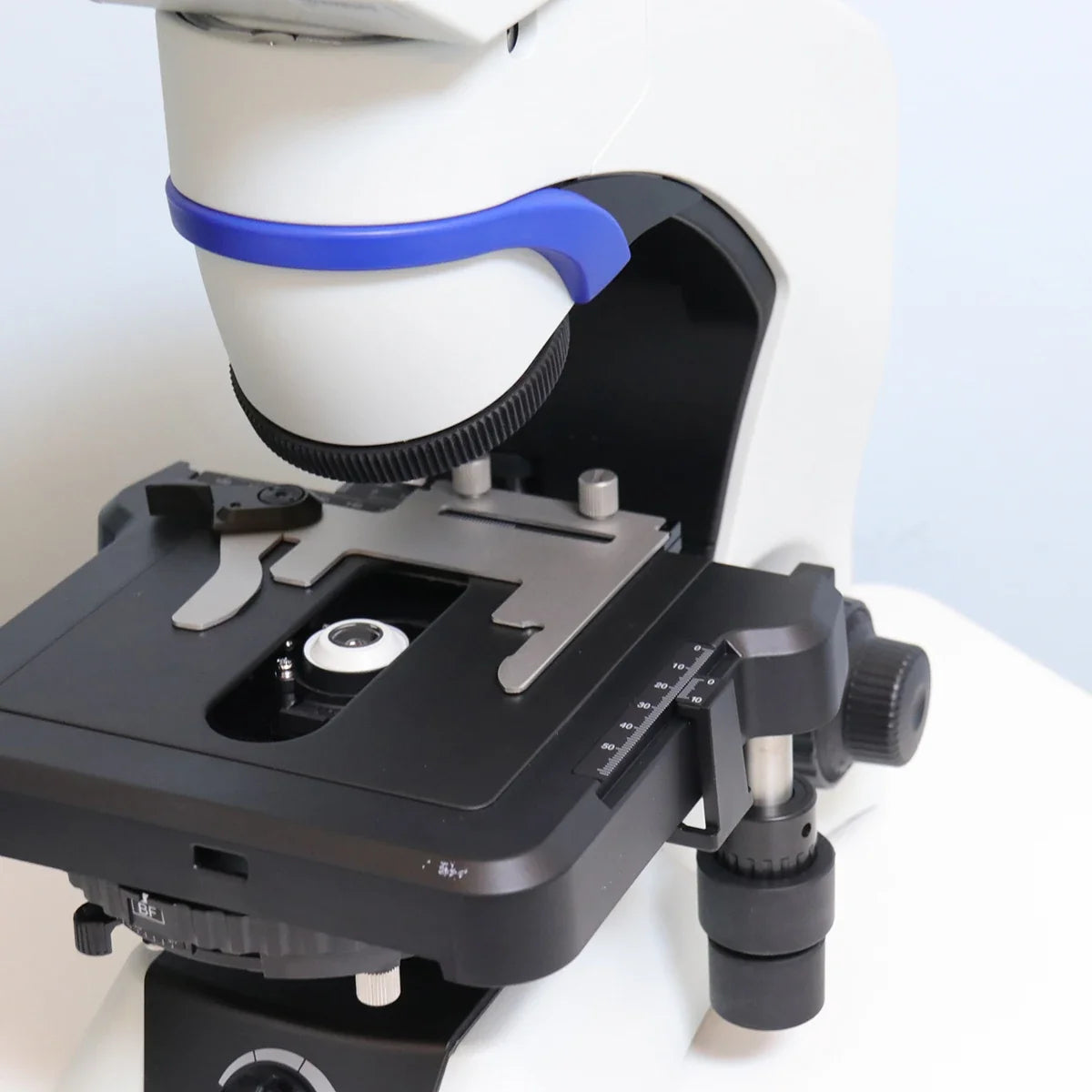

• Stage : 211 mm X 154 mm
• Observation Methods : Bright field, simple polarization, fluorescence
• Rated Voltage/Electric Current : AC 100 240 V 50/60 Hz 0.4 A
• Fluorescence Light Source : Easily add an LED illuminator
• Condenser : Abbe condenser NA 1.25 with oil immersion
• Weight : 14LBS
