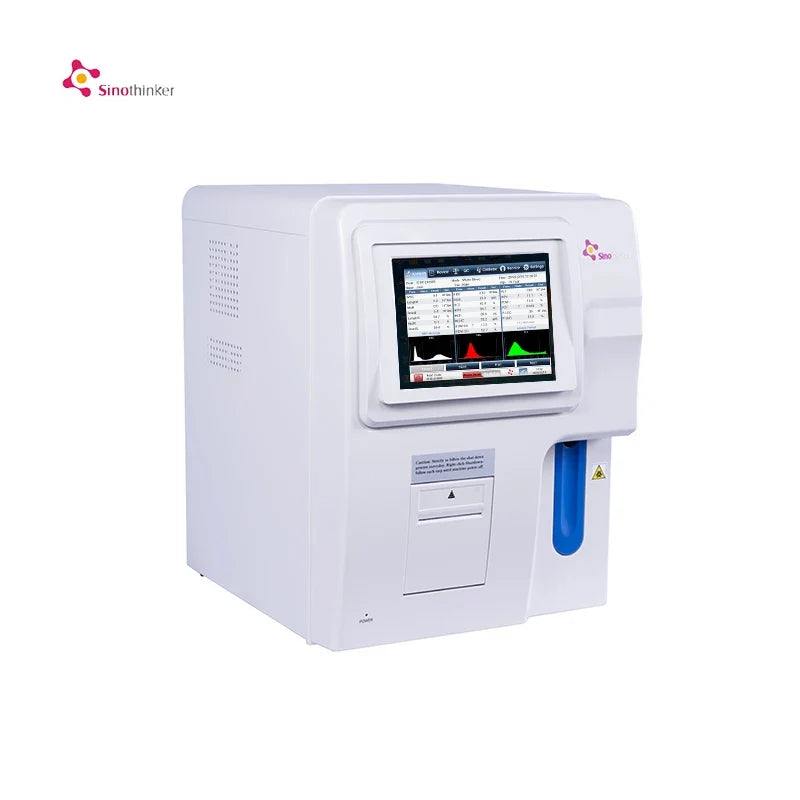

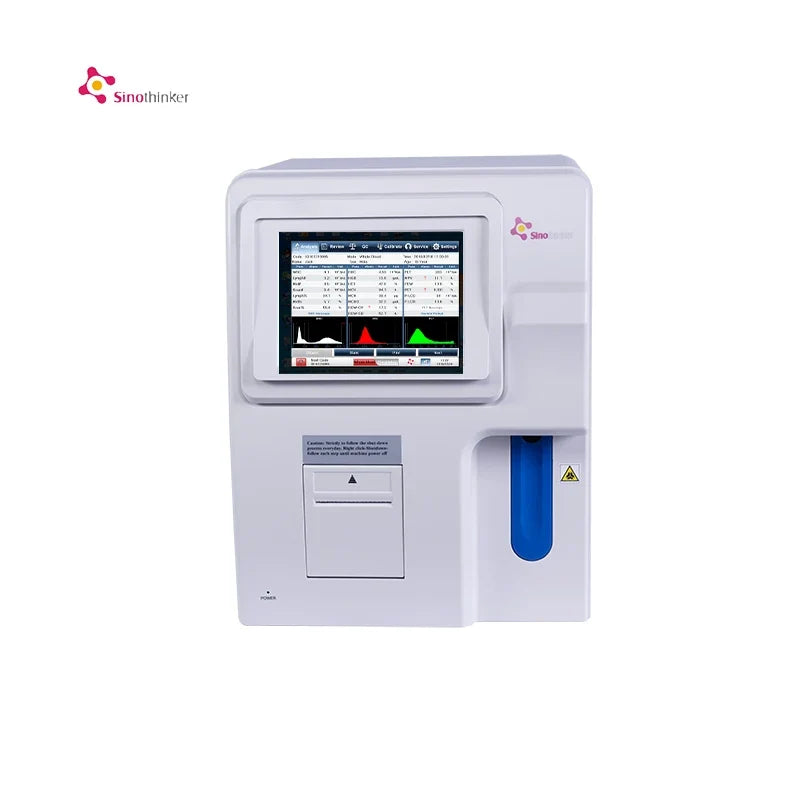

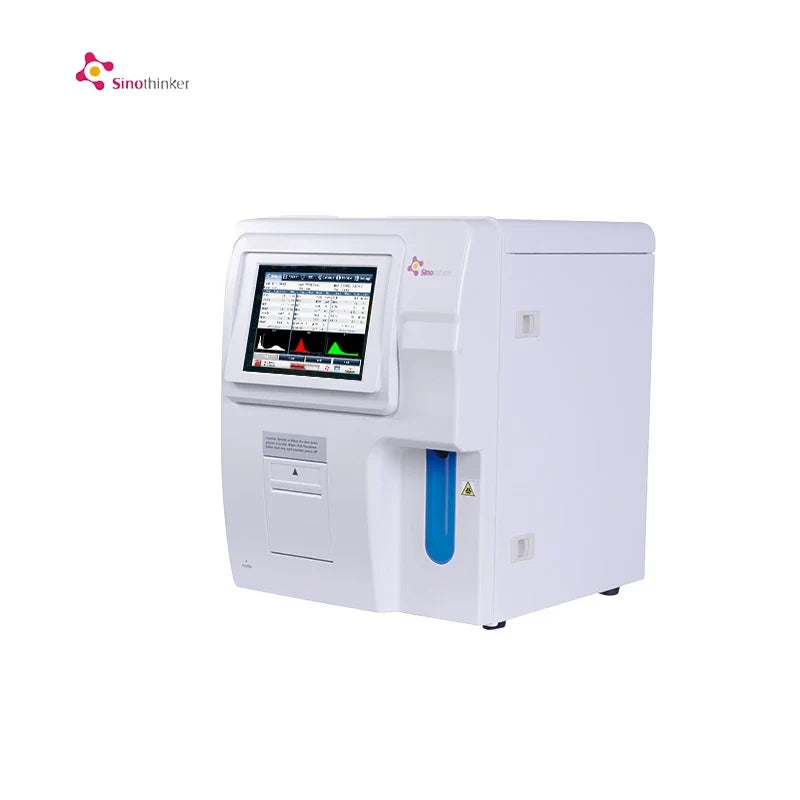

Double Channel Hematology Analyzer – Full-Auto Clinical Blood Cell Counter for Human & Animal Use

The Double Channel Hematology Analyzer is a high-performance, full-automatic clinical test machine designed for both human and veterinary use. Engineered for speed, accuracy, and flexibility, this analyzer is ideal for hospitals, animal clinics, research labs, and diagnostic centers.

🔬 Key Features:

• Dual-Channel Operation with a unique hemoglobin testing system

• Supports 3-part WBC differentiation, with 24 hematology parameters and 3 color histograms (WBC, RBC, PLT)

• Compatible with human samples and multiple animal types:
  Cat, Dog, Horse, Mouse, Rat, Rabbit, Pig, Cow, Monkey, Sheep
  Plus, 4 user-defined animal settings

⚙️ Technical Specifications:

• Throughput: Processes 60+ samples/hour, supports 24/7 operation with auto sleep/wake functions

• Sample Volume:

  • Venous/Capillary: 9.8μL

  • Prediluted Mode: 20μL

• Storage: Holds up to 100,000 test results with histograms for easy review and data management

• Screen: 8.4-inch intuitive touchscreen interface

• Print Output: Built-in graphic thermal printer with optional external printer

• Connectivity: RS232, parallel printer, and keyboard ports

• QC Control: X-B, L-J, X, SD, CV%

• Language: English

• Methodology: Electrical resistance for cell counting, hemiglobincyanide and SFT method for hemoglobin

• Operating Temperature: 18°C – 30°C; Humidity: 10–90%

• Power Supply: 110V/220V ±22VAC, 50±1Hz

• Dimensions: 33 × 38 × 43 cm

• Weight: 44 lbs (approx. 20 kg)

• Warranty: 1 Year Manufacturer Warranty

✅ Ideal For:

• Clinical laboratories

• Animal hospitals and veterinary clinics

• Research institutions

• Medical and academic facilities

This advanced full-auto cell blood counter ensures fast, reliable diagnostics across a broad spectrum of species—offering a complete hematology solution in one compact machine.

• Model Number : MSHK91106
• Methodology : electrical resistance for counting, hemiglobincyanide method
• Parameter : 3-part differentiation of WBC; 24 parameters
• work mode : double Channel+ unique hemoglobin test system
• sample volume : 9.8uL for venous and capillary mode, 20uL for prediluted mode
• screen : 8.4 inch touch screen
• QC control : X-B, L-J, X, SD, CV%
• input/output : RS232, parallel printer and keyboard
• Storage : 100000
• Throughput : 220V±22VAC, 50±1Hz
• Warranty : 1 Year
