Electric Air Blast Drying Ovens are used for a variety of applications like drying or tempering electronic components, material tests, in industrial and mining enterprises, laboratory, scientific research institute, etc for drying, baking and wax-melting, sterilization, etc.
The inner material is stainless steel, easy cleaning. the shell is made of high quality steel, beautiful and innovative.

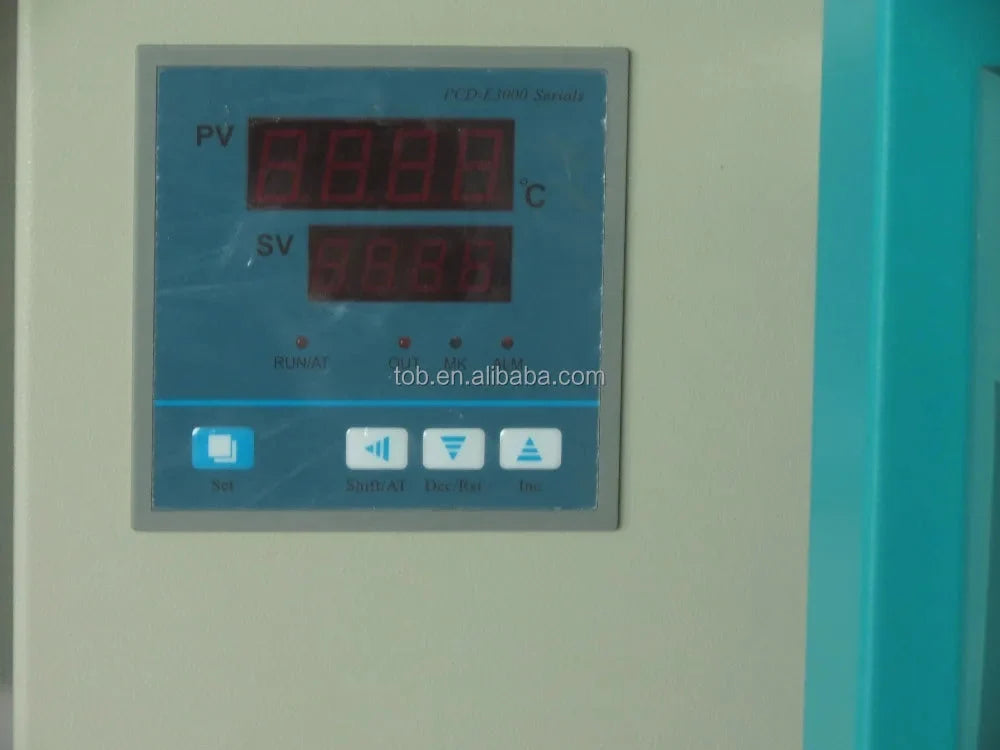

Temperature control is microcomputer intelligent digital technology controller with over-temperature alarm and digital display meter. high-precision temperature control.
Hot air circulating system consist of air blower and suitable air flue, continuous operation at high temperature, improve temperature uniformity.
Independent temperature limit alarm system, it will be automatically interrupted if over the limit temperature, so as to guarantee the safe of experiment and operation without any accident.(Optional)
Have RS485 interface which could connect the recording instrument and computer, can record the change of temperature and humidity parameters. (optional)
Technical parameters:
Source voltage
220V 50HZ
Power
750W
Warranty
One Year limited warranty with lifetime support
Work box size(L*W*H)
420*350*350(mm)
Oven size(L*W*H)
710*520*520(mm)
Temperature range
RT+10~250℃,
Temperature resolution
±0.1℃
Temperature fluctuation
±0.5℃
Temperature controller
30 segment programmable temperature controller.
Self tuning function. The timing time can up to 9999 minutes
Sensor
A grade PT100 Platinum resistance
Heat pressure layer
High quality insulation system, inner box, inner shell,ultra-fine glass fiber,
Aluminum foil aluminum reflector, air - interlayer from inside to outside.
Observe window
The box door are provided with double-layer tempered glass observation window,
can observe the test result easily
Heating mode
Electric heating. Nickel chromium alloy electric heater
Safety installation
With over temperature protection, grounding etc.
Wind duct
Forced air circulation channel, ensure that the studio uniform temperature;
air duct provided with a heater, temperature sensor
Adjustable air intake
The control box and outlet air quantity, the casing is provided with an exhaust
can close or adjust discharge mouth to change wind effect.
Shelf
2pcs
Timing range
1-9999mins
Type : Vacuum Drying Equipment, Li-ion battery lab research equipment
Application : Chemicals Processing
Warranty : 1 Year, One Year Limited Manufacture Warranty with Life Time Support
Weight (KG) : 40
Warranty of core components : 6 Months
Core Components : Other
Related industry : Lithium ion battery
Machine name : blast drying oven dhg 9053A
Source voltage : 220V, 50HZ
Power : 750W
Temperature range : RT+10-250℃
Temperature resolution : 0.1℃
Temperature fluctuation : ±0.5℃
MEUBON

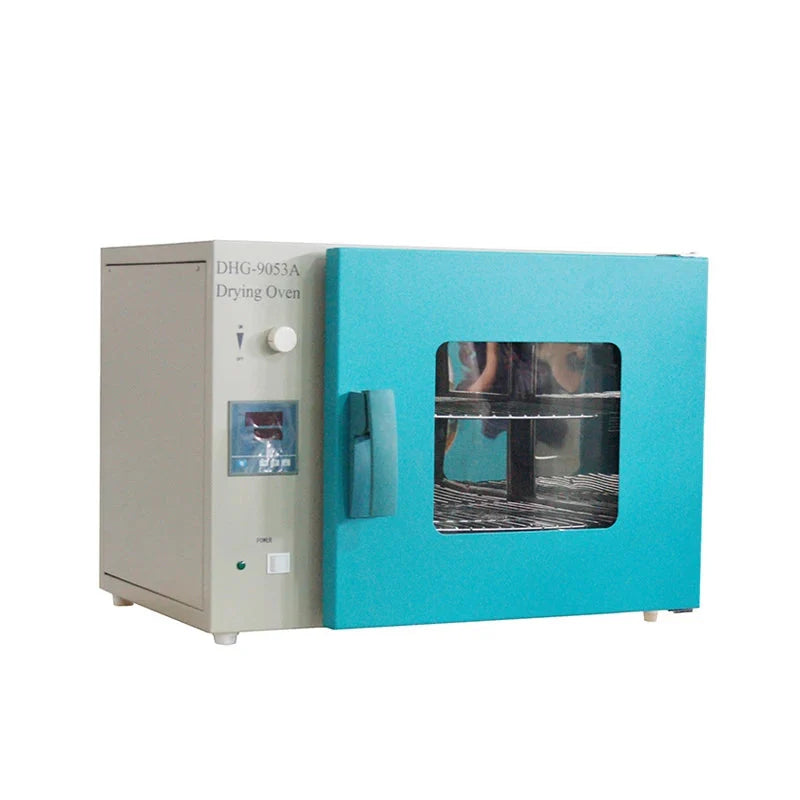

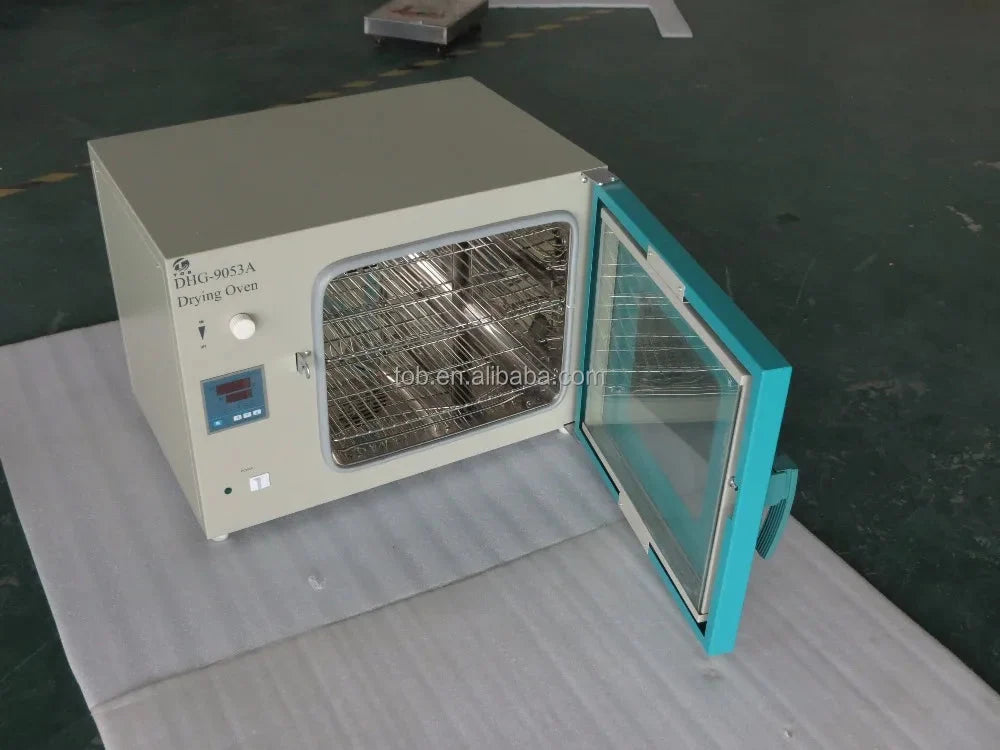

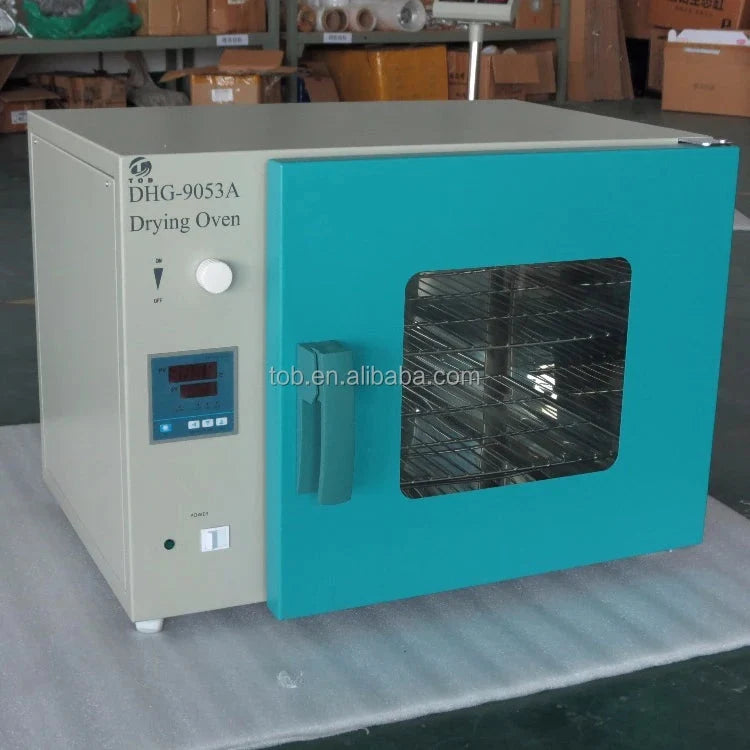

Electric Air Blast Drying Oven I Model DHG9053A
Regular price$1,150.00 USD
Regular price
$1,200.00 USD
Sale price$1,150.00 USD
