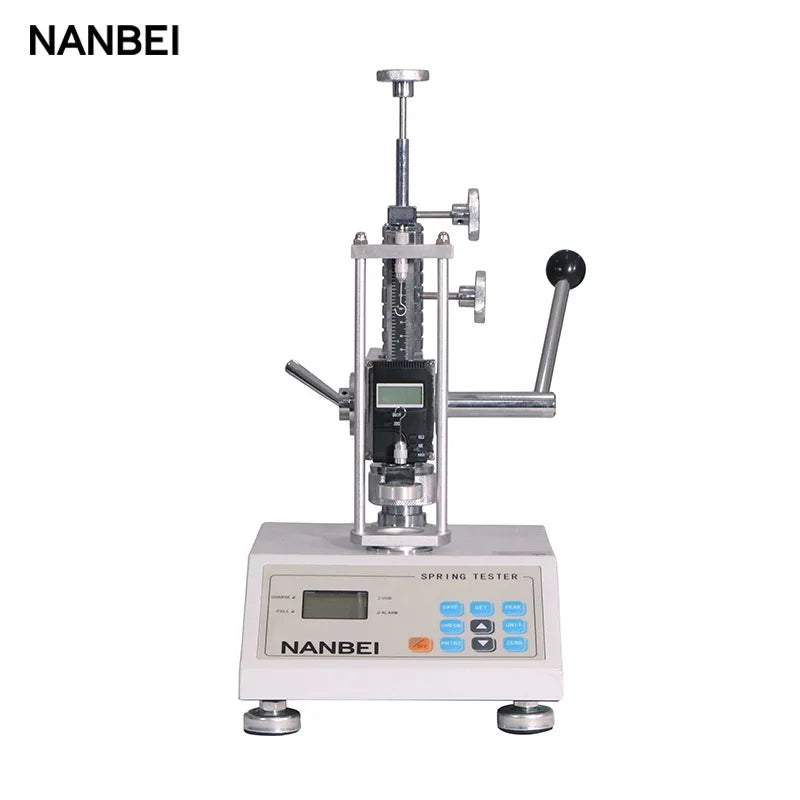

Electronic Digital Manual Valve Tension Spring Tester

Product Description

The electronic digital manual valve tension spring tester is a specialized device designed to test the tensile and compression deformation and load characteristics of springs. Ideal for evaluating the work load of tensile and compression springs of a certain length, it is also suitable for testing the elasticity of springs, rubber, and other elastic devices. The tester is available with or without a built-in printer.

Features:

1. High Precision and Resolution: Precision of 1 with a minimum reading of 0.001N.
2. Display Options: Real-time, peak, and automatic peak display modes.
3. Unit Conversion: Converts between N, kg, and lb.
4. Peak Hold Function: Captures and maintains the test peak.
5. Comparison Function: Allows free setting of upper and lower limits with automatic peak alarm indicated by lights.
6. Automatic Peak Function: Peak hold time can be set from 1 to 99 seconds.
7. Auto Shutdown: Automatically shuts down after 0 to 99 minutes of inactivity (0 seconds means no auto shutdown).
8. Gravity Acceleration Setting: Adjustable according to different regions (9.000 to 9.999).
9. Calculation Function: Connects to a computer for automatic calculation of maximum, minimum, and average values.
10. Built-in Printer: Prints up to 99 sets of stored measurement data, including maximum, minimum, and average values.

Specifications:

• Max Testing Load: 10N (available in 10N, 30N, 50N, 100N, 500N, 1000N, 5000N)
• Minimum Resolution: 0.001N
• Usage: Suitable for spring tension and compression, spring push and pull force testing.
• Display: Digital LCD display.
• Applications: Ideal for testing springs, sofas, rubber, and other tensile and compressive loads.
• Warranty: 1 Year
• Conversion Units: N, kg, lb
• Advantages: High precision, automatic, intelligent, motorized.

Upgrade your testing capabilities with our high-precision electronic digital manual valve tension spring tester, perfect for a wide range of applications in measuring tensile and compressive loads.

• Warranty : 1 year, 1 Year
• Model Number : MNTH10
• Power : Electronic
• Product name : Electronic digital manual valve tension spring tester
• Max testing load : 10N
• Minimum resolution : 0.001N
• Usage : for spring tension and compression ,spring push and pull force testing
• Display : digital LCD display
• Application : for spring,sofa,rubber,etc.tensile and compress load testing
• 3 units of conversion : N, kg, lb
• Advantage : High precision, manufacture supplier,automatic,intelligent,motorized
• All load we can supply : 10N,30N,50N,100N,500N,1000N,5000N
