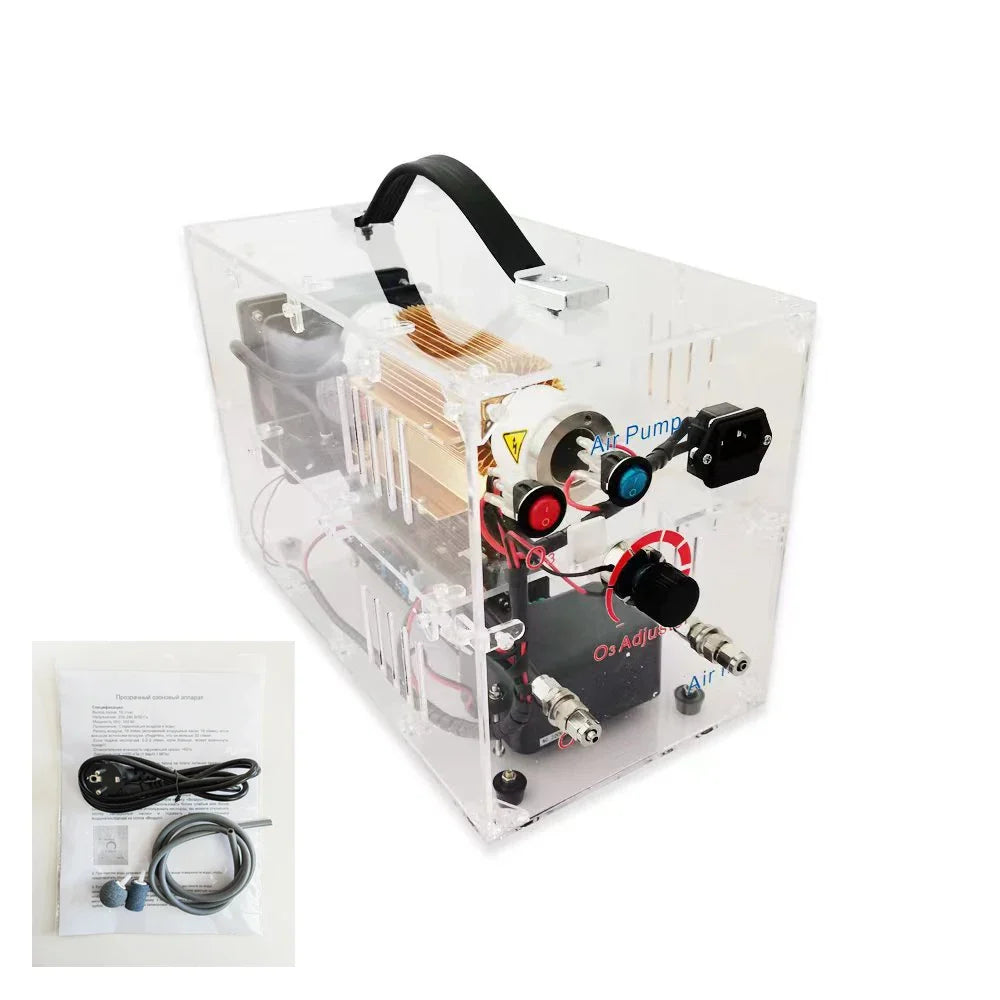

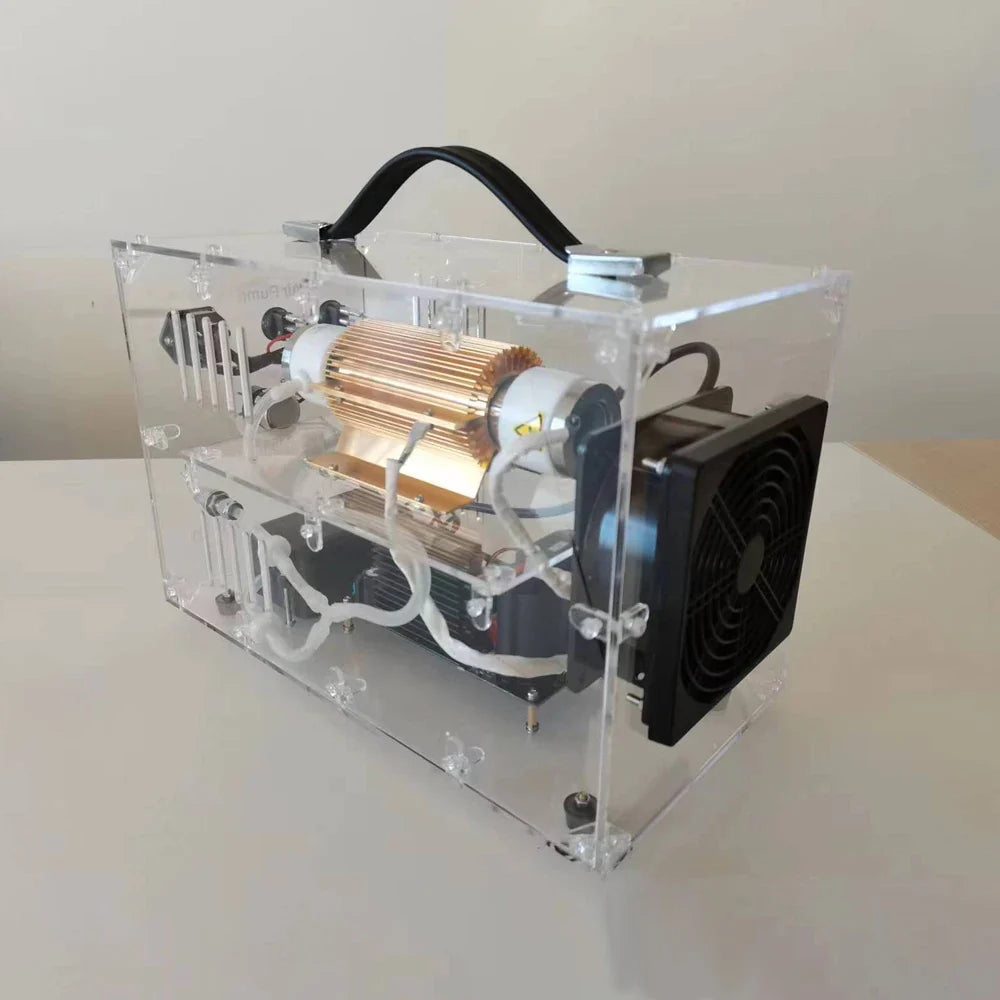

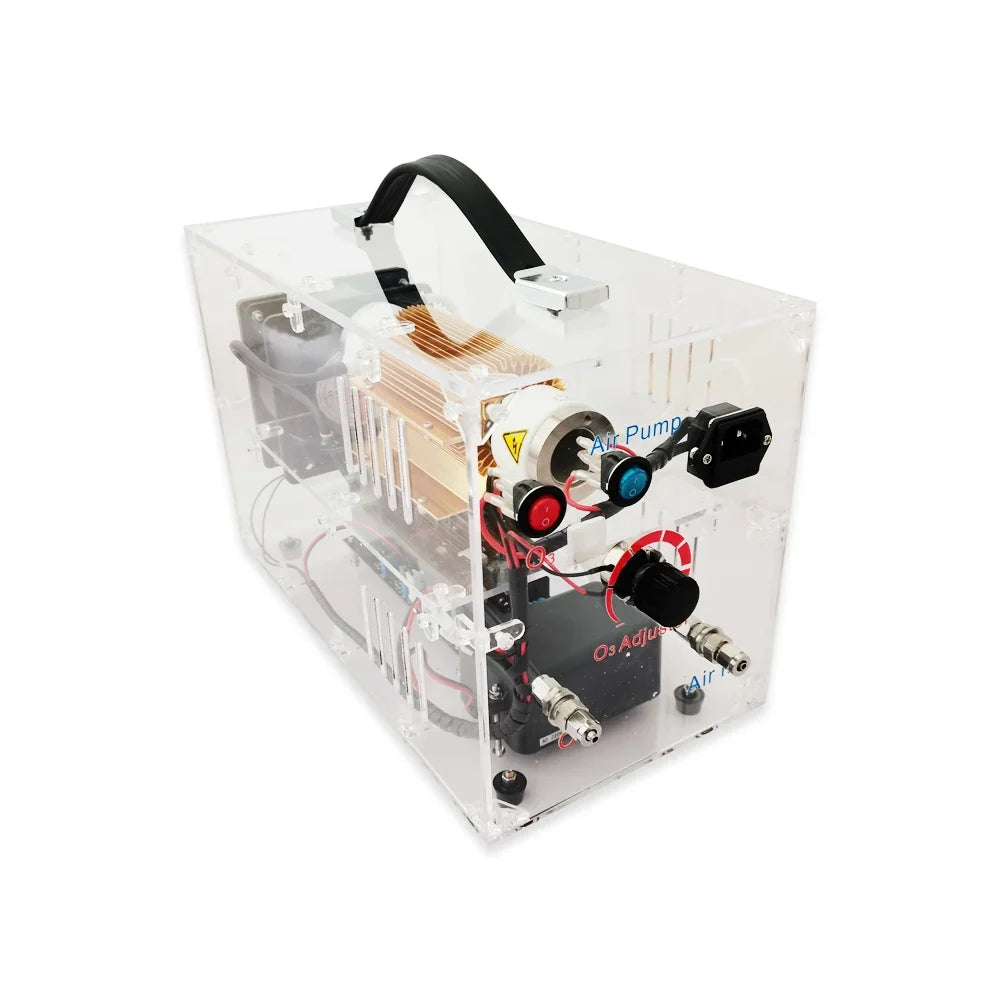

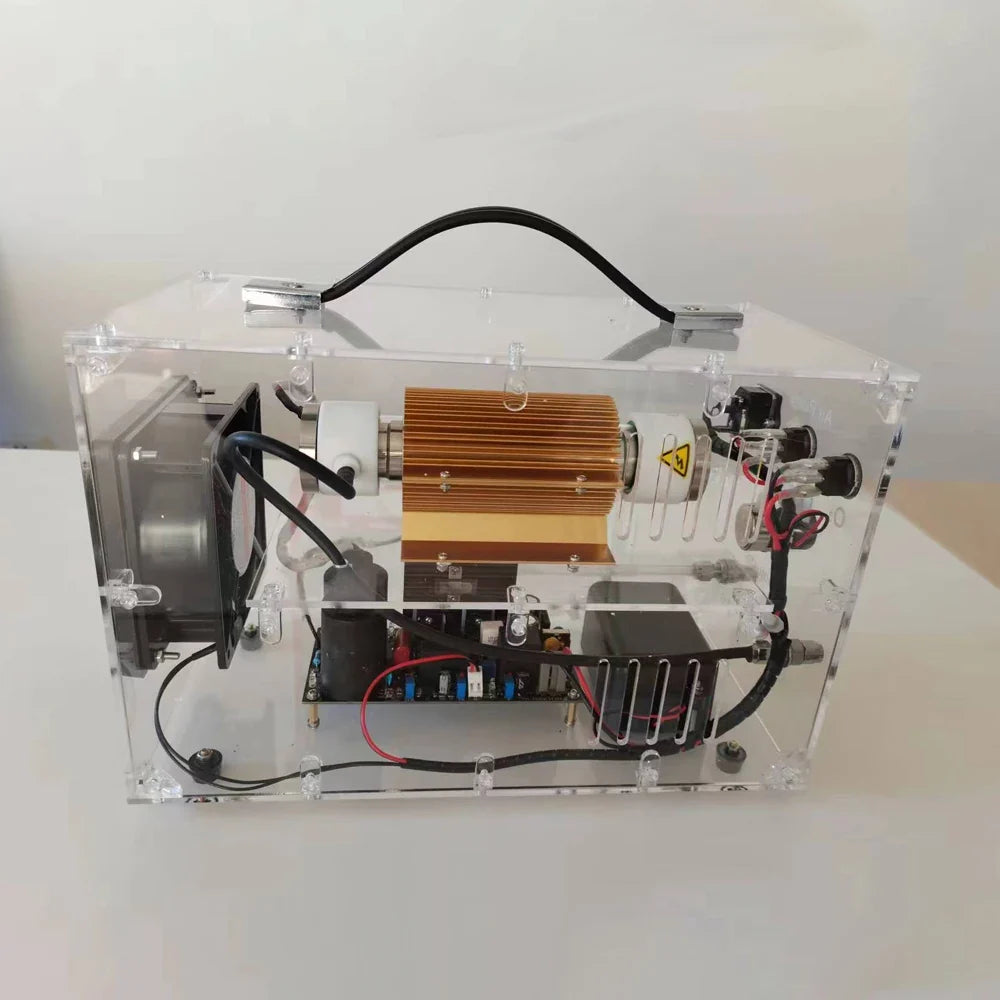

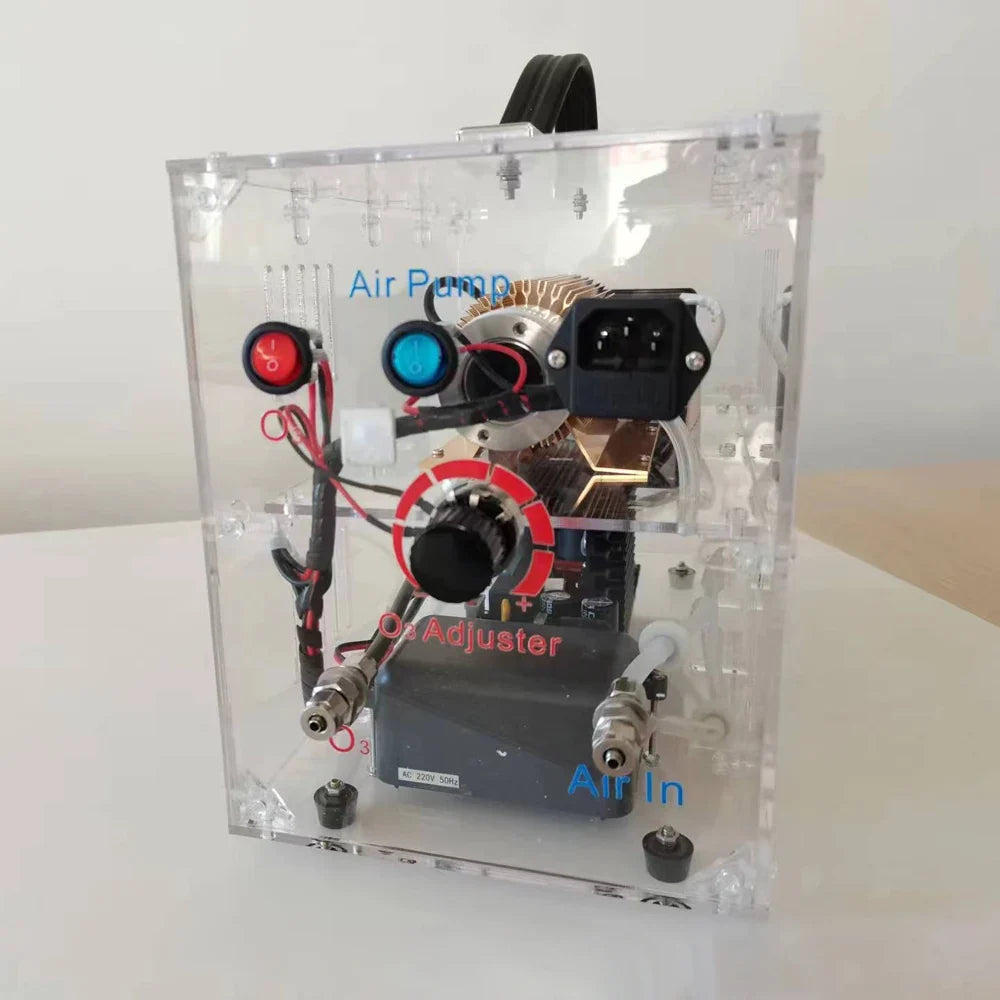

Experience Advanced Air Purification: Our 10g Adjustable Visible Ozone Machine offers flexibility with built-in air pump or optional external feeding sources.

Here are the specifications:

• Input voltage: 220V 50/60HZ
• Output voltage: 3KV
• Ozone output: 10g/hr
• Oxygen input: Recommended oxygen flow less than 2L/min
• Ambient air input: Recommended air flow less than 30L/min
• Power consumption: Adjustable from 13W to 65W
• Safety features: Overheat protection activates when tube temperature exceeds 65°C; safeguards against overcurrent, short circuit, and open circuit
• Cooling mechanism: Air cooled with a minimum of one 12012038mm fan to cool both the power supply and the tube
• Gas pressure: Less than 100kpa (1bar/0.1Mpa)
• Gas temperature: Less than 30°C
• Surrounding humidity: Less than 70%
• Surrounding temperature: 5-20°C

Features:

1. Visible Parts: Easily identify any issues with visible components, including high voltage corona discharge.
2. Safe Design: A safe distance of 12mm between the external electrode and the white PTFE terminal prevents moisture accumulation and potential burning.

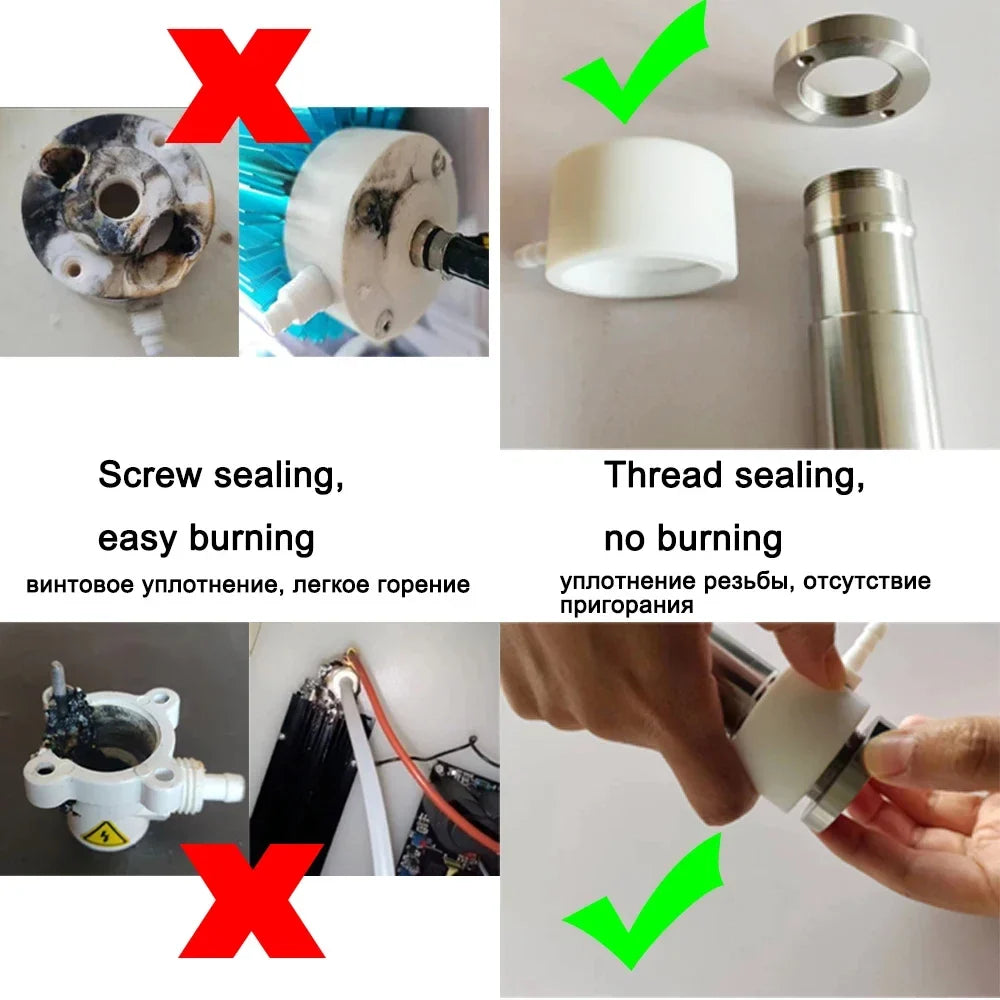

3. Thread Seal: Internal electrode and PTFE terminal are sealed by thread, keeping them apart and preventing burning.
4. Easy Installation: Supporter edge is 6mm wider than the sealing edge, simplifying installation compared to traditional designs.
5. Corrosion Resistance: Terminal sealing ring and gas nozzles made of 304L stainless steel prevent electrochemical reactions in high humidity environments.
6. Durable Construction: White terminal and gas nozzles crafted from pure PTFE ensure longevity and resistance to oxidation.
7. Enhanced Efficiency: Internal silica tube thickness of 1.5mm reduces power consumption and increases ozone output, while a narrow discharge gap of 0.5mm maximizes efficiency.
8. Water Quality Requirements : Municipal Water
9. Installation : Table Type
10. Function : Direct Drink
11. Power (W) : 100
12. Material : ABS
13. Purifying Position : Terminal Purification
14. Type : Ozone Water Purifier
15. Water treatment machine Type : Water Purifier
16. Use : Under Sink
17. Ozone output : 10g/h
18. if air feed : Air flow less than 20L/min
19. if oxygen feed : Oxygen flow less than 2L/min
20. Cooling Style : Air cooled
21. Feeding sources : Built in air pump or external air pump or external oxygen maker
22. Voltage : 110V or 220V
23. Net Weight : 10Lbs
24. Gross Weight : 12lbs
25. Machine size : 345*180*228mm
