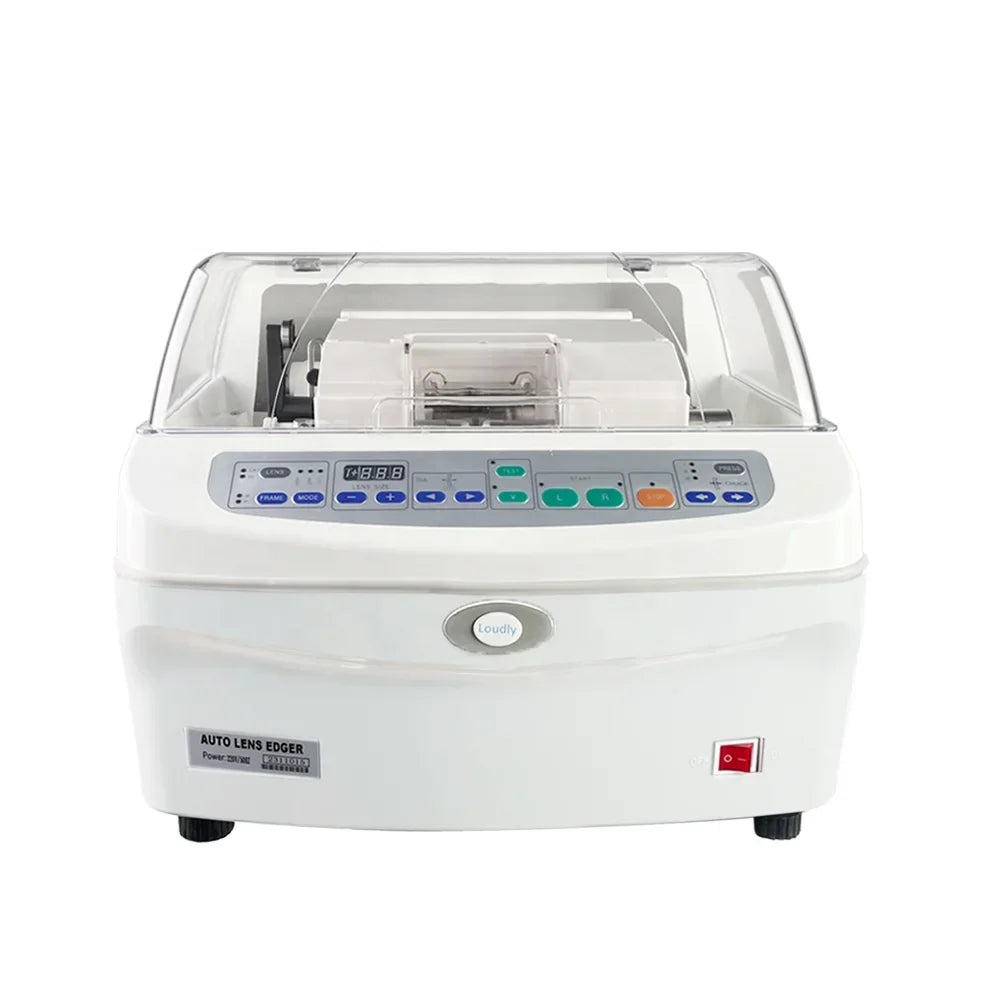

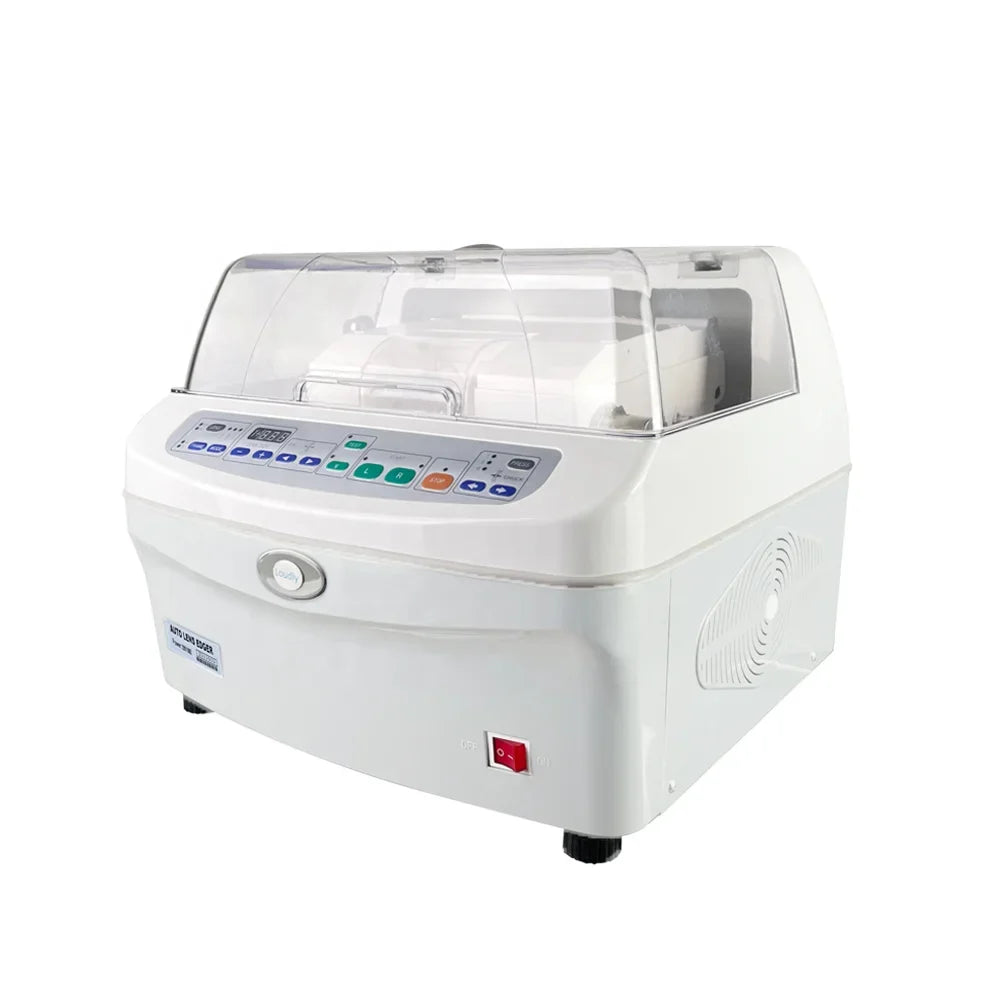

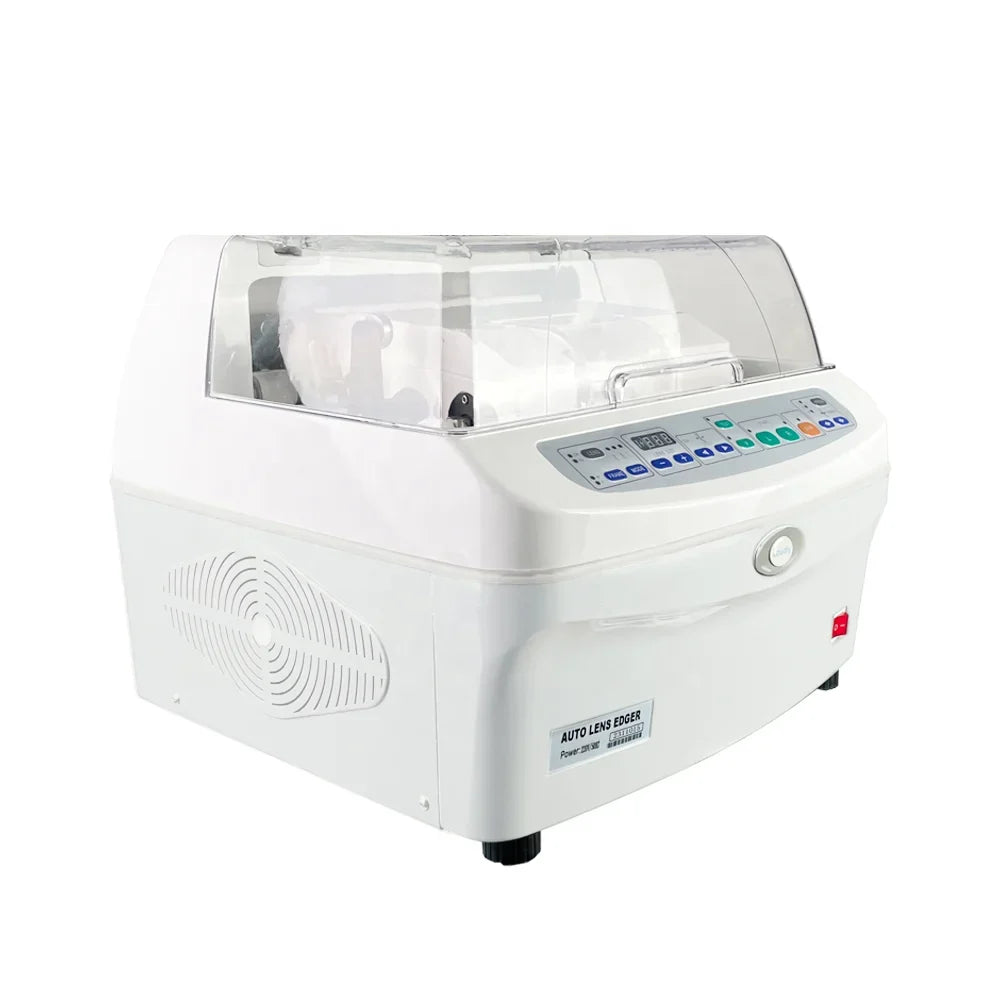

Experience precision lens crafting with the Auto Lens Edger MSJG5100, equipped with advanced features for optimal performance:

Main Machine Features:

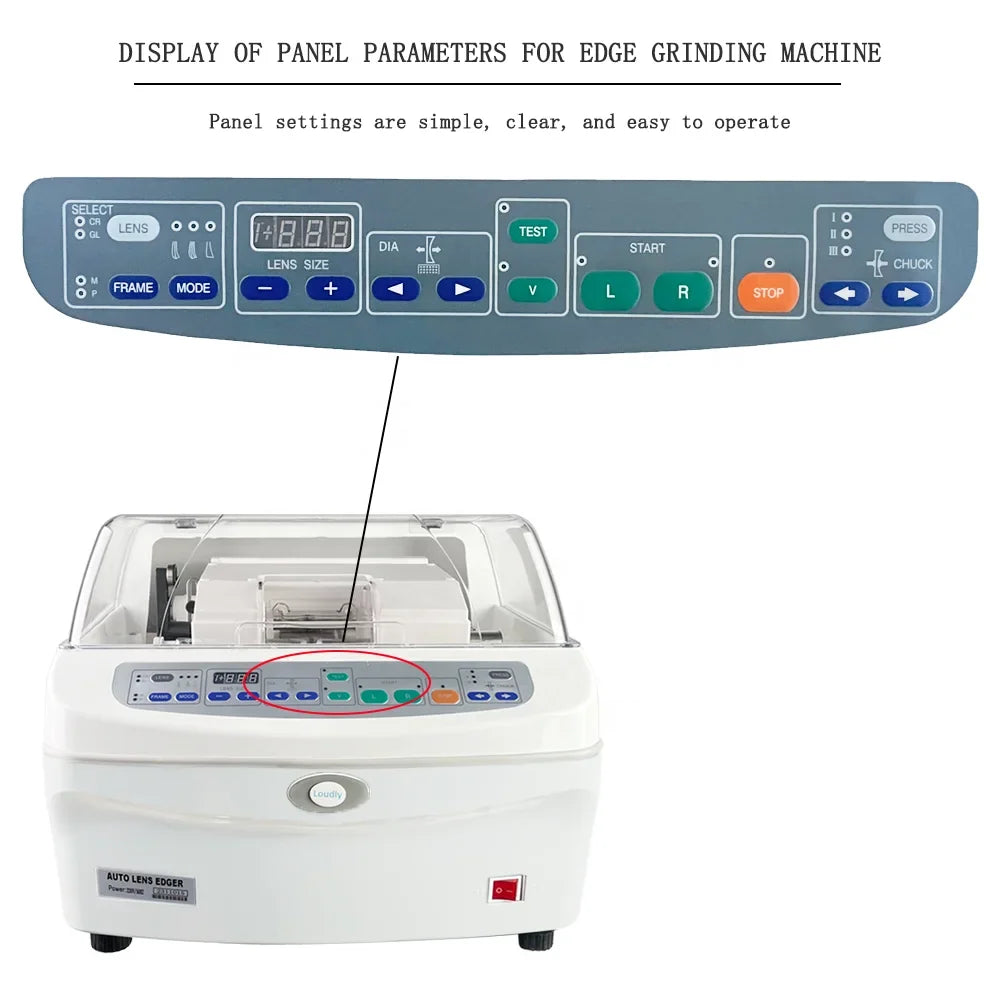

1. LCD Digital Display: Easily monitor and adjust settings for enhanced control.
2. Gearless Lens Clamp: Securely hold lenses without the need for gears, ensuring stability and accuracy.
3. 3F Cut-Grinding Pressure: Achieve precise grinding results with adjustable pressure settings.

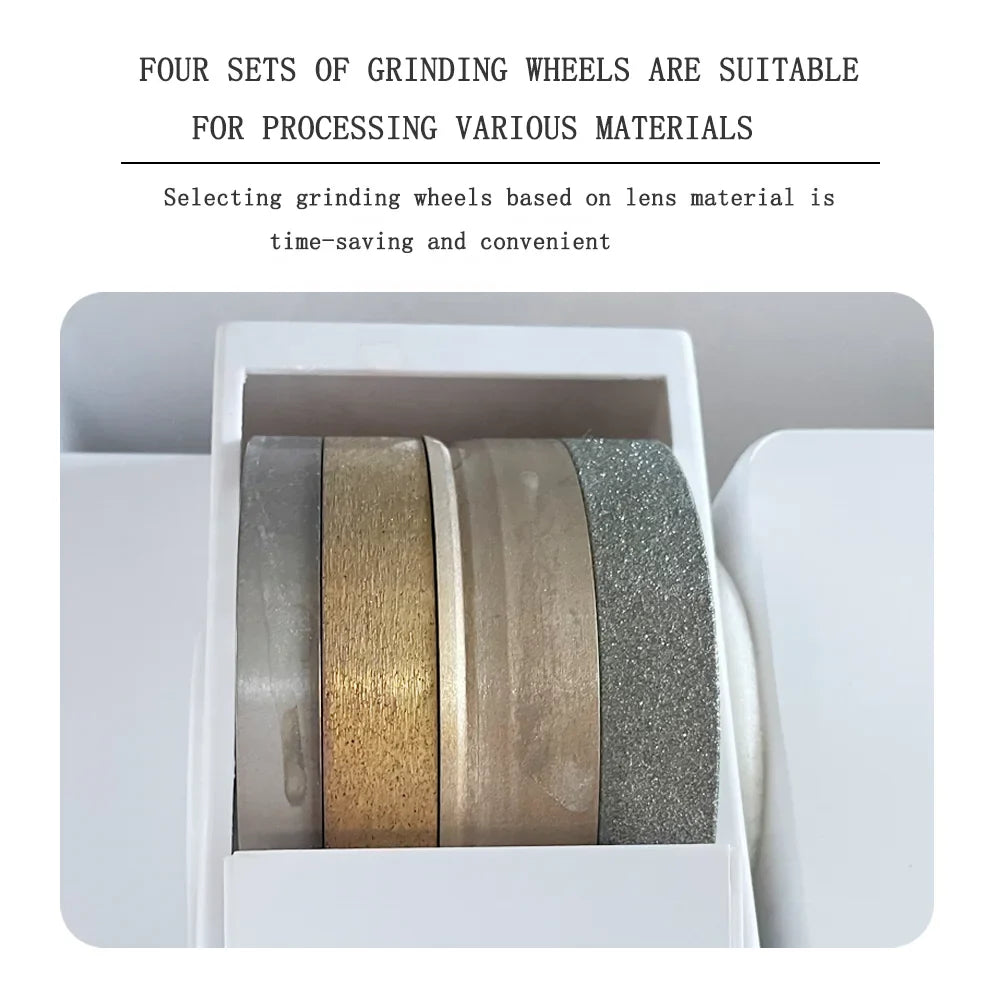

4. Premium Grinding Wheel: Utilize the best quality grinding wheel for superior lens finishing.

System and Main Parts:

• Auto-Shadowing Cut-Grinding System: Ensures optimal pressure angle, axis power, and radial power for exceptional results.
• High-Quality Diamond Wheels: Adopted from international materials and technology, guaranteeing top-notch performance.
• Computer-Controlled Precision: Geometry shape, tip shape, cut-grinding power, speed, lens clamp, and more are meticulously controlled for quality assurance.
• Expandable Functionality: The computerized system offers a technology space for future upgrades and expansions.

Specifications:

• Cut-Grinding Clamp Pressure: 0.5-0.78MP
• Workable Diameter: 23-80mm
• Glossiness: BVII
• Grinding Shape: Inward(Face) 96%; Outward 99%
• Noise Level: 60 dB
• Grinding Wheel Maximum Linear Velocity: 15m/Sec. (3 Shift Gears)
• Grinding Wheel Diameter: 100-125mm
• Grinding Wheel Chamber: 60-100mm
• Power Supply: AC 110V 220V/50-60Hz
• Main Machine Power: 350 W
• Working Environment Temperature: 5°C to 40°C
• Dimension: 488×480×410 mm
• Weight: 130LBS

Elevate your lens crafting capabilities with the precision and efficiency of the MSJG5100 Auto Lens Edger.
