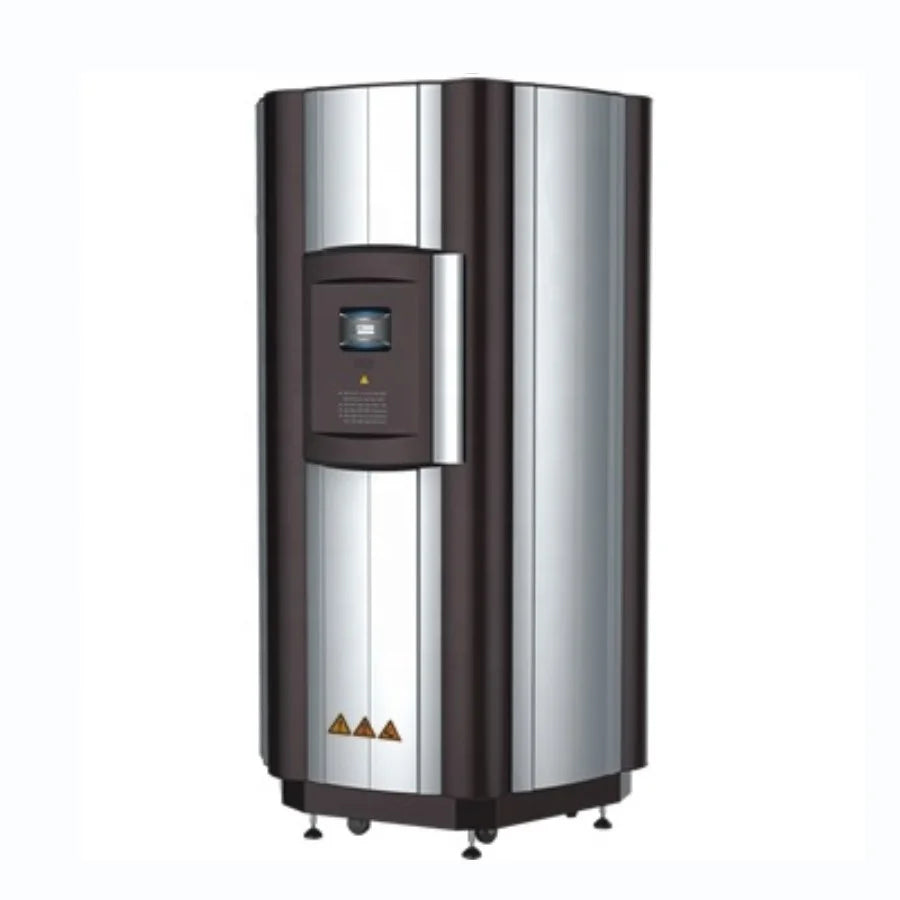

Full Body UV Phototherapy Machine for Vitiligo, Psoriasis, and Eczema

Features

• Specialized Lamp Source: Equipped with a specialized lamp pipe that ensures stable performance and longevity.
• Precision Control: Micro-computer controls radiation dosage and time, ensuring precise treatment.
• Powerful Radiation: Features 40 radiated lights (100W each) with multiple combination modes for versatile treatment options.
• UVA & UVB Flexibility: Can operate UVA and UVB independently or simultaneously.
• High-Intensity Output: High radiation intensity shortens treatment periods and enhances effectiveness.

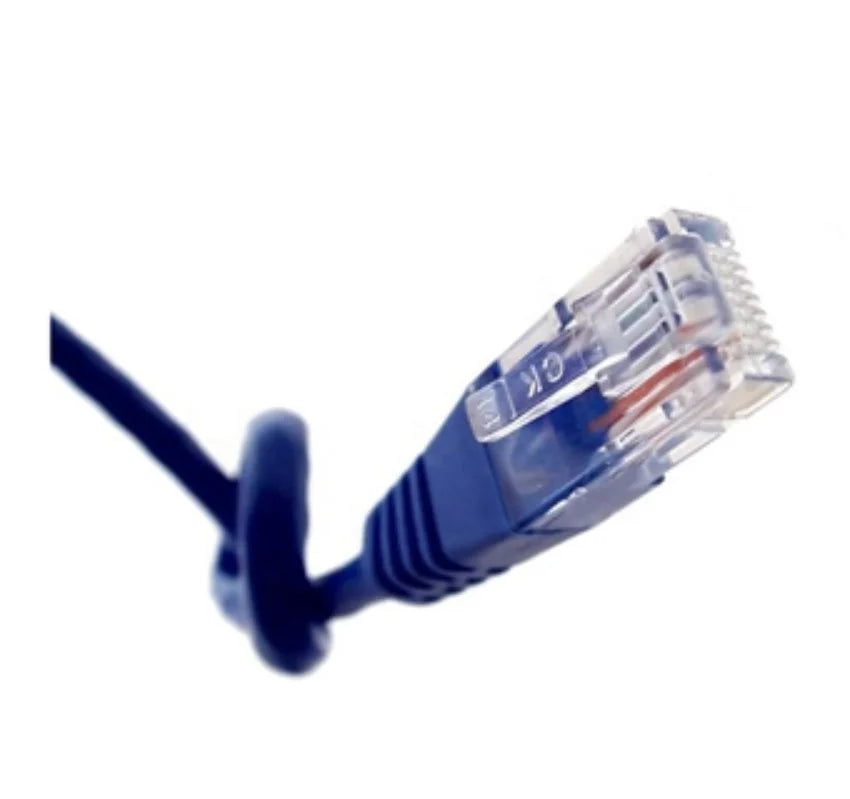

• Connectivity and Control: Capable of connecting to a computer for remote control, patient case management, and browsing.
• Electric System Control: Fully controlled by an electric system for simple operation and high security.
• Dual Monitoring: Equipped with both software and hardware monitoring functions to ensure patient safety.
• Anti-Interference Technology: Special anti-jamming technology ensures normal operation in strong magnetic fields.

Specifications

• Item Name: Full Body UV Phototherapy Machine for Vitiligo, Psoriasis, and Eczema
• Work Environment:
  • Temperature: 0~40°C
  • Relative Humidity: >85%
  • Atmospheric Pressure: 700~1060 hPa
• Exterior Configuration:

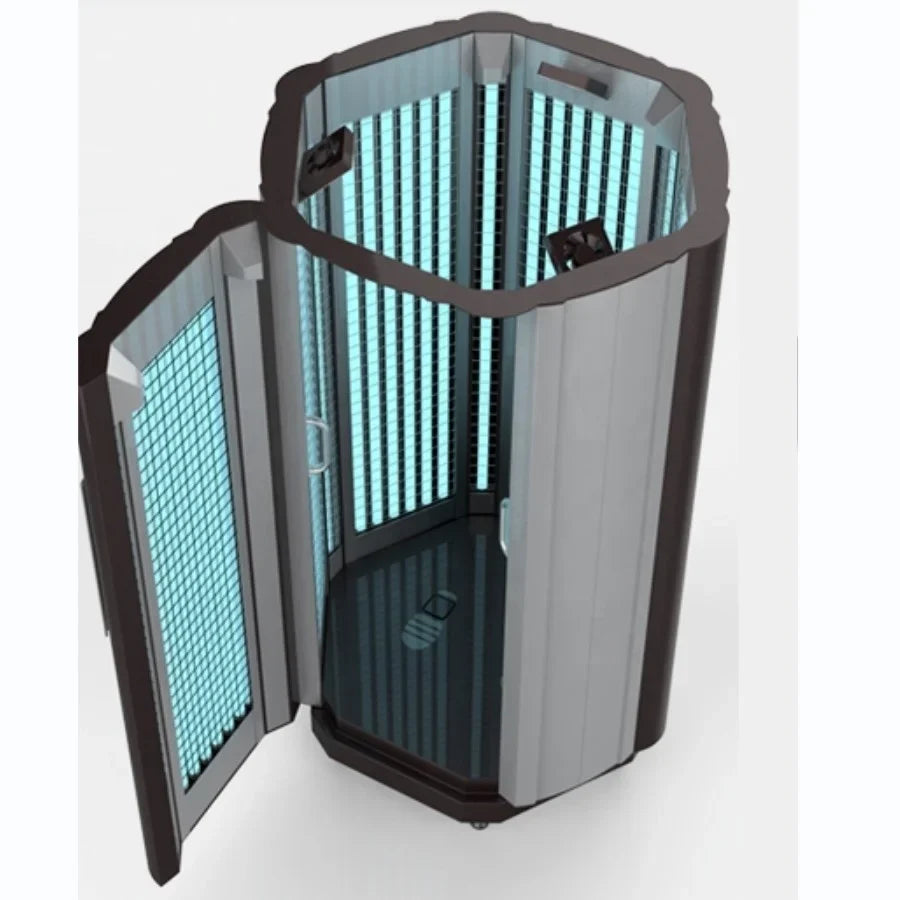

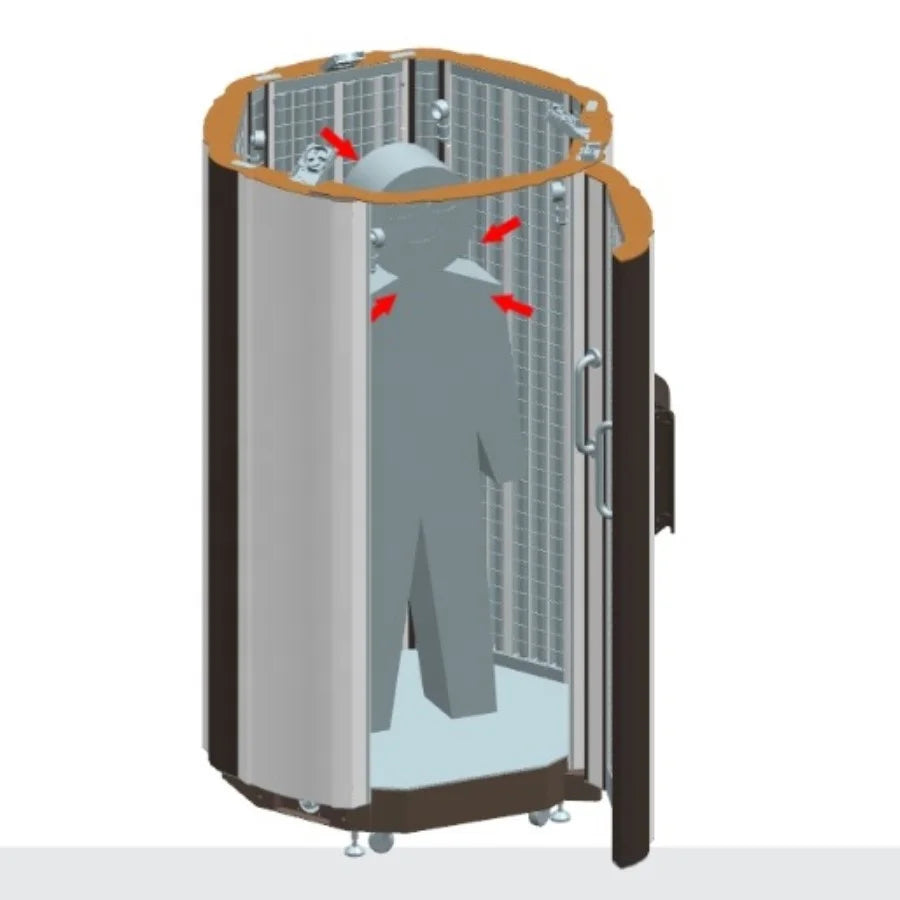

  • Hexagonal construction with special protective screening
• Outer Size: 1288mm × 1368mm × 2200mm (L × W × H)
• Effective Irradiation Area: Entire body
• Control Method and Functions:
  • Separate or simultaneous use of UVA and UVB
  • LCD display of dosage, time, and intensity with an English menu
  • One-key operation, auto alarm function, audio prompts, and memory function
• Lamp Quantity: 40 Philips lamps
• Packing Size:
  • Four wooden boxes:
    • Top cover: 120 × 118 × 35 cm, 116 kg
    • Host: 208 × 92 × 35 cm, 272 kg
    • Host door: 208 × 58 × 61 cm, 136 kg
    • Lamp tube: 110 × 48 × 58 cm, 41 kg
• Gross Weight: 1200 lbs

• Properties : Diagnosis & Injection
• Display : 8 inch LCD screen
• Work Voltage : AC 220V±10%,50Hz ± 2% / 110V ±10%, 60Hz ±2%
• Effective area of irradiation : All body
• Radiant light source : special UV light tube, average using life more than 3000 hours
• Outer size : 1288mm*1368mm*2200mm(L*W*H)
• Lamp quantity : 40 pcs of lamp ,PHILIPS
• Power rating : 5500W
• Output waveform : UVA or UVB or UVA+UVB
• Classification : Class I Type B
• Application : hospital and clinic
