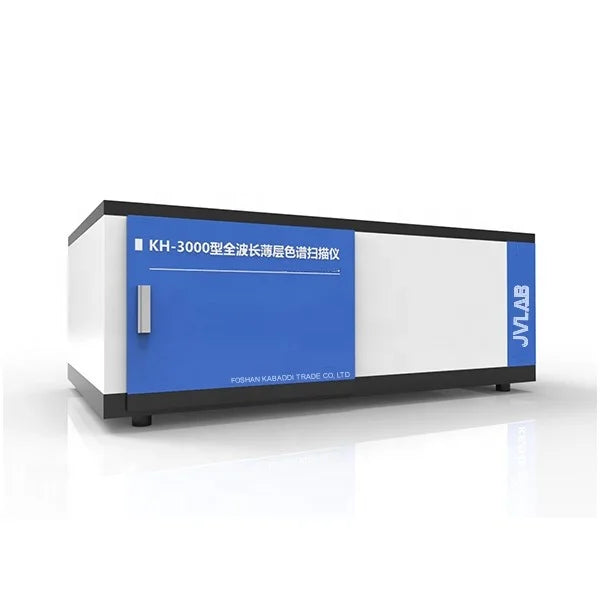

Full-Wavelength TLC Scanner for Traditional Chinese Medicine (TCM) Quality Control

The full-wavelength TLC scanner is a high-performance tool designed for the modernization of Traditional Chinese Medicine (TCM) quality control and the development of new Chinese medicines. This advanced Thin-Layer Chromatography (TLC) apparatus ensures precise and efficient analysis with automated features that simplify the process.

Key Features:

1. Automatic Light Source Calibration: Ensures consistent performance by alerting users to replace light sources when energy is insufficient.
2. Grating Monochromator Correction: Automatically maintains wavelength accuracy for reliable results.
3. Dual Light Source: Deuterium and halogen tungsten lamps automatically switch to optimize performance.
4. Ultraviolet Spectral Scanning: Enables detailed analysis of unknown substances and wavelength optimization.
5. USB Data Transmission: Fast and efficient data transfer for large datasets.
6. Full Automation: Complete computer control with an intuitive workstation for seamless operation.
7. Wide Wavelength Range: Provides continuous UV-visible spectra from 200 to 850 nm for diverse applications.
8. High-Resolution Monochromator: Features 1200 lines/mm holographic grating for excellent spectral purity and resolution.
9. GMP/GLP Compliance: The workstation manages methods and operators, ensuring compliance with regulatory standards.
10. Preset Analysis Methods: Ready-to-use quantitative analysis methods based on TCM standards from 2000 to 2015.

Technical Specifications:

• Measurement Methods: Absorption method, optional fluorescence method.
• Spectral Range: 200 nm to 850 nm (continuously adjustable).
• Light Sources: Tungsten halogen lamp, xenon lamp (automatic switching).
• Monochromator: 1200 lines/mm holographic grating.
• Spectral Bandwidth: 10 nm.
• Wavelength Accuracy: ±1 nm.
• Minimum Resolution: 25–50 μm.
• Chromatography Plate Size: 200 mm × 200 mm.
• Scanning Speed: 0–120 mm/s.
• Operating System: Compatible with WIN7 (32-bit) and WIN10 (64-bit).
• Power Interface: USB, 220V, 300W.

Optional Accessories:

• SP-20E Automatic TLC Sampler
• TD-II Automatic Thin Layer Boarding Machine
• TS-II Ultra-Fine Electric Thin Layer Sprayer
• GoodSee-20E TLC Imaging System
• TK-10 Electric Expander

Applications: The TLC scanner is ideal for analyzing a wide range of substances, including:

1. Traditional North American Medicines: Panax notoginseng, Astragalus membranaceus, Andrographis paniculata, and more.
2. Pharmaceuticals: Liuwei Dihuang pills, Huanglian Shangqing pills, Daochi pills, and others.
3. Biochemical Drugs: Aspergillus toxin, macrolides, proteins, antibiotics, nucleic acids, and enzymes.

This powerful, full-wavelength TLC scanner is an essential instrument for precise and reliable analysis in TCM quality control and pharmaceutical research.

• Warranty : 1 year
• Model Number : STLCMH30
• Spectral range : 200nm~850nm
• Light source : Tungsten halogen lamp, xenon lamp
• Monochromator : Holographic grating
• Spectral bandwidth : 10nm
• Wavelength accuracy : ±1nm
• Min. resolution : 25~50μm
