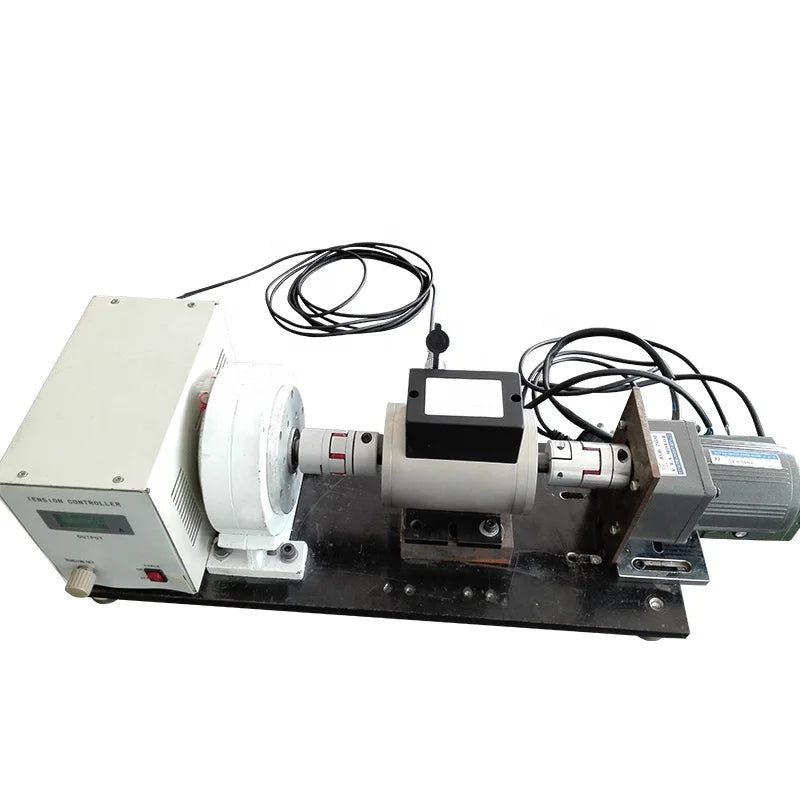

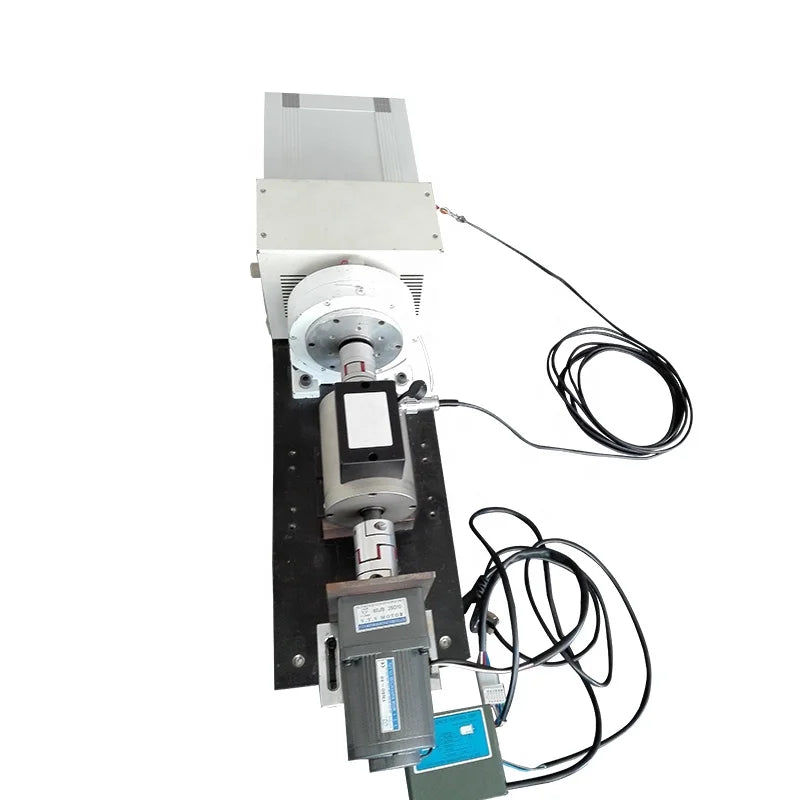

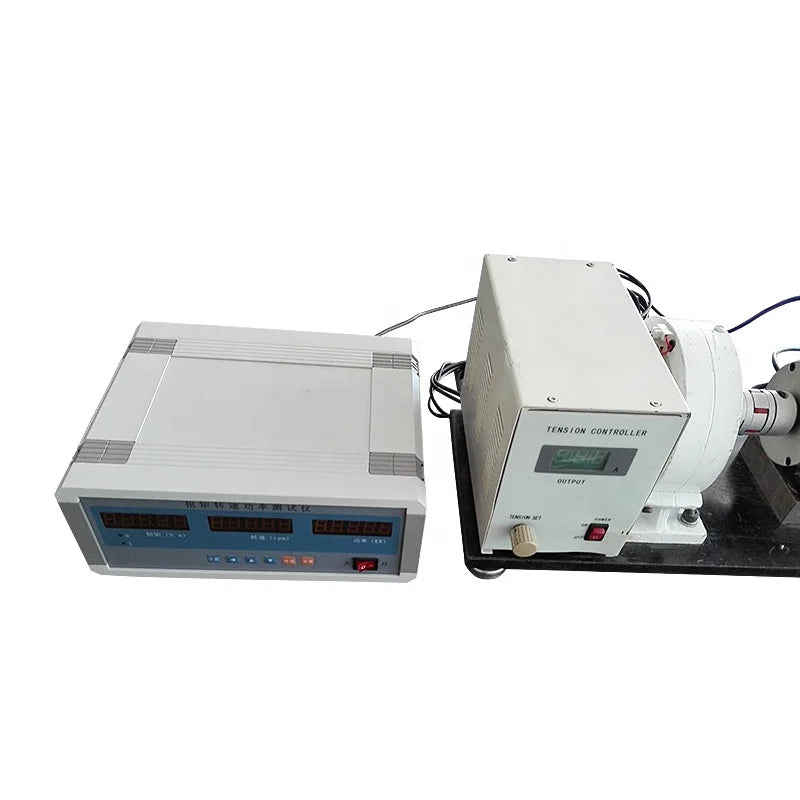

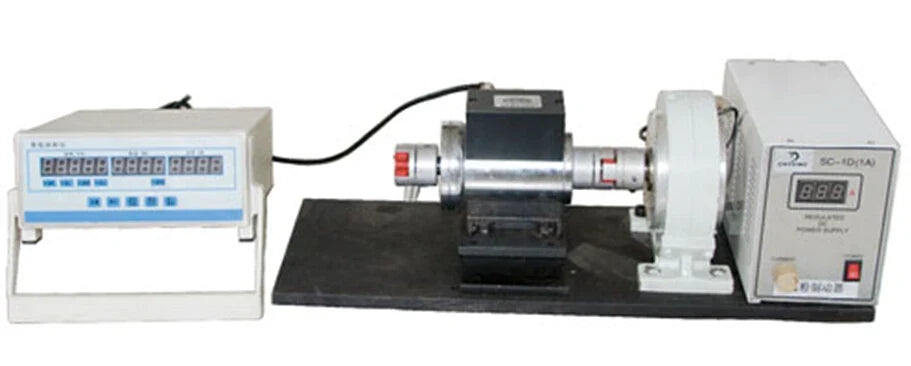

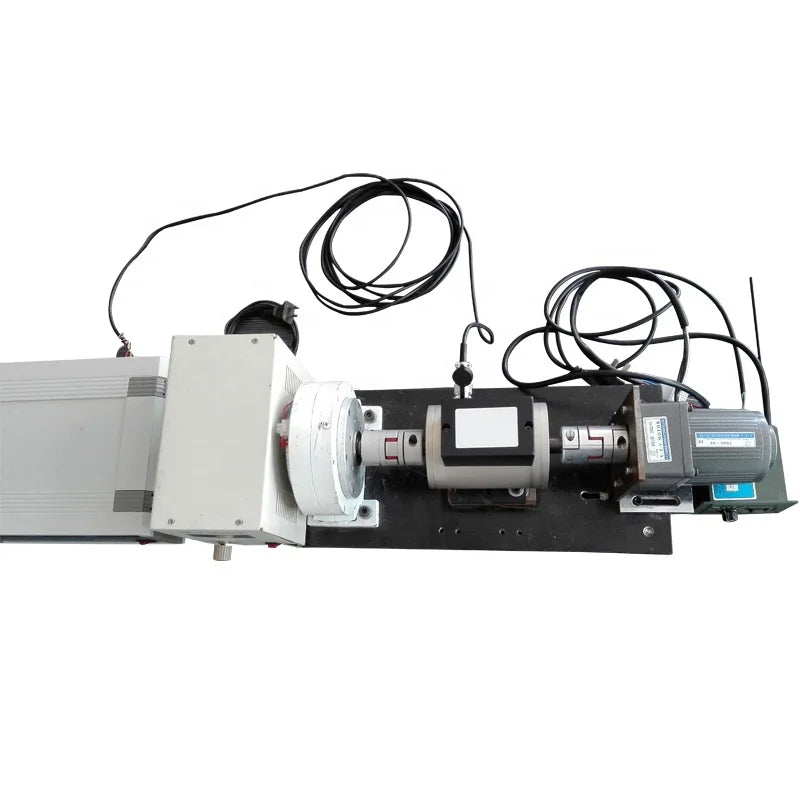

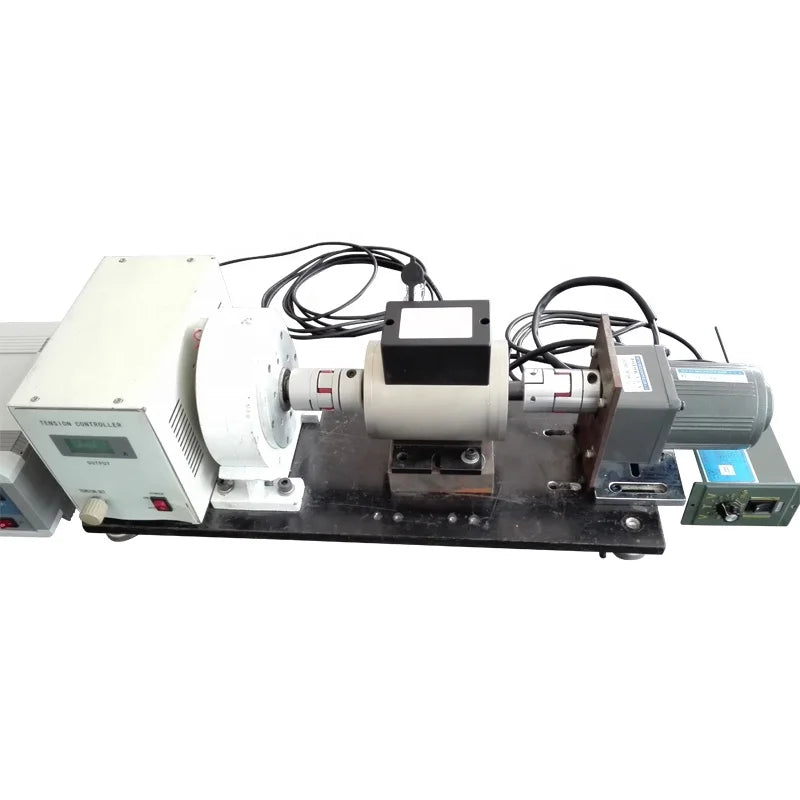

Measurement Instrument: Engine Testing Dynamometer & Motor AC/DC Dynamic Torque Meter

Our dynamic torque tester is an intelligently designed instrument for testing and detecting a wide range of dynamic torque. This high-precision equipment is ideal for measuring the output torque, speed, and power of various motors and reducers, making it indispensable in motor and machinery manufacturing, as well as scientific research institutions.

Key Features:

1. Signal Output: Offers square wave amplitude options of 5V or 12V.
2. Quick Start: Ready for use within 5 minutes without the need for preheating.
3. High Precision: Ensures accurate detection with excellent stability and strong anti-interference capabilities.
4. Continuous Measurement: Capable of continuously measuring positive and negative torque without needing to reset to zero.
5. Compact Design: Small size and light weight for easy installation.
6. Independent Sensor Use: The sensor can operate independently with a ±15V (200mA) power supply.
7. Output Options: Outputs impedance and torque-proportional square wave or pulse wave frequency signals.

Specifications:

5N.m ~ 50N.m Dynamic Torque Meter Tester:

• Models: ADN-5, ADN-10, ADN-20, ADN-30, ADN-50
• Max Load Value: 5N·m to 50N·m
• Load Division Value: 0.001N·m to 0.01N·m
• Maximum Speed: 6000rpm
• Accuracy: ±1%
• Torque Accuracy: ＜±0.5%F·S, ＜±0.35%F·S, ＜±0.1%F·S
• Frequency Response: 100μs
• Nonlinear: ＜±0.2%F·S
• Operating Temperature: -10～50℃
• Storage Temperature: -20～70℃
• Voltage: ±15VDC

100N.m ~ 500N.m Dynamic Torque Meter Tester:

• Models: ADN-100, ADN-200, ADN-300, ADN-500
• Max Load Value: 100N·m to 500N·m
• Load Division Value: 0.1N·m
• Maximum Speed: 6000rpm
• Accuracy: ±1%
• Torque Accuracy: ＜±0.5%F·S, ＜±0.35%F·S, ＜±0.1%F·S
• Frequency Response: 100μs
• Nonlinear: ＜±0.2%F·S
• Operating Temperature: -10～50℃
• Storage Temperature: -20～70℃
• Voltage: ±15VDC

1000N.m ~ 5000N.m Dynamic Torque Meter Tester:

• Models: ADN-1000, ADN-2000, ADN-3000, ADN-5000
• Max Load Value: 1000N·m to 5000N·m
• Load Division Value: 1N·m
• Maximum Speed: 4500rpm to 3000rpm
• Accuracy: ±1%
• Torque Accuracy: ＜±0.5%F·S, ＜±0.35%F·S, ＜±0.1%F·S
• Frequency Response: 100μs
• Nonlinear: ＜±0.2%F·S
• Operating Temperature: -10～50℃
• Storage Temperature: -20～70℃
• Voltage: ±15VDC

10KN.m ~ 200KN.m Dynamic Torque Meter Tester:

• Models: ADN-10K, ADN-15K, ADN-30K, ADN-50K, ADN-100K, ADN-200K
• Max Load Value: 10KN·m to 200KN·m
• Load Division Value: 0.01KN·m to 0.1KN·m
• Maximum Speed: 3000rpm to 1000rpm
• Accuracy: ±1%
• Torque Accuracy: ＜±0.5%F·S, ＜±0.3%F·S, ＜±0.1%F·S (optional)
• Frequency Response: 100μs
• Nonlinear: ＜±0.2%F·S
• Operating Temperature: -10～50℃
• Storage Temperature: -20～70℃
• Voltage: ±15VDC

Upgrade your testing capabilities with our high-precision measurement instrument, ideal for engine testing and dynamic torque measurement in various industrial applications.
