High-Pressure Air-Driven Liquid Booster System for Hydraulic Burst Test Pump

This high-pressure air-driven liquid booster system is designed for performing hydraulic proof-pressure and burst tests. It uses compressed air to generate high hydraulic pressure, ensuring accurate testing of various industrial components.

Key Specifications:

• Usage: Pressure Boosting
• Air Driven Pressure: 2-8 bar
• Material: 304 Stainless Steel

Operational Instructions:

1. Fill the liquid tank with water or hydraulic oil, connect the driven air supply, and ensure the testing object is secured with no leakage.
2. Close the unloading valve, open the high-pressure liquid outlet valve, and adjust the driven air pressure (e.g., 5 bar) using the air regulator.
3. Activate the driven air switch to start the system, which will generate high hydraulic pressure for proof or burst testing.
4. Once the test is completed, turn off the driven air switch, open the unloading valve to return the high-pressure liquid to the tank, and remove the testing object.

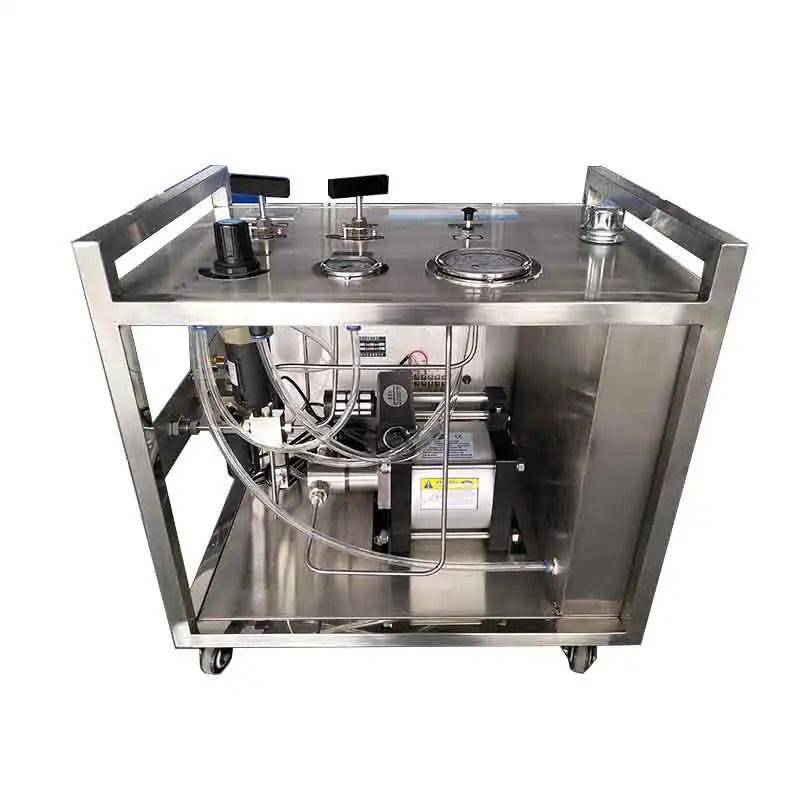

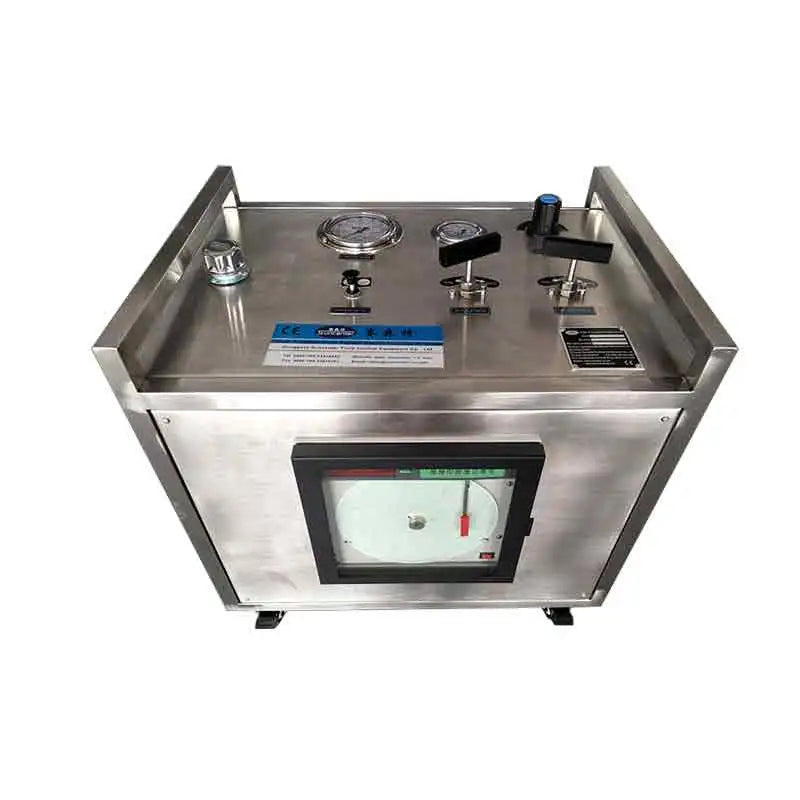

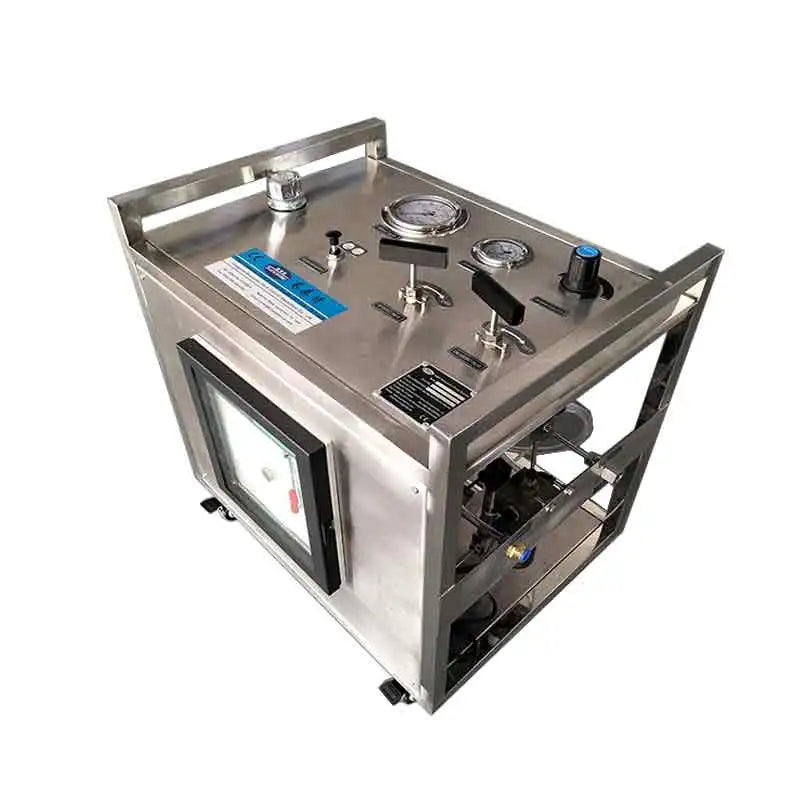

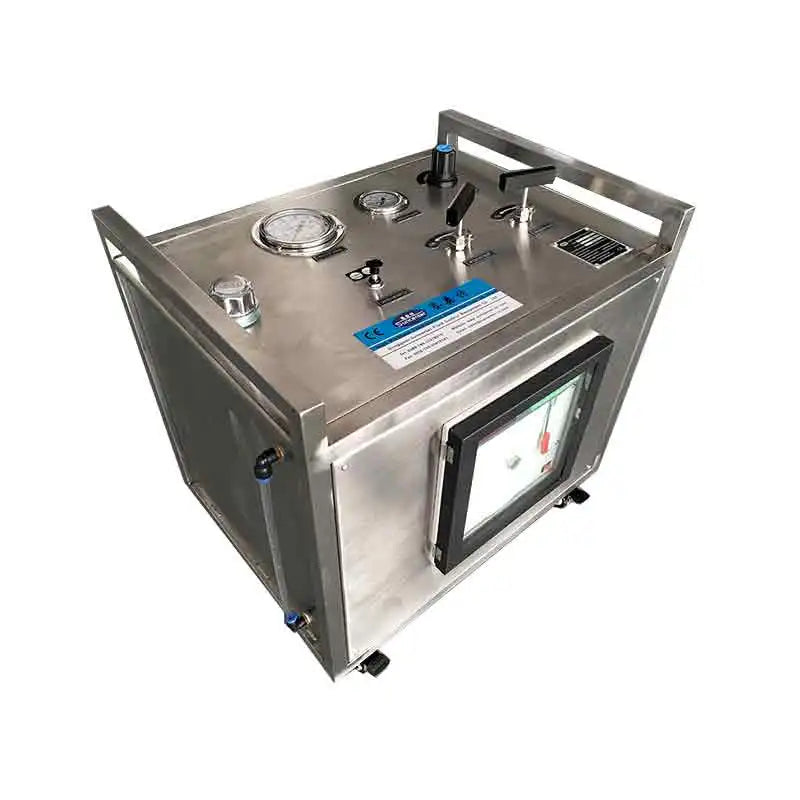

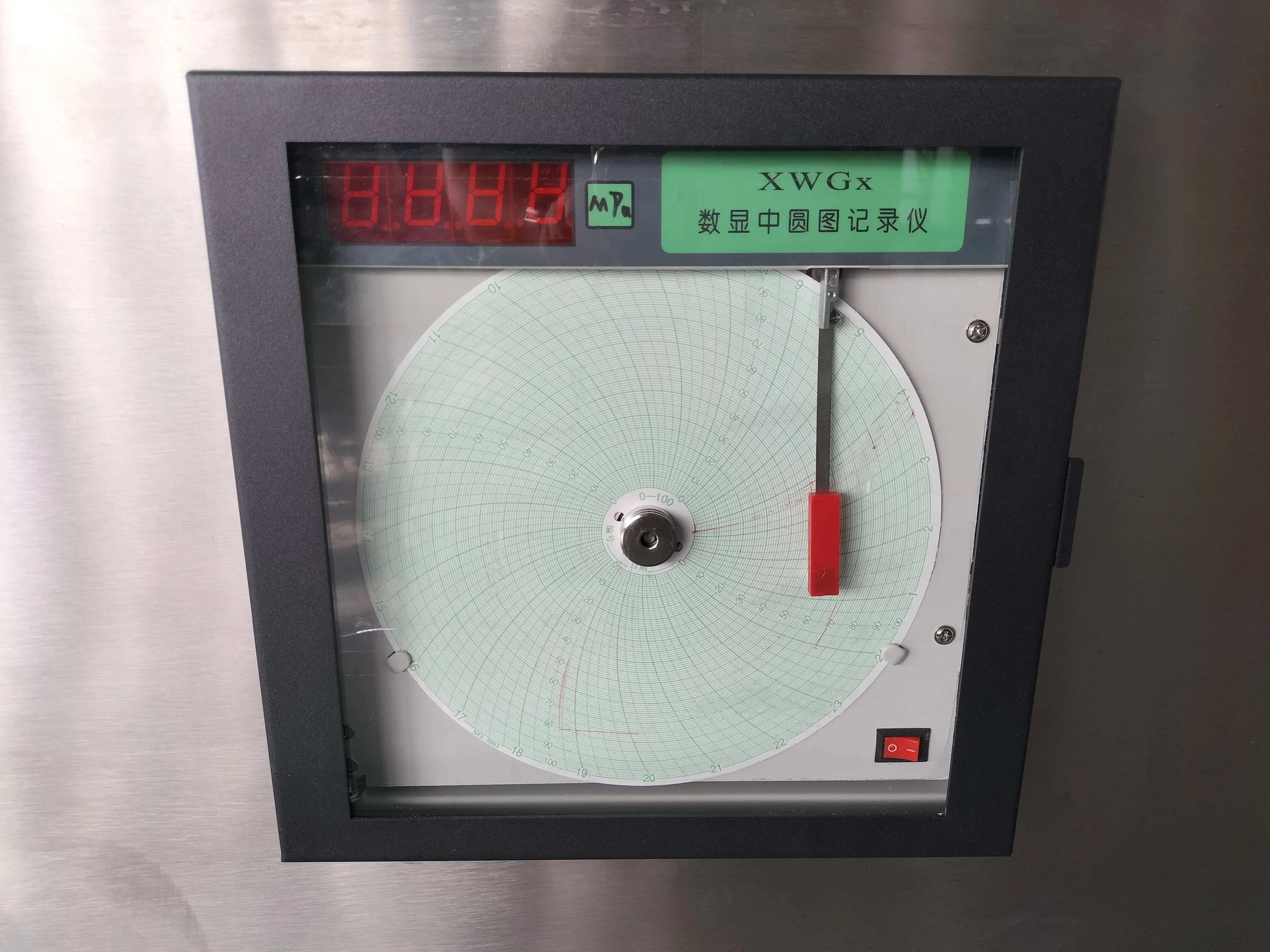

System Structure & Components: The liquid booster system consists of a liquid booster pump, valves, gauges, tubing, and a portable cart. The standard configuration includes:

1. Liquid Booster Pump (DGM/DGG/DGGD/2DGGD series options)
2. F.R.L Combination for air pressure adjustment, lubrication, and impurity filtration

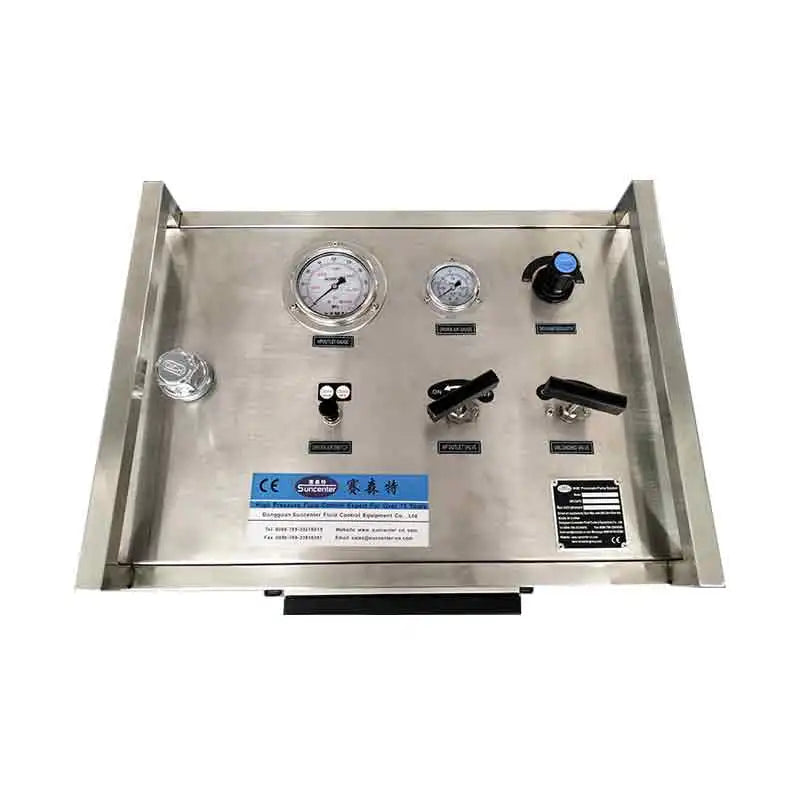

3. Driven Air Switch with air pressure gauge
4. Liquid Tank
5. High-Pressure Needle Valve, Pressure Gauge, Unloading Valve, and Piping
6. Cabinet (Three options available)

DLS-2GD Series Models & Parameters:

Additional Features:

1. Automatic Air Bubble Removal: An optional electric water injection pump (30-100 L/min flow rate) can automatically remove air bubbles and speed up the testing process (additional cost).
2. Manual Air Bubble Removal: You can manually fill the test object with water to expel air bubbles before activating the hydraulic pump.

• Warranty : 13 months
• Model Number : DLSMHDG
• Place of Origin : Guangdong, China
• Application : Automotive Industry, Industrial Utilities
• Power Source : Pneumatic
• Pressure : High Pressure
• Structure : PISTON PUMP
• Power : none, Pneumatic
• motor : none
• Usage : Booster
• Air driven pressure : 2-8bar
• Material : 304 Stainless Steel
• Feature : High Efficiency
