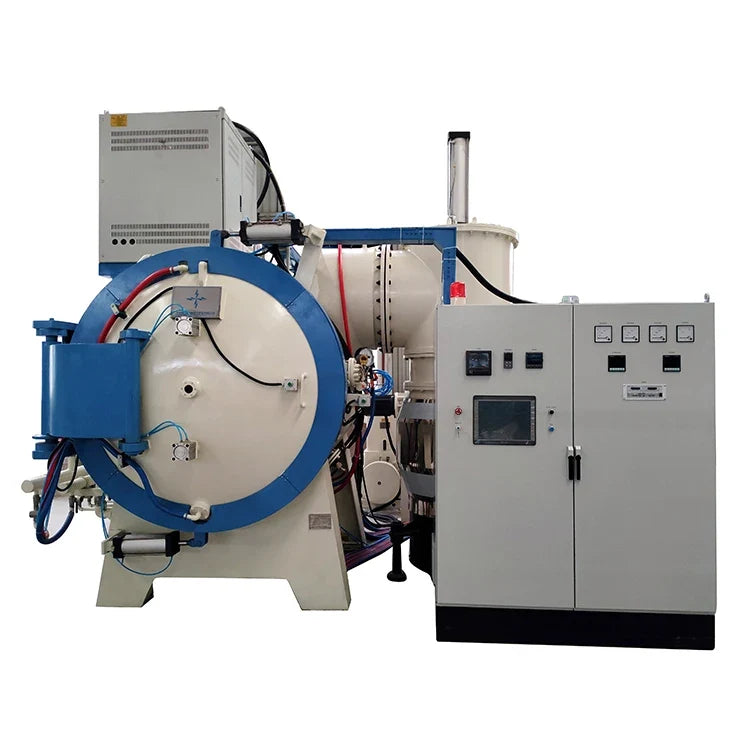

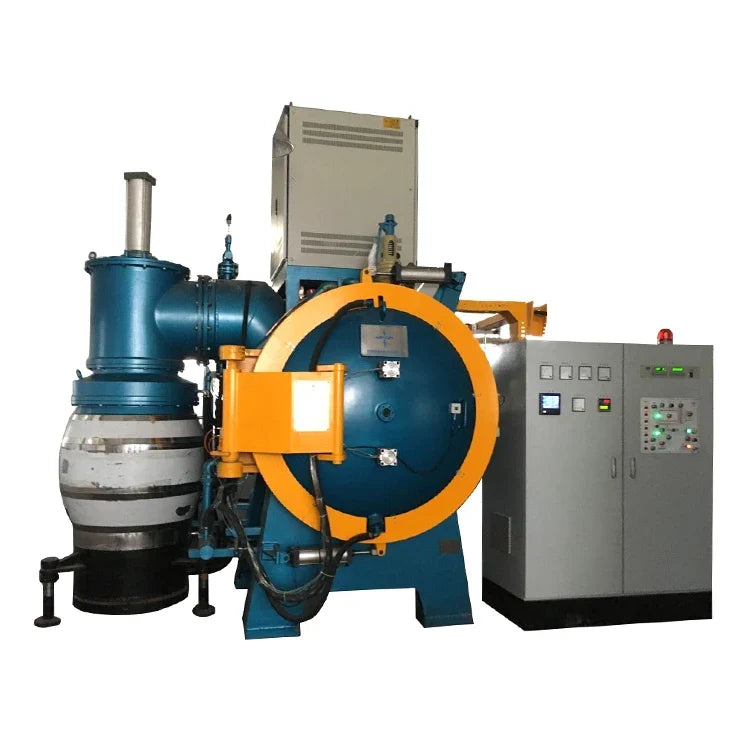

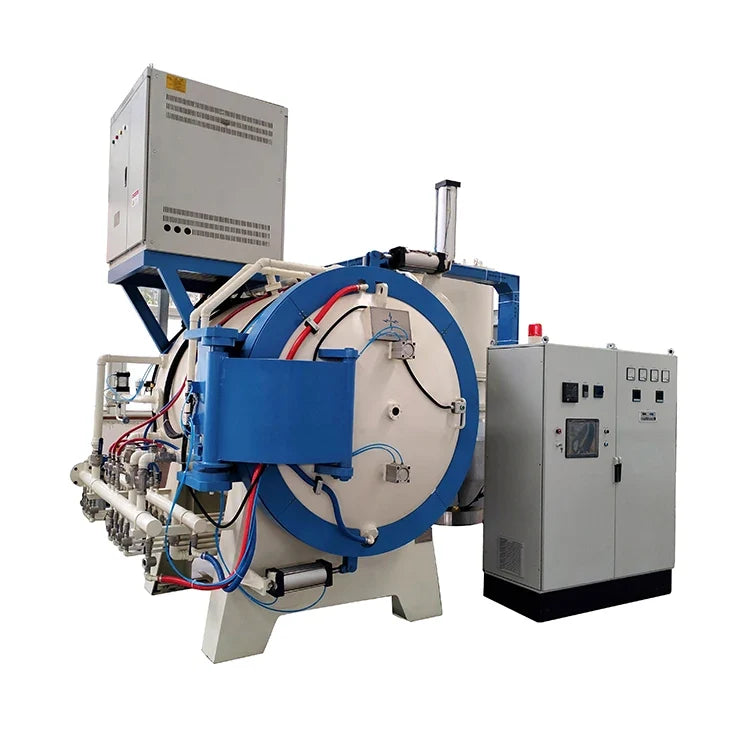

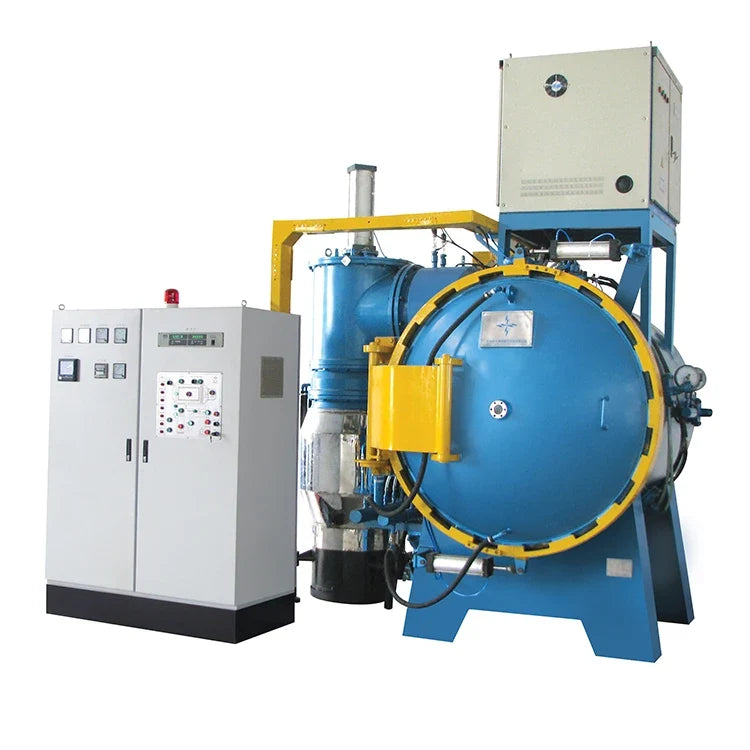

Single-Chamber Vacuum High Temperature Brazing Furnace

The Single-Chamber Vacuum High Temperature Brazing Furnace is designed for precision brazing of high-performance materials. It is ideal for vacuum high-temperature brazing of high alloy steel, magnetic materials, stainless steel, titanium alloy, and non-ferrous metals. This furnace is also suitable for vacuum brazing of copper-based, nickel-based, and silver-based solders.

Features:

• Heating Chamber: Can be configured with graphite tube heating and multi-layer graphite felt or graphite hard felt insulation for standard applications.
• Advanced Heating Options: For high-requirement products or special materials, the heating chamber can utilize molybdenum belt heating with molybdenum and stainless steel sheet composite insulation.
• Customization: The size of the valid zone can be customized according to customer requirements.
• Control System: Equipped with a computer control system for precise operation and monitoring.

Models and Specifications:

• MZQH40

  • Valid Zone: 450 x 300 x 300 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 40 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

• MZQH80

  • Valid Zone: 600 x 400 x 400 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 80 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

• MZQH100

  • Valid Zone: 750 x 500 x 500 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 100 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

• MZQH150

  • Valid Zone: 900 x 600 x 600 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 150 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

• MZQH200

  • Valid Zone: 1200 x 600 x 600 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 200 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

• MZQH300

  • Valid Zone: 1500 x 800 x 800 mm
  • Maximum Temperature: 1320°C
  • Heating Power: 300 kW
  • Ultimate Vacuum: 5x10^-3 or 4x10^-1 Pa
  • Gas Cooling Pressure: 2 bar

This high-performance brazing furnace ensures optimal results for a wide range of materials, meeting the rigorous demands of industrial applications.

• Condition : New
• Type : Resistance Furnace
• Use : Heat Treatment Furnace
• Warranty of core components : 1year
• Core Components : PLC, Pressure vessel, Pump
• Voltage : 380V 50HZ
• Dimension(L*W*H) : 900x600x600mm
• Weight (T) : 9 T
• Power (kW) : 150KW
• Warranty : 1 Year
• Key Selling Points : Easy to Operate
• Applicable Industries : Brazing industry
