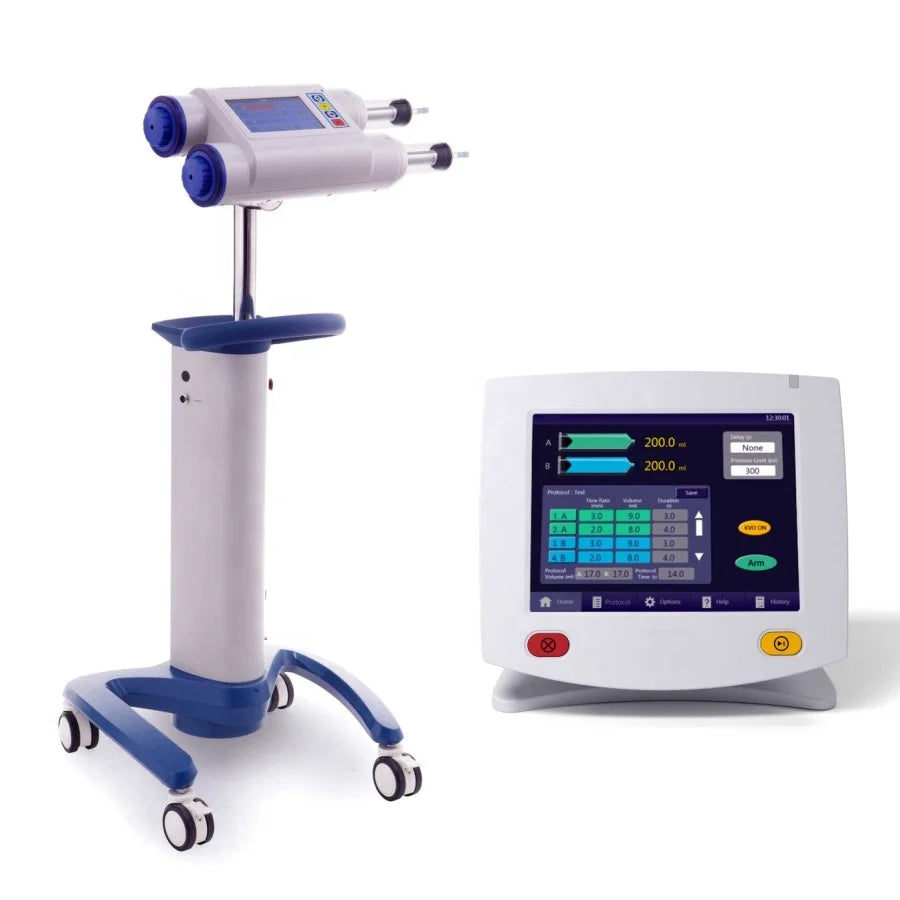

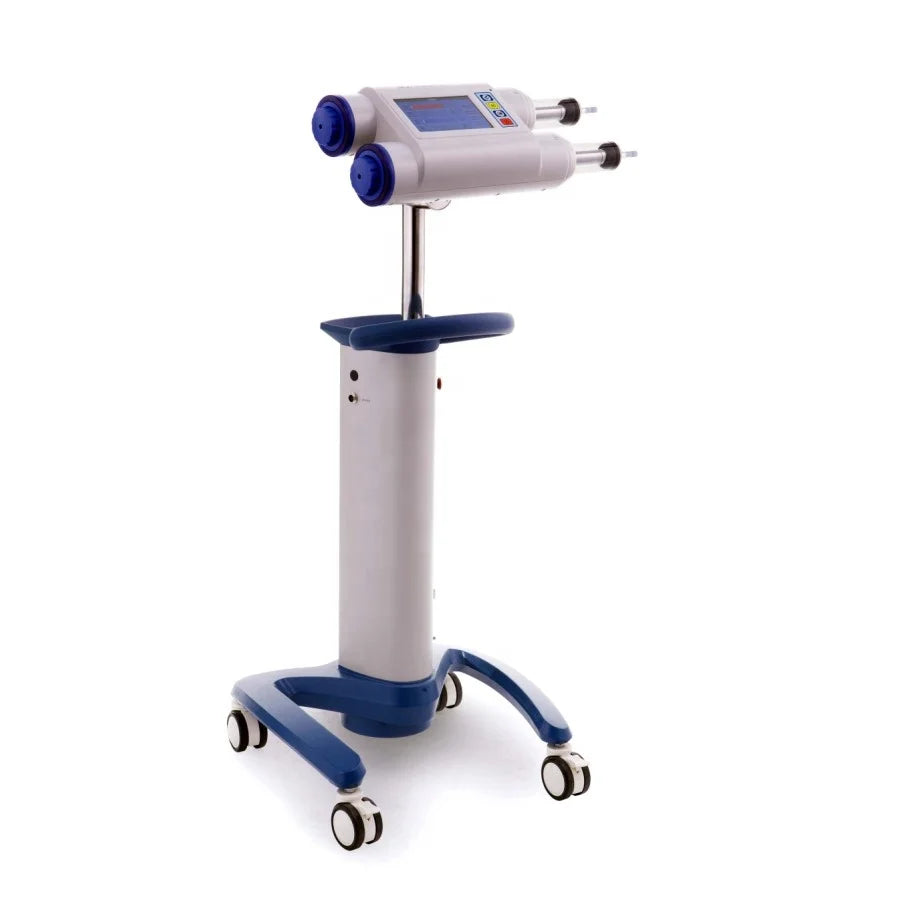

Injector Syringe for CT/200ML Double Syringe CT Pressure Injector Syringe

Syringes: 200ml, Dual syringe
Flow Rate: 0.1~10ml/s
Pressure Limit: 100-300 psi, increments of 50 psi
Safety Function: Real-time injection pressure monitoring, automatic stop with alarm for overpressure
Type: Automatic
Display: Large true-color touch screen LCD
Power Supply: AC 220V ± 10%, 50Hz
Dimensions: 1260mm (Height) x 530mm (Width) x 530mm (Depth)
Hand Switch: Controls pause and continue injection

Features:

1. Unique Design

   • Real-time injection pressure display.
   • Automatic stop and alarm when actual pressure exceeds the limit, reducing the risk of swelling due to vascular rupture.

2. Dual Monitors with Real-Time Synchronization

   • Remote Console: Edit protocols and execute injections with synchronous display of all local console operations.
   • Local Console: Perform all actions with synchronous display of all remote console operations.

3. LED Rotation Indicator

   • Clockwise rotation indicates the drug suction process.
   • Counter-clockwise rotation indicates the injection process.

4. High-Quality Components

   • Best quality motor and key parts for long-term robust performance.
   • Up-to-date powerful 32X processor for real-time control.

Specifications:

• Safe: Unique "Direct Pressure Sensor" to reduce swelling caused by vascular leakage.
• Stable: High-quality motor and key parts ensure long-term, robust performance.
• Powerful: Flow rate of 0.1~10ml/s, suitable for all types of CT enhanced scans.
• Convenient: Dual monitors for easy operation.

Packing Size: 64x64x150
Gross Weight: 140 lbs

• Syringes: : 200ml,Dual syringe
• Flow rate : 0.1~10ml/s
• Pressure Limit : 100-300psi, increments 50psi
• Safety function : real-time injection pressure, stop
• Type : Automatic
• Display : Large true-color touch screen LCD
• Power supply : AC 220V, more or less 10%, 50Hz
• Dimensions : 1260mm (Height)x530mm (Width)x530mm (Depth
• Hand Switch: : Control Pause and continue injection
