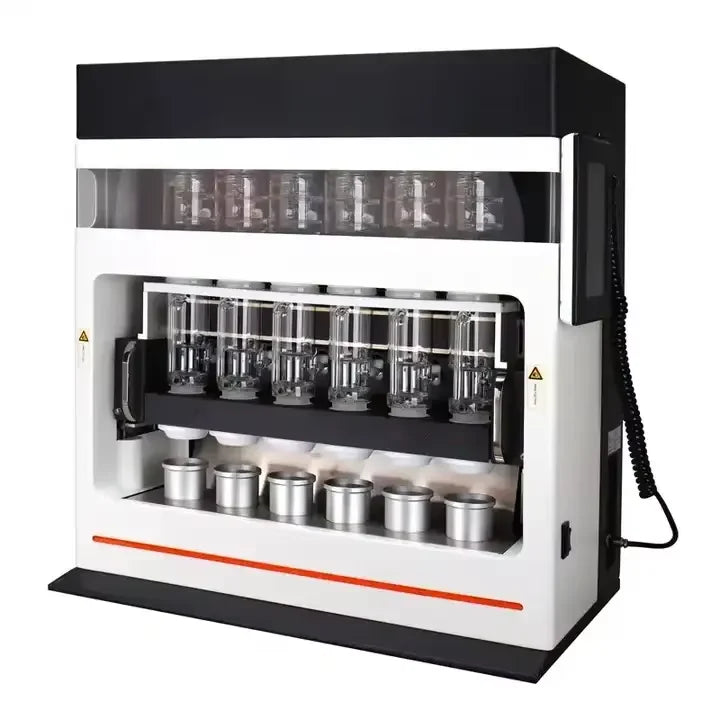

Introducing the MSOXH606 Automatic Soxhlet Extractor, a state-of-the-art Fat Analyzer designed for precision and efficiency in various scientific applications. Utilizing the Soxhlet extraction principle combined with advanced weighing methods, this extractor delivers accurate fat content analysis with five customizable extraction methods to meet diverse requirements.

Key Features & Advantages:

• Versatile Solvent Use: Compatible with all organic solvents to cater to various extraction needs.
• High Precision: Custom glass and PTFE components block impurities and ensure high accuracy.
• User-Friendly Operation: One-touch controls for starting and pausing extractions, enhancing operational efficiency.
• Convenient Mounting: The controller can be easily attached to any iron surface for accessibility.
• Vertical Screen: Designed for user comfort and ease of use.
• Five Extraction Methods: Includes Soxhlet Extraction, Soxhlet Hot Extraction, Continuous Flow Extraction, Hot Extraction, and CH Standard Methods.
• Automated Functions: Handles extraction, lifting, pre-heating, and solvent recovery automatically.
• Efficient Heating: Features a whole-metal heating module for rapid heating, effective performance, and low power consumption.
• Solvent Recycling: Automatic solvent recycling system to minimize costs.
• Environmental Control: Full temperature and flow control for optimized environmental and economic efficiency.
• Safety Measures: Built-in ether leak detection to ensure safe operations.
• Cost-Effective: Efficient solvent recovery system to reduce overall experimentation costs.

Specifications:

• Temperature Range: RT +5℃ to 300℃
• Measuring Range: 0.1% to 100%
• Temperature Accuracy: ±1℃
• Reproducibility: Relative error of 1%
• Sample Weight: 0.5 to 15g
• Capacity per Batch: 6 pcs/batch
• Solvent Cup Volume: 150 mL
• Solvent Recovery: ≥85%
• Power Supply: 220VAC±10%, 50Hz
• Power: 2.6KW
• Dimensions: 650mm × 380mm × 720mm
• Net Weight: 50 kg

Perfect for applications in agriculture, food science, chemical analysis, and environmental studies, this extractor excels in extracting soluble organic compounds from drugs, soil, sludge, cleaners, and more.
