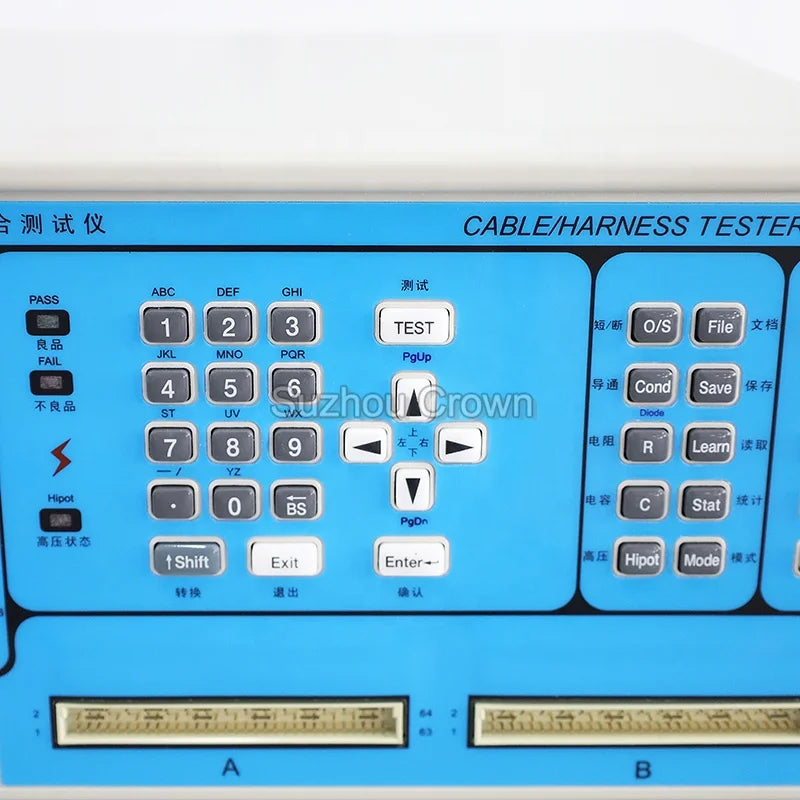

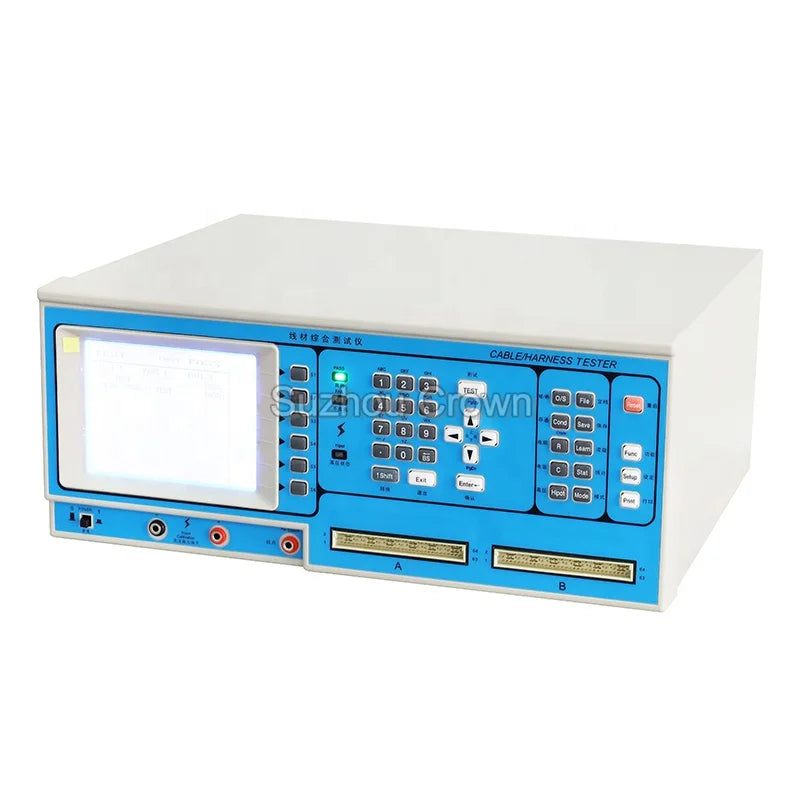

Introducing the MWLCT8683 Wire and Cable Tester: Ensure Reliable Connections with Advanced Testing Capabilities
Features:
- Comprehensive Testing: Perform advanced short circuit, open circuit, dislocation, insulation impedance, conduction impedance, and instantaneous short circuit and open circuit tests.
- Versatile Functions: Offers standard, multi-stage, unilateral automatic testing, and probe point finding functions for enhanced flexibility.
- Automated Scanning: The system automatically scans and conducts self-tests, streamlining the testing process.
- Clear Feedback: Good and bad products are easily distinguished with liquid crystal display and acousto-optic prompts.
Specifications:
- Model Number: MWLCT8683
- Power Source: Electronic
- Test Points: 1-128 points (PIN)
- On Resistance Test Range: 0.1 Ω - 50 Ω
- Insulation Impedance Setting: 1m Ω - 1g Ω
- Test High Voltage: DC 200 - 700V; AC 100 - 500V
- Resistance Test Range: 0.1 Ω - 1m Ω
- Capacitance Test Range: 10pF - 500 μ F
- Diode Test Range: 0.1V - 7.0V
Experience efficient and accurate wire and cable testing with the MWLCT8683 Wire and Cable Tester.
