Introducing our latest innovation in newborn hearing screening technology - the OAE Hearing Screener with EOAE and DPOAE capabilities. Here are the key features that make it stand out:
- Stylish Design: Sleek and lightweight for easy handling.
- Language Options: Choose between Chinese and English display languages.
- User-Friendly Operation: Touch-button keypad ensures simple and intuitive operation.
- Clear Display: Color TFT-LCD monitor provides a clear view of menus and test results.
- Ample Storage: Store up to 200 test results for 50 patients in the device's memory.
- On-Demand Printing: Test results can be instantly printed via Bluetooth for convenient record-keeping.
- Versatile Application: Suitable for clinics, office buildings, and medical wards, ensuring reliable data in various settings.
- Long Battery Life: Enjoy up to 8 hours of continuous operation on a single charge.
- Easy Maintenance: Detachable probe for effortless cleaning.
- Future Compatibility: Compatible with computers for saving and displaying test results (under development).
- Efficient Testing: Quick test capabilities with DPOAE completed in 10 seconds and TEOAE in 30 seconds.
- Customizable Models: Choose from three models with flexible configurations, including TEOAE, DPOAE, or both.
- Optional Accessories: Wireless Bluetooth printer available for rapid, wireless printing.
Product Specifications:
- Host Device Size: 1806221mm
- Host Device Net Weight: About 215g
- Monitor: 2.4-inch color TFT-LCD
- Keypad: 5 keys (Up, Down, Left, Right, OK)
- RAM: Up to 200 test results for 50 patients
- Power Adapter: DC 5V 1000mA

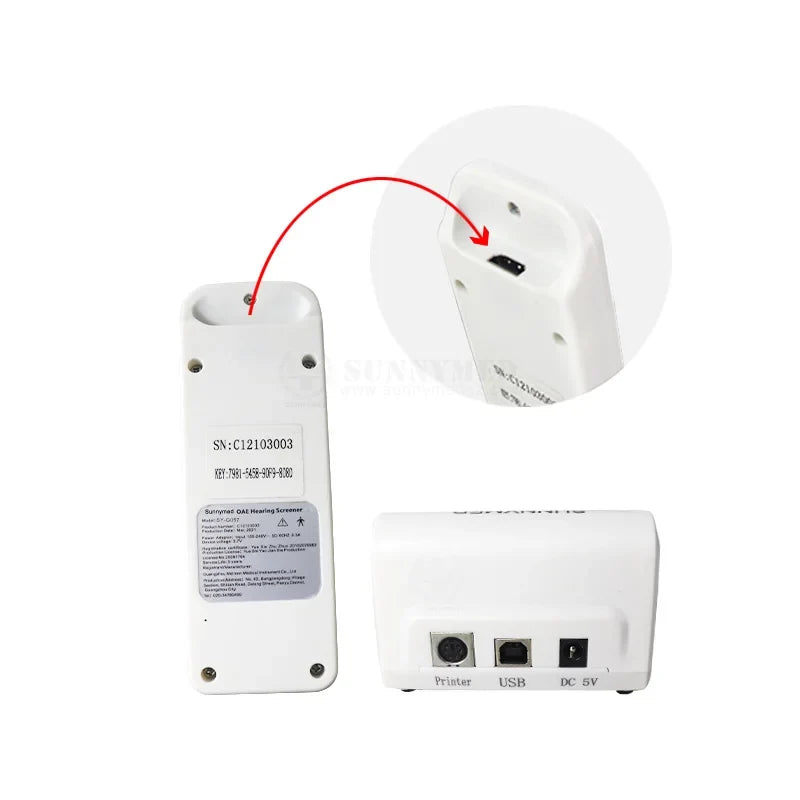

- Interface: Docking station for charging and data communication with the host computer
- Probe Interface: HDMI
- Probe Cable Length: 90cm
- Earplugs: Multiple sizes available
- Printer: Standard 58mm Bluetooth thermal printer
Models and Specifications:
- MSYG057-1: TEOAE+DPOAE
- MSYG057-2: DPOAE
- MSYG057-3: TEOAE
Test Methods:
- TEOAE+DPOAE
- DPOAE
- TEOAE
This OAE Hearing Screener is designed to provide accurate and efficient newborn hearing tests, ensuring early detection and intervention when necessary.
Detailed Specifications
|
Model
|
MSYG057-1
|
MSYG057-2
|
MSYG057-3
|
|
Test Method
|
TEOAE+DPOAE
|
DPOAE
|
TEOAE
|
|
Number of Frequency Bands
|
6/4
|
4
|
6
|
|
Evaluation Method
|
Noise-weighted Averaging, Counting of Significant Signal Peaks/ Phase statistics
|
Noise-weighted Phase Statistics
|
Noise-weighted Averaging, Counting of Significant Signal Peaks
|
|
Stimulus Type
|
Click Sound/ Primary tone pair, F2/F1=1.22
|
Primary tone pair F2/F1=1.22
|
Click Sound
|
|
Stimulus Level
|
60~80dB /50~65dB SPL
|
50~65dB SPL
|
60~80dB SPL
|
|
Frequency Range
|
1.5kHz~4kHz/2kHz,
3kHz , 4kHz ,5kHz |
2kHz,3kHz, 4kHz, 5kHz
|
1.5kHz~4kHz
|
|
S/N
|
6dB|4dB
|
4dB
|
6dB
|
|
Pass
|
3 or more of the 6 frequencies/ 3 or more of the 4 frequencies
|
3 or more of the 4 frequencies
|
3 or more of the 6 frequencies
|
|
Display
|
Measurement Progress, S/N
|
Measurement Progress, S/N
|
Measurement Progress, S/N
|
|
Result Display
|
PASS/REFER
|
PASS/REFER
|
PASS/REFER
|
Shipping & Delivery
The machine ships in a wooden box
Delivery time: 15 business days
MEUBON
Newborn Hearing Test Machine: OAE Hearing Screener with EOAE and DPOAE Capabilities I Model MSYG057-1 I MSYG057-2 I MSYG057-3
