• Ocular Ultrasound and Ultrasound Biomicroscopy UBM Machine

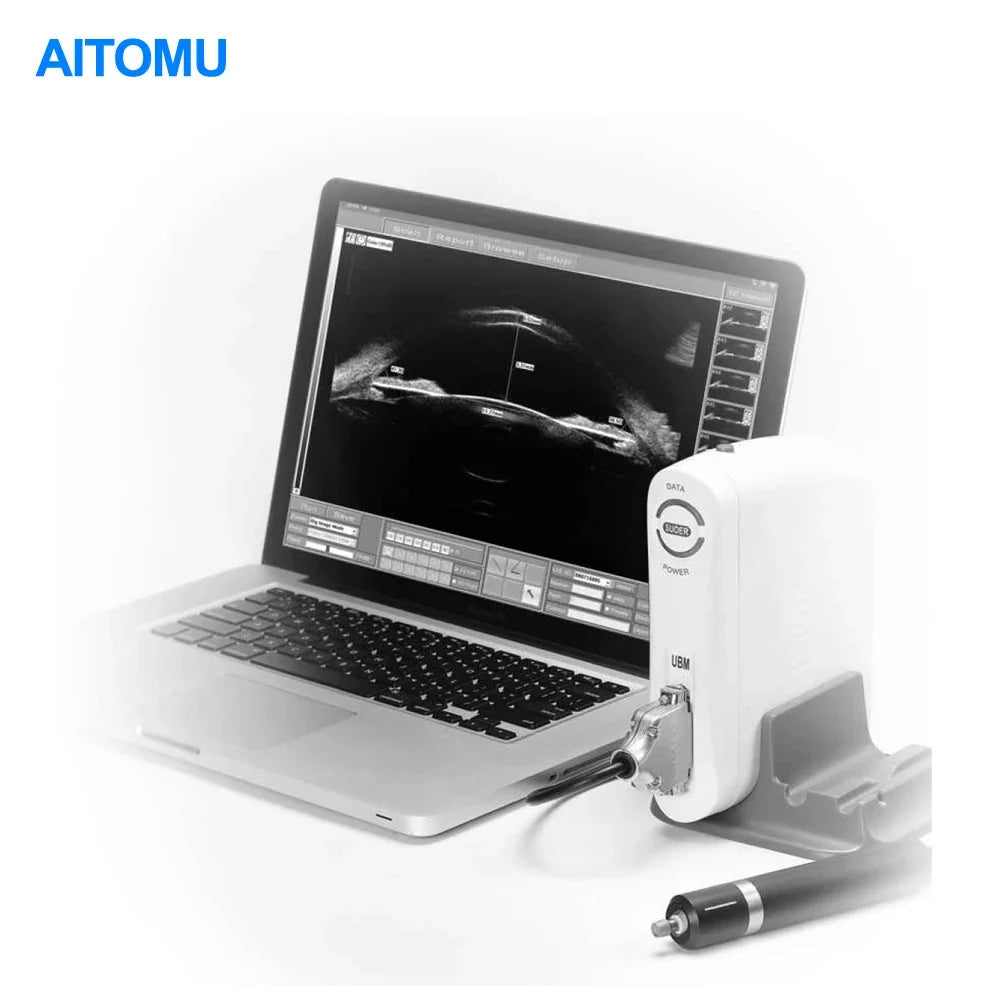

The model HY3200S UBM ultrasound biomicroscopy machine is a high-resolution non-invasive ultrasound used for imaging the structures of eye anterior segment. Ophthalmic UBM machine has much higher frequency probes than A-scan or B-scan.

Features:
1.Linear scan and handheld probe
2.Sulcus to sulcus measurement
3.Full image mode and angle image mode display
4.AOD and ACA measurement
5.PDF report output

HY-3200S UBM

Technical Specification:

Frequency 50MHz/35MHz(optional)
Scanning Mode Linear Scanning
Scanning Range 16mm*9mm; 10mm*6.5mm
Image Resolution(full screen) 50um
Output PDF report output
Scanning Lines 1024 lines, 15 um between each, high density & high resolution
Geometry Distortion Linear scan, no distortion, no compensation, undistorted image
Probe Multi-Dimension, precise locating articulated arm
Probe Multi-Dimension, precise locating articulated arm
Measurement Distance, angle , perimeter , area
Display colors 12 false colors
Display Mode UBM, UBM A
Magnify Special independent ultrasound magnifies system, better image in Anterior Segment.
Eye Fixation Unique Eye position and LED system
Working Platform Windows XP, VISTA, WINDOWS7
Image Process Length, angle measurements
  • Warranty : 3 years
  • Model Number : HY3200S
  • A scan Frequency : 10MHz With LED
  • B scan Frequency : 50MHz
  • Depth : 40mm
  • Precision : ±0.05 mm
  • Measurement : Anterior chamber depth, lens thickness, vitreous body length
  • Eye mode : Phakic / Aphakic / Dense / Various IOL
  • IOL Formula : SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
  • Stat. Calculation : Average and standard deviation

MEUBON

Ocular Ultrasound and Ultrasound Biomicroscopy UBM Machine I Model HY3200S

$11,300.00 USD
$11,899.00 USD $11,300.00 USD
