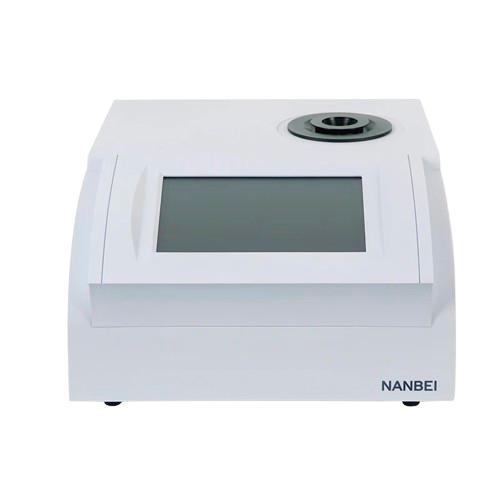

Introducing the WRS2C/WRS1C Melting-Point Apparatus: Revolutionizing Purity Measurement in Various Industries

Features:

• Essential for purity measurement, crucial in pharmaceuticals, dye-stuffs, perfumes, and other organic crystal substances production.
• Utilizes PID & PWM for precise temperature control, ensuring accuracy and reliability.
• Automatically records melting curves and calculates average initial and final melting points.
• User-friendly touch screen interface for intuitive operation.
• Equipped with USB and RS232 for seamless connectivity.
• WRS2C enables simultaneous measurement of up to 3 samples, enhancing efficiency.

Specifications:

• Measurement Range: Room temperature ~ 360°C (WRS2C) / Room temperature ~ 400°C (WRS1C)
• Minimum Digital Display: 0.1°C
• Linear Heating-up Rate: 0.1°C ~ 20°C/min
• Accuracy: ≤200°C: 0.4°C; >200°C: 0.7°C
• Repeatability: 0.3°C (heating rate: 1.0°C/min)
• Capillary Size: φ1.4mm (outside diameter), φ1.0mm (inside diameter), Length: 90mm
• Number of Capillaries: 3 (WRS-2C) / 1 (WRS1C)
• Sample Loading Height: 3mm
• Data Storage: 1000 sets
• Optional Accessories: Printer (RS-TH32-SC)
• Display: 7-inch touch LCD
• Interface: RS232/USB
• Dimensions: WRS2C: 580mm x 430mm x 310mm / WRS1C: 500mm x 430mm x 310mm
• Gross Weight: WRS2C: 28 lbs / WRS1C: 23 lbs

Upgrade your purity measurement processes with the WRS-2C/WRS-1C Melting-Point Apparatus, offering precision, efficiency, and versatility for your laboratory needs.
