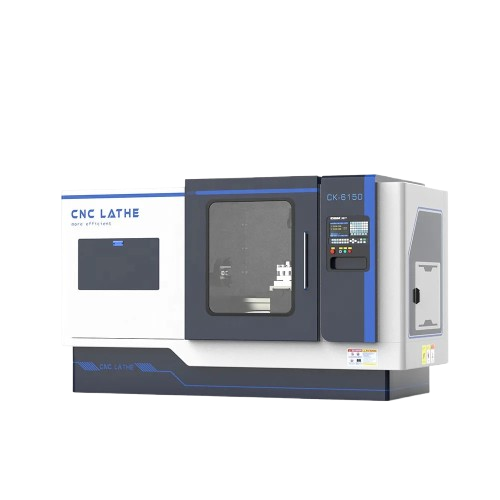

CNC Lathe Machine with Reliable Technology

Enhance your machining precision with this CKM6160 CNC Lathe Machine, designed for medium-duty operations and built with reliable, cutting-edge technology. This horizontal, flat-bed lathe is ideal for a wide range of applications, offering high performance and durability.

Key Features:

• Max. Workpiece Length: 1850 mm
• Structure: Flat Bed Lathe for stable operation
• Machining Capacity: Medium Duty
• Bed Width: 210 mm for excellent support
• Spindle Motor Power: 7.5 kW for robust performance
• Rapid Traverse Speeds:
  • X Axis: 6 m/min
  • Z Axis: 8 m/min
• Travel Range:
  • X Axis: 320 mm
  • Z Axis: 2000 mm
• Positioning Accuracy: ±0.005 mm for precise machining
• Spindle Speed: Up to 1800 rpm
• CNC Controller: Siemens 808DA for seamless control

Specifications:

• Voltage Options: 220V / 380V
• Tool Post Stations: 6
• Spindle Bore: 82 mm
• Core Components: Bearing, Motor, Gear, PLC, Engine
• Guide Way Type: Hard rail for enhanced stability
• Dimensions (L×W×H): 2650 × 1700 × 1820 mm
• Weight: 6000lbs

Additional Benefits:

• Warranty: 1-year on machine and core components
• Inspection Services: Video outgoing inspection and machinery test reports provided
• Applicable Industries: Manufacturing, repair shops, energy, mining, and more
•  Available in over 30 countries

This CNC lathe machine ensures efficiency, precision, and reliability, making it an excellent choice for industries requiring medium-duty machining solutions. Experience seamless operations with Siemens-controlled technology and a design built for long-term use.

• Type : Horizontal
• Max. Length of Workpiece (mm) : 1850
• Structure : Flat Bed Lathe
• Machining Capacity : Medium Duty
• Width of bed (mm) : 210 mm
• Spindle Motor Power(kW) : 7.5
• No. of Spindles : Single
• Number of Axes : 2
• Travel (X Axis)(mm) : 320 mm
• Travel (Z Axis)(mm) : 2000 mm
• Dimension(L*W*H) : 2650*1700*1820
• Model Number : CK6160
• Voltage : 220v/380v
• CNC Control System : Siemens
• Tool Post Stations : 6
• Weight (KG) : 2800
• Warranty : 1 Year
• Machinery Test Report : Provided
• Video outgoing-inspection : Provided
• Warranty of core components : 1 Year
• CNC Controller : Siemens 808DA
• CNC or Not : CNC Lathe Machine
• Positioning Accuracy (mm) : ±0.005
• Repeatability (X/Y/Z) (mm) : ±0.005
• X axis rapid traverse : 6m/min
• Z axis rapid traverse : 8m/min
• X axis servo motor torque : 5/7.5 N.m
• Z axis servo motor torque : 7.5/10/15N.m
• Guide way type : Hard rail
• Condition : New
• Spindle Bore(mm) : 82
• Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Advertising Company
• Core Components : Bearing, Motor, Gear, PLC, Engine
• Max. Spindle Speed (r.p.m) : 1800 r.p.m
