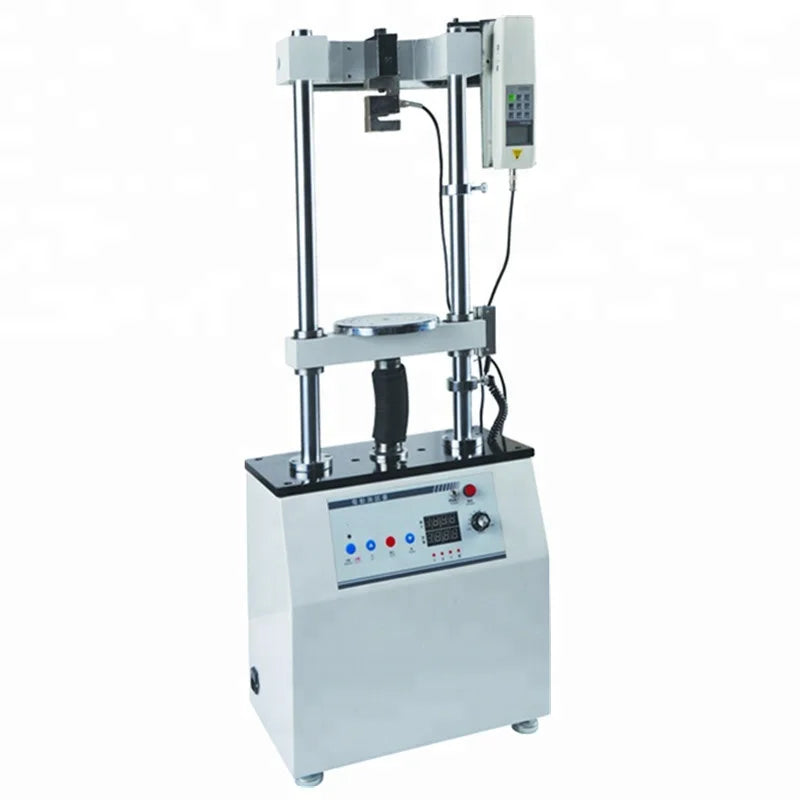

Introducing the Electric Test Stand, the ideal companion for HF and NK series force gauges, designed to streamline your testing processes with precision and efficiency.

Features:

1. Electric Loading with Stepless Speed Regulation: Seamlessly adjust loading speed with gear drive technology for optimal testing control.

2. Compact Structure for Stability: Engineered for stability, ensuring reliable performance even under demanding testing conditions.

3. Versatile Compatibility: Simple operation with a range of fixtures, facilitating adaptable usage across various industries.

Applications:

This versatile test stand finds its place in industries spanning rubber, plastic, light industry, textile, construction (including windows and doors), composite materials, electric wiring, automotive parts, power generation, and scientific research institutes. Perfect for conducting push-pull force and insertion force experiments with precision and reliability.

Technical Specifications:

• MAEV5KN

  • Effective Stroke: 220mm
  • Max. Load: 5000N
  • Testing Speed: 15—240mm/min
  • Gross Weight: 75kg

• MAEV10KN

  • Effective Stroke: Not fixed
  • Max. Load: 10000N
  • Gross Weight: 90kg

• MAEV20KN

  • Max. Load: 20000N

• MAEV30KN

  • Max. Load: 30000N

Experience precision testing with the Electric Test Stand, your trusted partner for accurate and efficient force measurement experiments.
