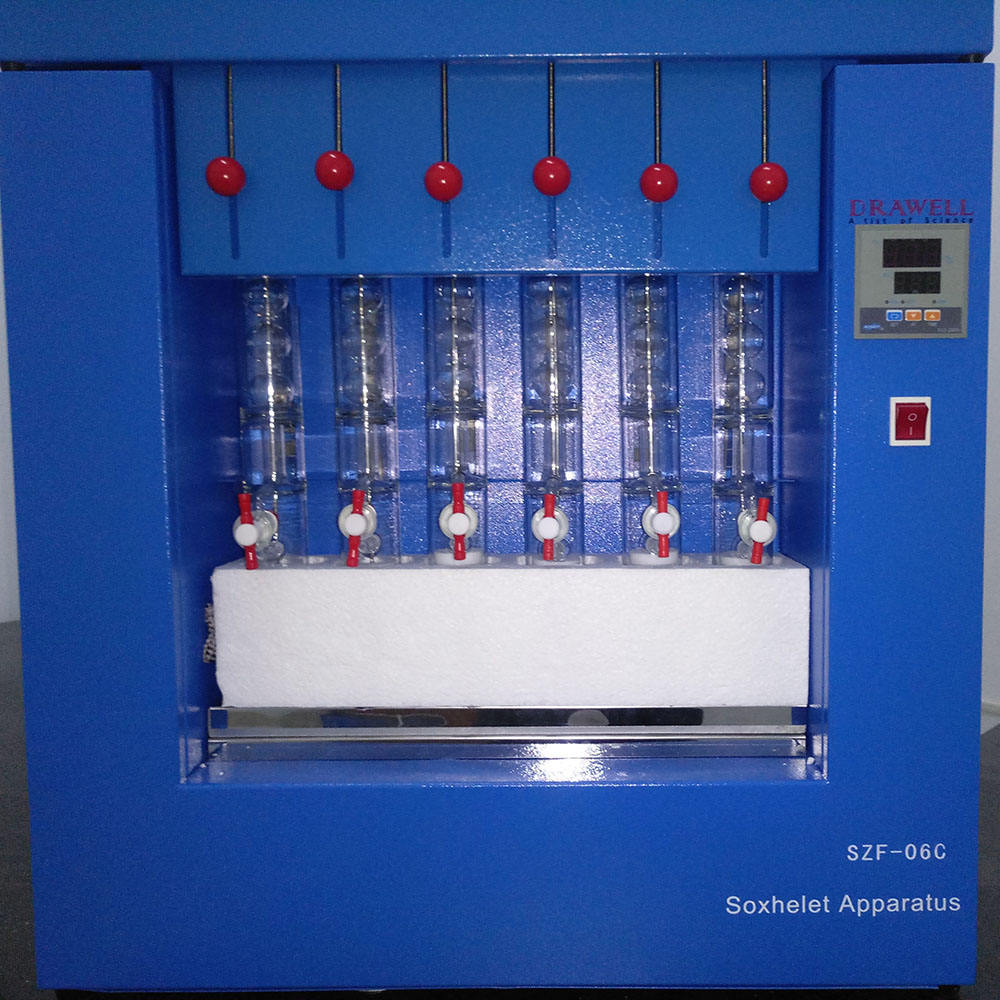

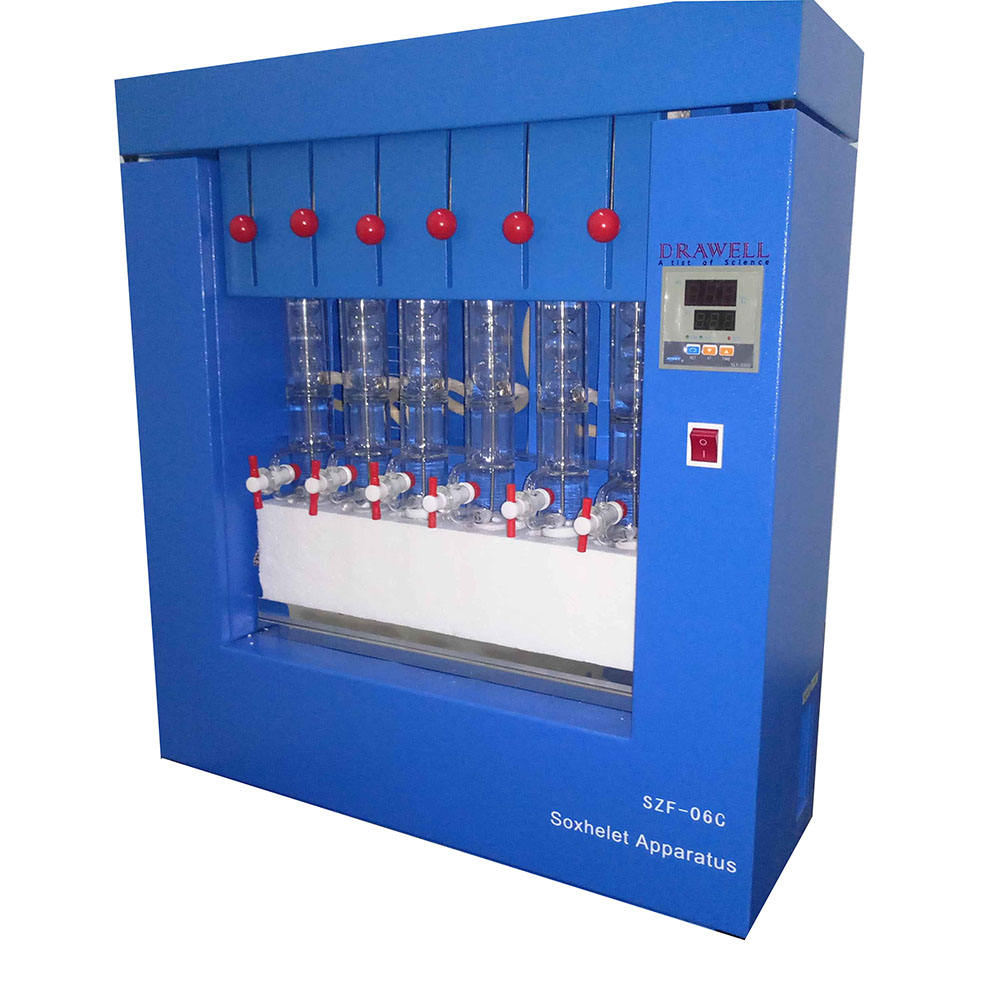

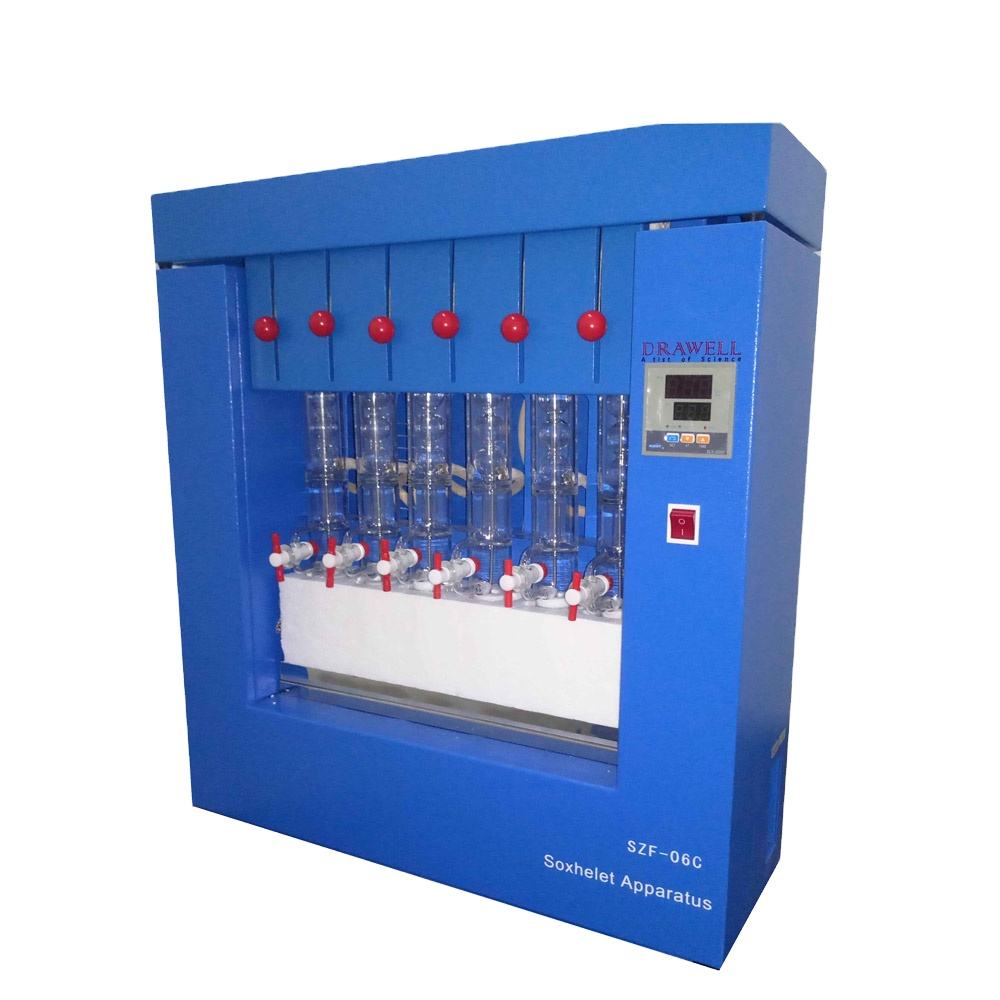

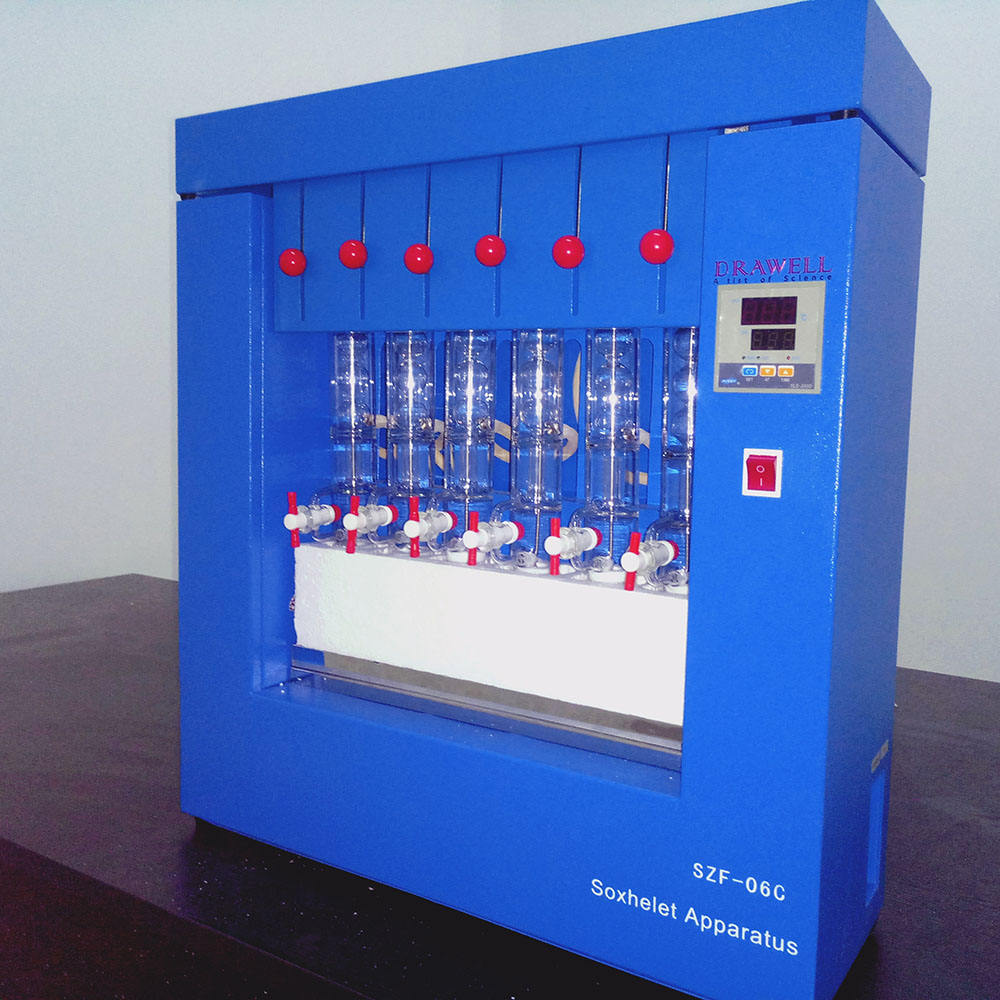

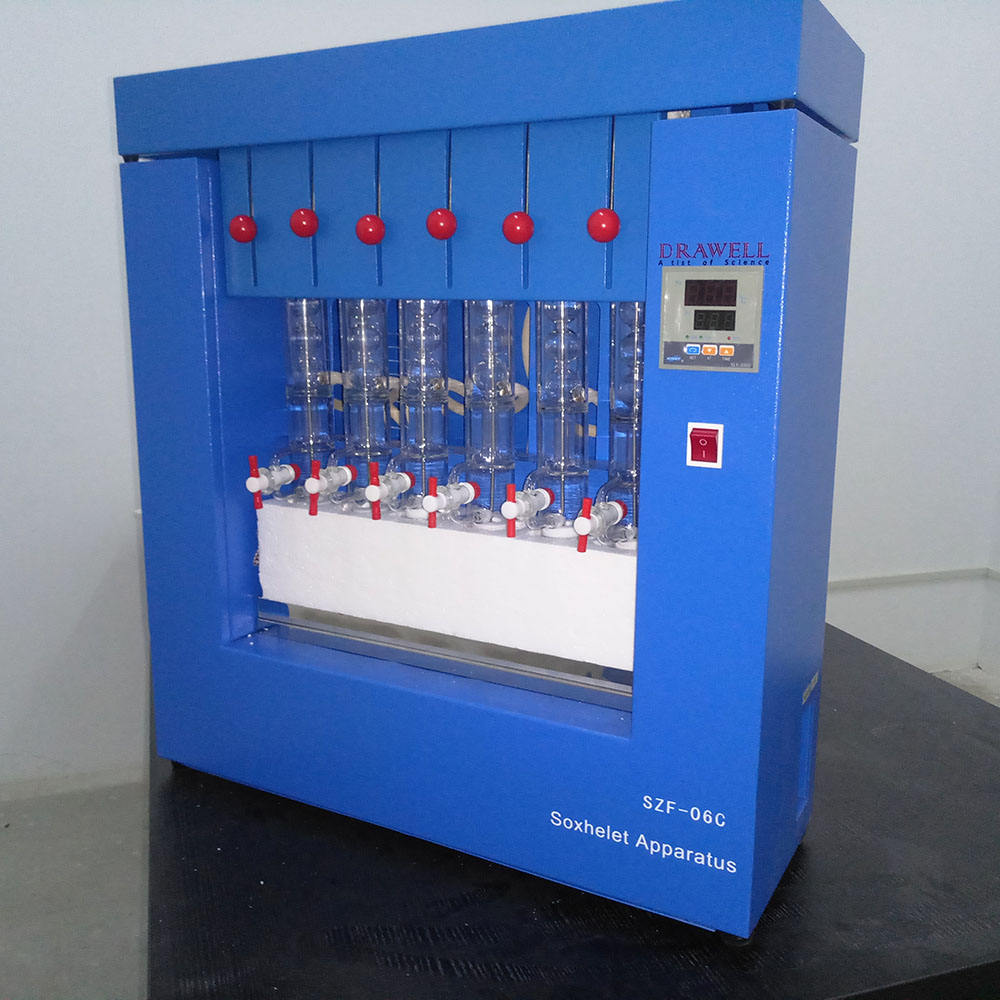

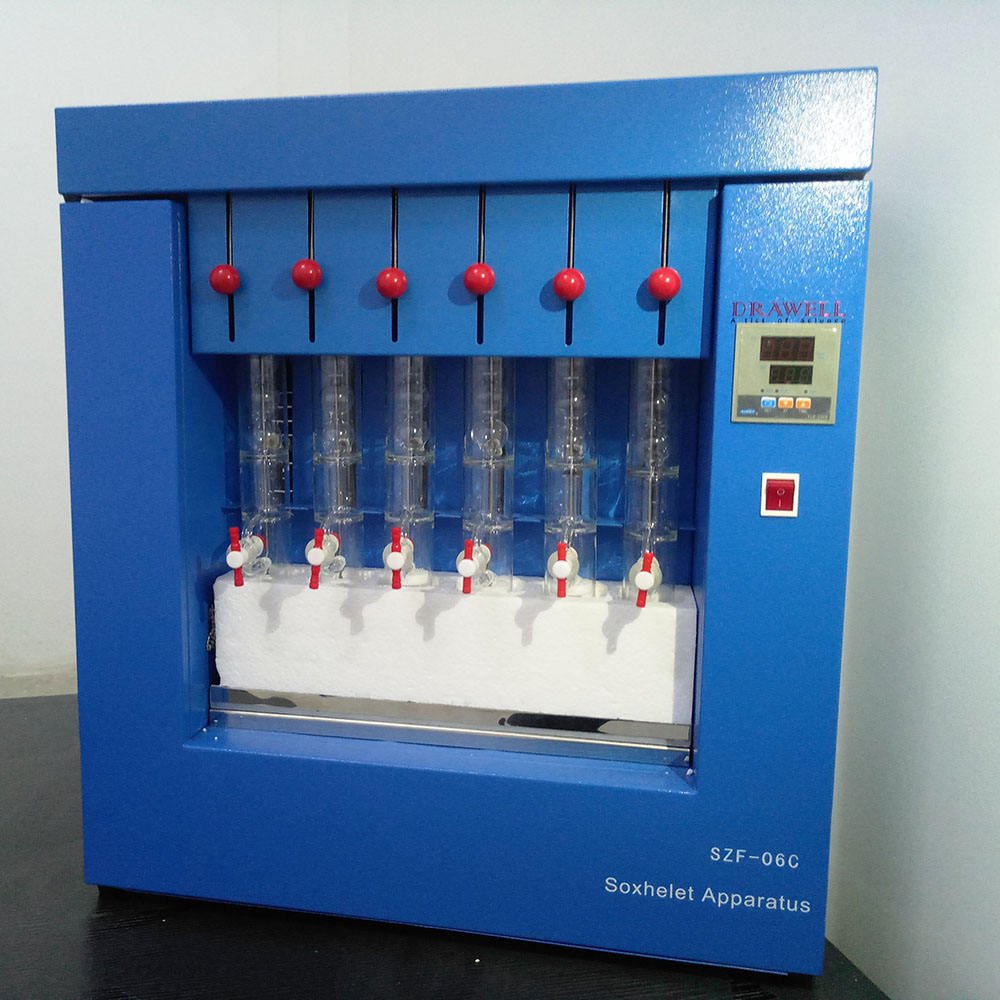

Soxhlet Apparatus DW-MSZF-M06C

DW-MSZF-M06C-type fat tester is the introduction of the company's new fat determination technology, combined with the USA's national conditions development. SZF-06C fat measuring instrument design is reasonable, stable performance, high precision, effort and effort, save time, the results meet the national standards, require the import of similar products and performance indicators. The DWSZF06C fat analyzer is the food, grease, feed and other industries to determine the ideal fat equipment.

The DWSZF06C-type fat detector mainly used heating extraction, solvent recovery and cooling three elements. The DWSZF06C fat analyzer can be based on the boiling point of the reagent and the ambient temperature to operate, adjust the heating temperature, the extraction process of repeated soaking extraction of samples, so as to achieve rapid determination of purpose.

The DWSZF06C fat analyser is developed in accordance with optimized Soxhlet extraction principle, its assaying process:immerse and extract, elute, recover solvent, more efficient than using traditional Soxhlet extraction method.

This fat analyser takes full-closed electric hot plate to heat, bringing wider temperature scope and applied areas, can be applied in industries like agricultural, foodstuff, environmental and industrial, etc.

Features
A. Optimized Soxhlet extraction method, more efficient extraction;
B. Full-closed electric hot plate to heat, bringing wider temperature scope;
C. Solvent for extraction can be recovered and used repeatedly.

Technical parameters
1. Measurement range: cereals, feedstuff, oily seed and various fatty products with 0.5%-60% oil

2. Sample number: 6/batch
3. Solvent recovery: ≥80%
4. Power: 220V, 50Hz
5. Heating power: 300W
6. Temp.range: ambient+5°C-200°C
7. Dimensions: 550x320x626
8. Weight: 23kg
