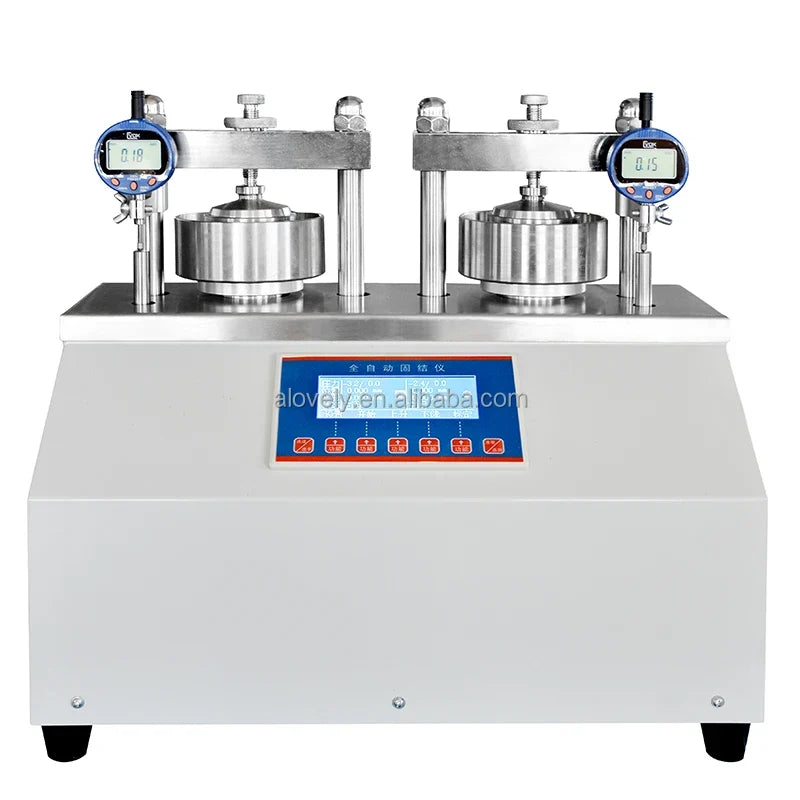

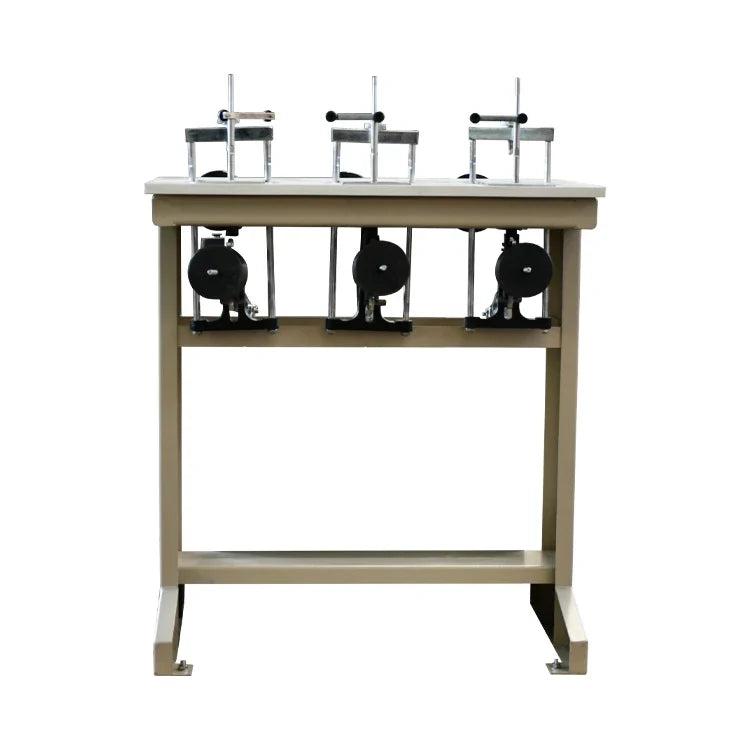

Soil Medium Pressure Consolidation Instrument

Our Soil Medium Pressure Consolidation Instrument offers precise testing capabilities for soil samples in laboratory settings. With load pressure ranging from 12.5Kpa to 1600Kpa for 30cm² and 12.5Kpa to 800Kpa for 50cm², it ensures accurate results across various pressure levels. The instrument features consolidation containers with options for 1, 2, or 3 beams, allowing flexibility in testing configurations. The specimen area accommodates both 30cm² and 50cm² samples.

Packing List Includes:

• Pre-loaded weights: 25.5g (3 pieces), Preload weights: 51g (3 pieces)
• Weights: 5.1kg (18 pieces), 2.55kg (9 pieces), 1.275kg (3 pieces), 0.637kg (3 pieces), 0.319kg (6 pieces)
• 30 cm² Soil Sample Module: 3 pieces
• Container parts: Big pressure plate (3 pieces), Small pressure plate (3 pieces), Big ring knife (3 pieces), Small ring knife (3 pieces), Large guide ring (3 pieces), Small guide ring (3 pieces), Big guard ring (3 pieces), Small guard ring (3 pieces), Water storage tank (3 pieces), Permeable stone (φ83) (3 pieces), Permeable stone (φ79.8) (3 pieces), Permeable stone (φ61.8) (3 pieces), Watch clip fixture (3 pieces), Watch clip support rod (3 pieces)
• Manual operation: 1 piece, Quality certificate: 1 piece, Packing list: 1 piece, Square ruler: 1 piece

This instrument ensures efficient and accurate consolidation testing, making it an essential tool for soil analysis in laboratory environments.
