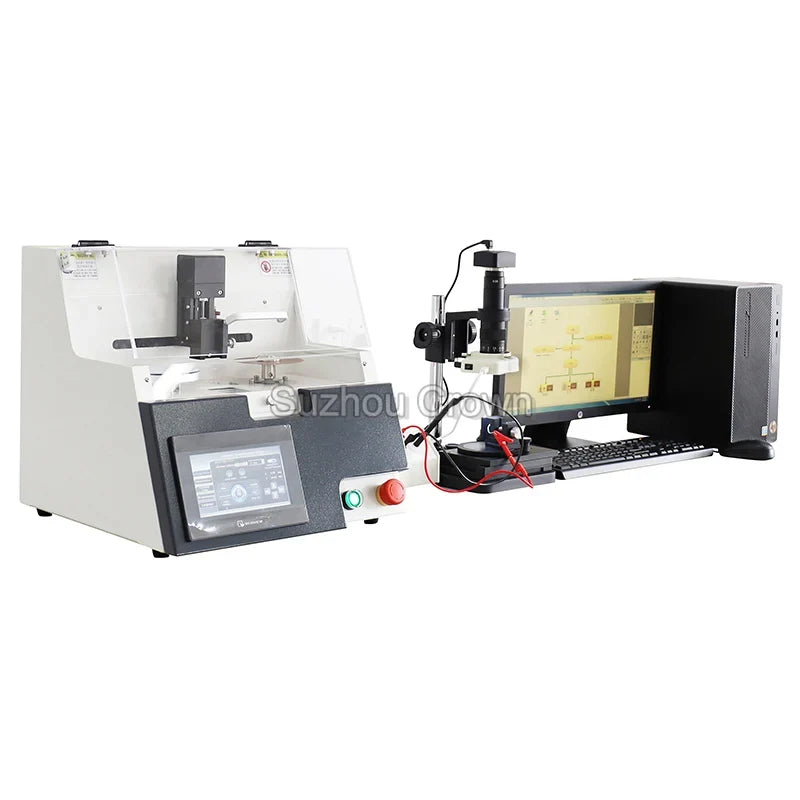

Introducing the MSE044 Full Automatic High-Definition Cable Wire Terminal Cross Section Analyzer System:

 The MSE044 is an advanced terminal section analyzer meticulously crafted for the wire harness industry, offering unparalleled precision and analysis capabilities. Comprising cutting-edge components such as a terminal cutting and grinding machine, alongside Japan-imported optical sampling, corrosion, cleaning, and sub-picture analyzer, it ensures comprehensive examination and analysis.

Specifications:

• Model: WL-SE4
• Terminal Section Analysis: Japan-imported segmentless zoom optical system
• Total Video Magnification: 30~312X
• Applicable Wire Range: 0.01~50mm²
• Power Supply: 100~240VAC, 50/60Hz
• Imaging System: Japanese industrial HD video system (3 million)
• Cut Blade Specifications: Dia.110X0.5mm (Germany imported, delicate and durable)
• Abrasive Sandpaper: 1200#
• Standard Fixture: 0.01~50mm²
• Special-Grade High-Precision Reference Ruler: 0.01/10mm
• Terminal Corrosion: Liquid cleaning (completed in 5 seconds)
• Lighting Source: Adjustable all-white LED lighting device
• Dimensions: W500XD350XH350mm

Features:

• Fully Automatic Precision: Integrated automatic cutting and grinding equipment with German motor ensures seamless operation.
• Superior Control: X-axis and Y-axis stroke control facilitated by Japanese Panasonic servo motor.
• Advanced Control System: Utilizes Japanese Mitsubishi PLC controller for enhanced efficiency and reliability.
• Professional Software: Equipped with professional terminal section analysis software featuring encryption lock and CD for secure data management.

Experience unmatched accuracy and efficiency in cable wire terminal analysis with the MSE044 Full Automatic High-Definition Cross Section Analyzer System.
