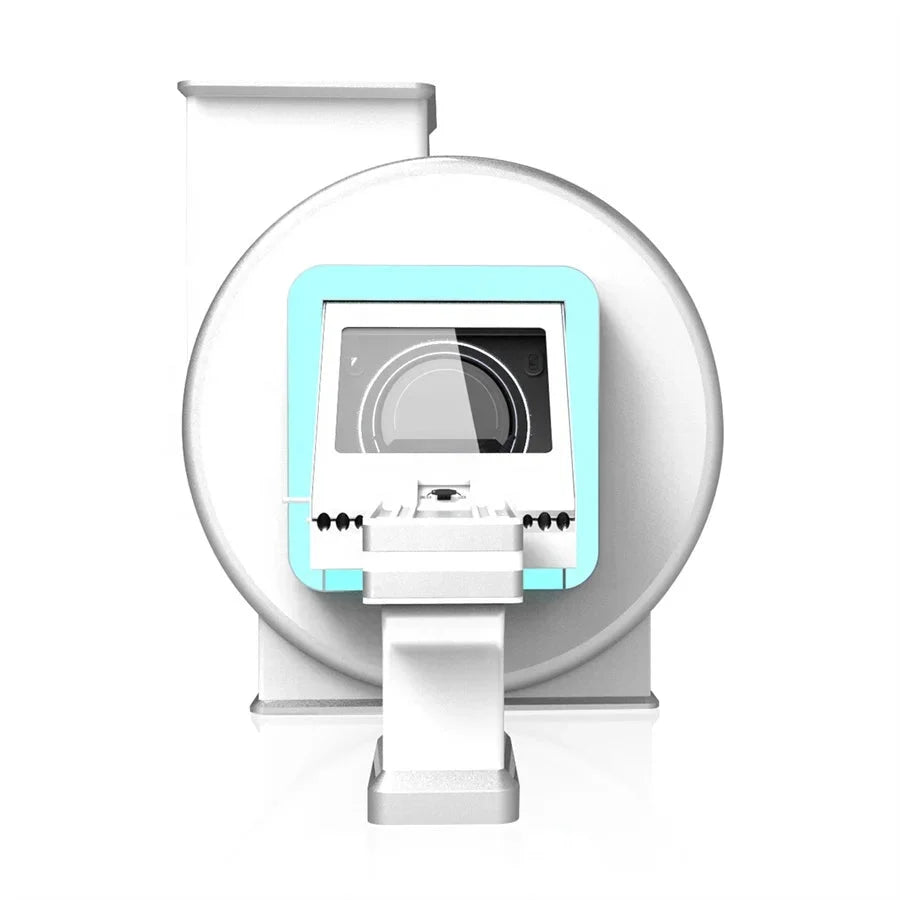

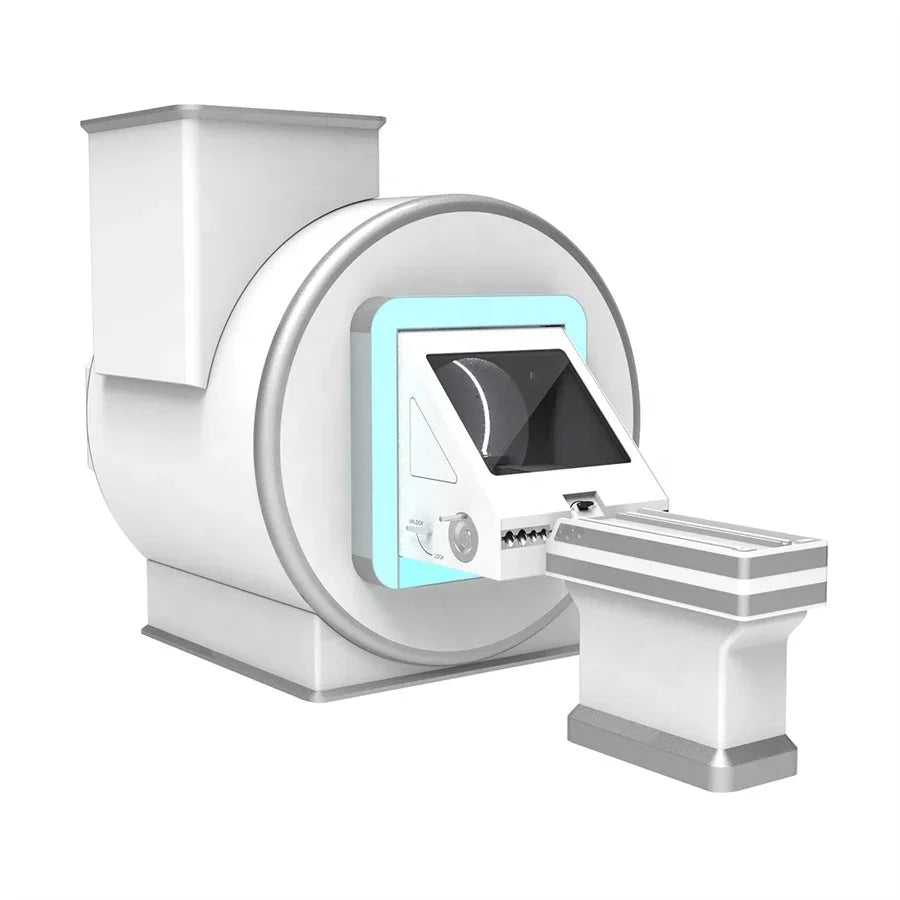

• Veterinary MRI Machine 1.5T Magnetic Resonance Imaging
  • 1
  • 2
  • 3
  • 4
  • 5

This model 1.5T provides not only conventional pulse sequences and clinical diagnosis functions, but also provides advanced functional applications, for instance, 3D angiography and water imaging.

Specifications

Magnet center field
1.5T
Magnet Shimmed uniformity
≤2.0ppm @ 45cm DSV VRMS
Magnet size
（length*width*height）
1570 mm× 1866 mm ×
2272 mm
Magnet Clear bore diameter
850 mm
Magnet weight
<4.0 ton
Cold head
RDE-412D4
RF noise attenuation
>90dB
Couch route
2215mm
Couch max load
90kg
Couch height
800mm
Gradient Amplitude
35mT/m
Gradient Slew Rate
135mT/m/ms
Gradient Peak voltage
940V
Gradient Peak current
630A
minimum slice thickness
0.1mm
Resonant Frequency
63.86MHZ
RFPA power
20KW
Spectrometer Input frequency range
15-64MHz
Maximum RF receiver channels
8
RF Maximum Matrix
1024x1024

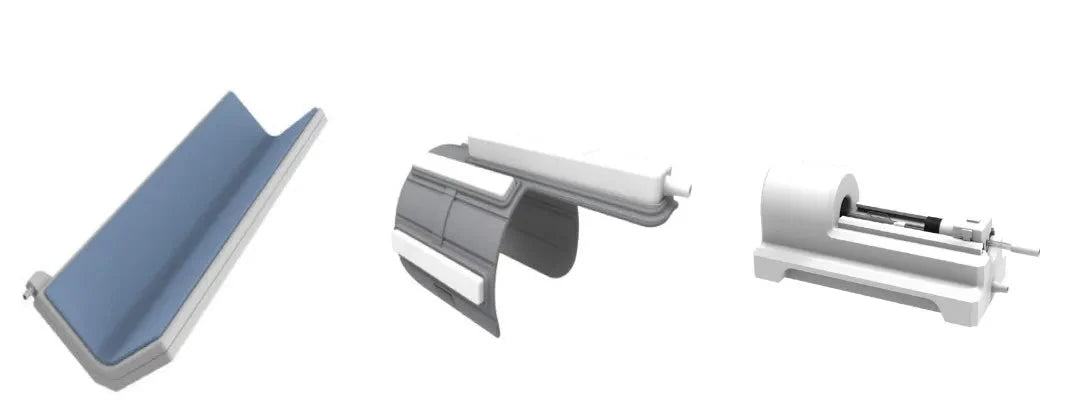

V shape longer Spine coil
16 channel

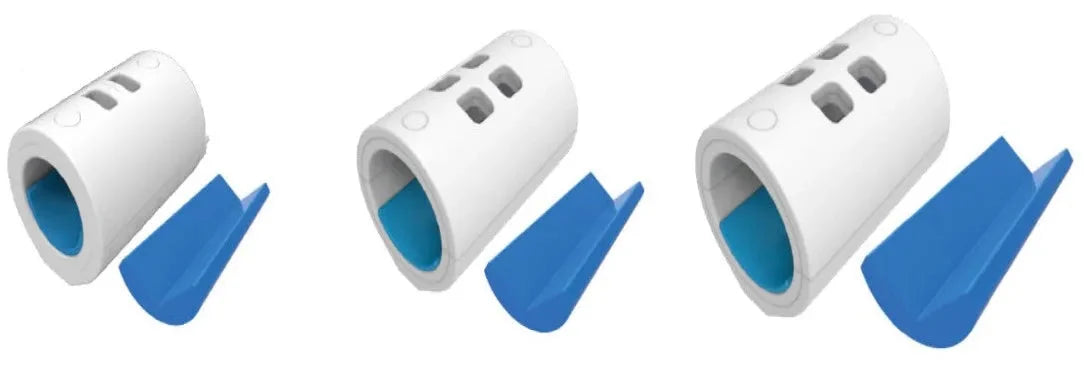

Large plus head coil
24 channel
Large head coil
16 channel
  • Field Strength : 1.5T
  • Magnet Shimmed uniformity : ≤2.0ppm @ 45cm DSV VRMS
  • Magnet size (length*width*height) : 1570 mm* 1866 mm * 2272 mm
  • Magnet Clear bore diameter : 850 mm
  • Magnet weight : <4.0 ton
  • RF noise attenuation : >90dB
  • Maximum RF receiver channels : 8
  • Gradient Amplitude : 35mT/m
  • Gradient Slew Rate : 135mT/m/ms
  • Resonant Frequency : 63.86MHZ

MEUBON

Veterinary MRI Machine 1.5T Magnetic Resonance Imaging System X Ray MRI Machine

$410,000.00 USD
$520,000.00 USD $410,000.00 USD
