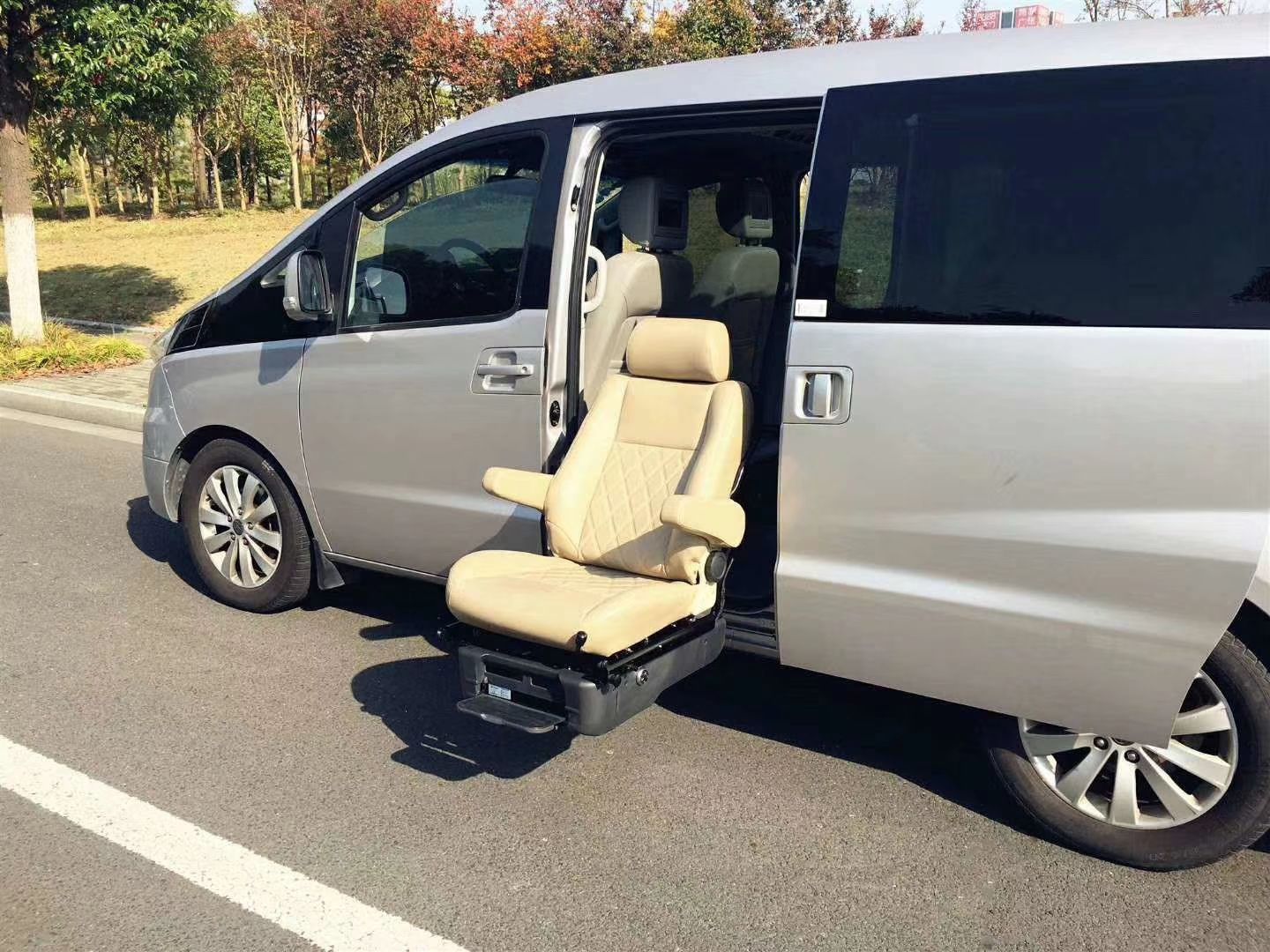

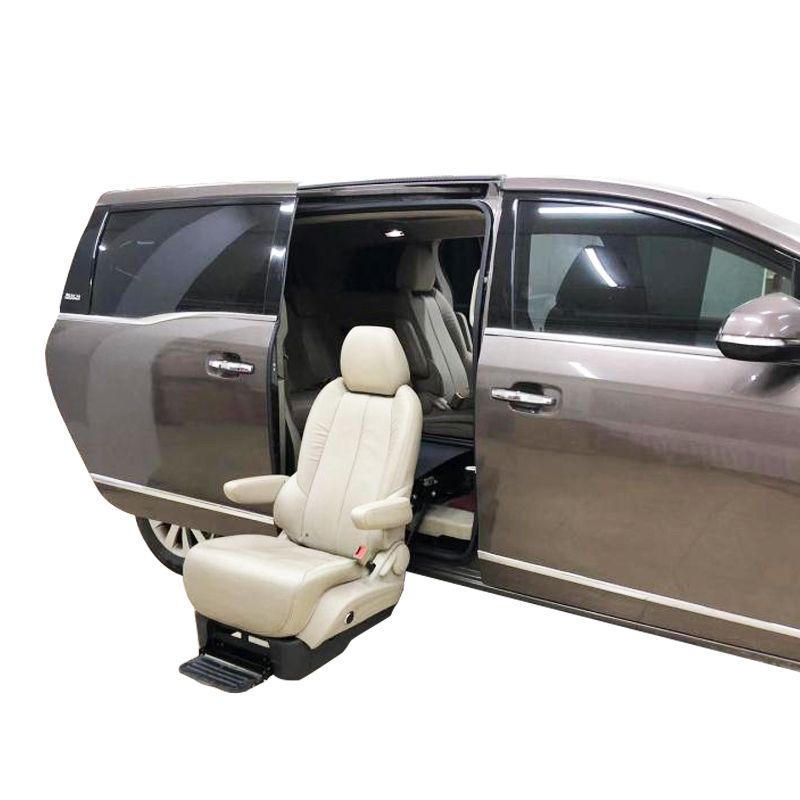

Wheel Chair Lift I Car Mobile Chair for Docking With Wheelchairs I Allowing Passengers To Transfer Directly From The Seat I for disabled.

This is electric and can move out from the car and can move up and down. Delivery time of 2 weeks

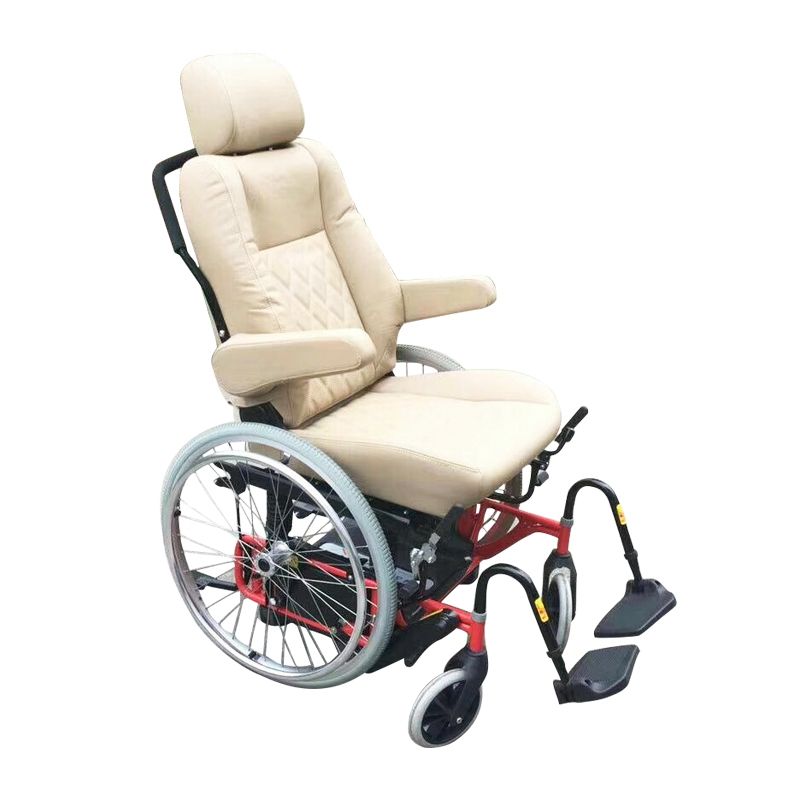

This complete set includes the mechanism, docking wheelchair and seat,

Operating voltage: 12V DC	10 degree
Fall time: 24-30S	6cm
Rated Power: 120W	73cm
Rise time: 24-30S	Can move laterally
Rotation time:4-6S	Sanyuan lithium battery
Maximum load: 300lbs	6km/h
Forward time: 16-20S	6cm
Safety Class: IP67	adjustable
Backward time: 16-20S	10cm
Rotation Angle:0-113 degree	52cm
Maximum lowered height:395mm	52cm
Full maximum operating current:17A	42cm
Static sleep current:less than or equal to 0.3ma	42cmX42cm
Noise:less than 70dm during opertion	10" omnidirection wheel
Time required to work one cycle	about 2 minutes.
Packing size:	Electric version:128*80*60cm Manual version:128*80*40cm

Robot Power chair electric mobility wheelchair

Operating voltage:12V DC
Fall time:24-30S
Rated Power:120W
Rise time:24-30S
Rotation time:4-6S
Maximum load:150kg
Forward time:16-20S
Safety Class:IP67
Backward time: 16-20S
Rotation Angle: 0-113 degree
Maximum lowered height: 395mm
Full maximum operating current:17A
Static sleep current: less than or equal to 0.3ma
Noise: less than 70dm during operation
Time required to work one cycle: about 2 minutes.
Packing size:
Electric version: 128*80*60cm
Manual version: 128*80*40cm

Easy to install by 2 people

Available in 2 models: Choose between the model that turns to the left and the model that turns to the right

MINIMUM INSTALLATION SPACE REQUIREMENTS

PRODUCT MANUAL SHOWING INSTALLATION STEPS

https://drive.google.com/file/d/15UcAqHnWCOxPWtYWPSPPJiFvmaTDiXOB/view?usp=sharing

https://drive.google.com/file/d/15UcAqHnWCOxPWtYWPSPPJiFvmaTDiXOB/view?usp=sharing
